- 18 -
A
A
STEP 7
STEP 8
FUEL TANK
M6 x 25 BOLT : 1 pc.
(EX13, 17, 21)
M8 x 25 BOLT : 2 pcs.
(EX27)
M6 NUT : 2 pcs.
(EX13,17,21)
M8 NUT : 2 pcs.
(EX27)
M8 NUT : 2 pcs.
GASKET
(It has two faces)
M6 x 10
TAPPING BOLT : 2 pcs.
M6 x 8
FLANGE BOLT : 1 pc.
M8 x 12
BOLT : 1 pc.
MUFFLER
Seal the exhaust port with
adhesive tape or plug it with cloth.
FUEL DRAIN

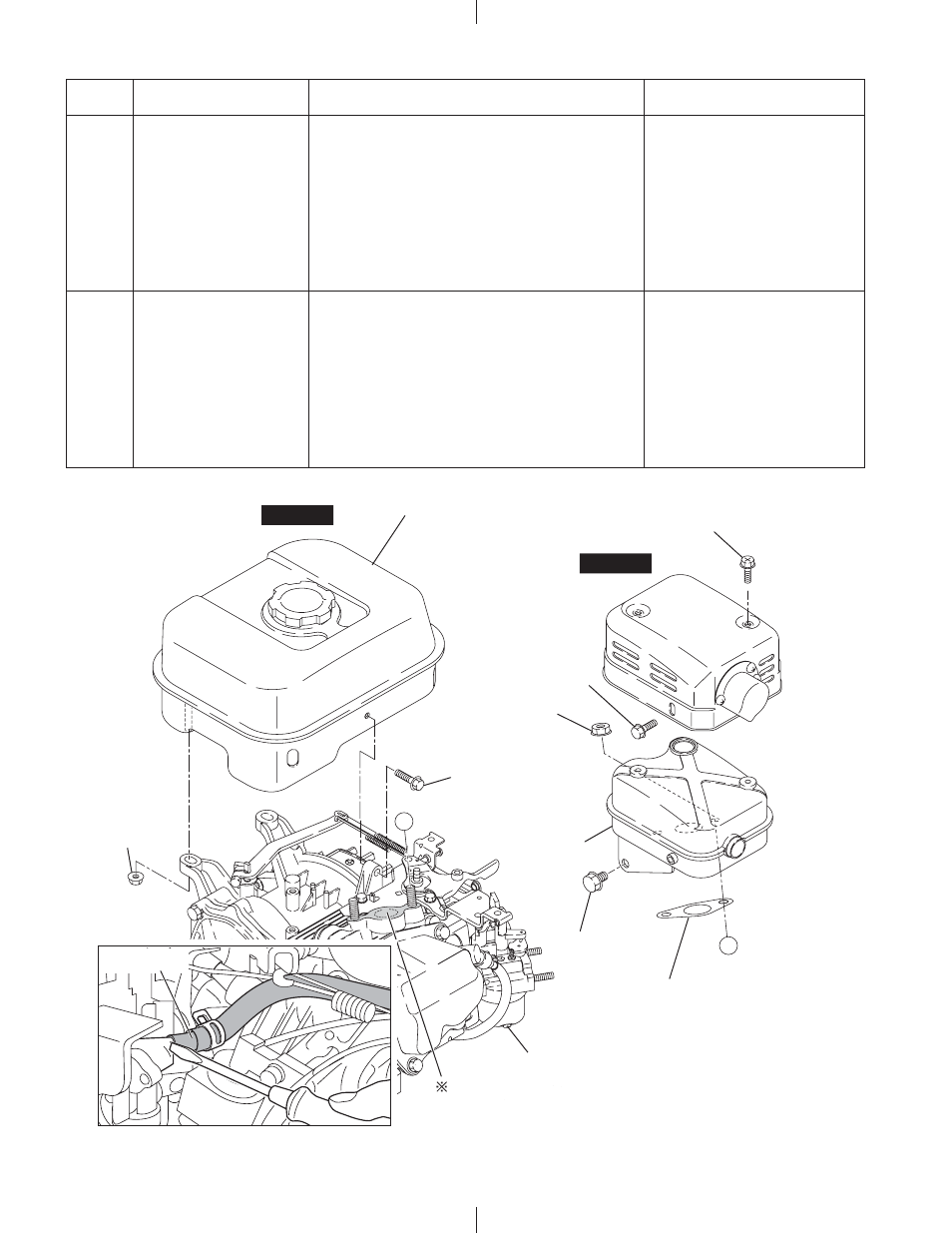

Fig.5-5
Step Parts to remove Remarks and procedures Fasteners
7
Fuel tank (1) Drain fuel from the carburetor drain.
(2) Remove the fuel tank mounting nuts
and bolts from the crankcase.
(3) Disconnect the fuel pipe from the carburetor.
(See Fig. 5-6)
(4) Remove the fuel tank from the crankcase.
10 (12) mm spanner or box
wrench
M6 nut : 2 pcs.
(Models EX13, 17 and 21)
M8 nut : 2 pcs. (Model EX 27)
M6 × 25mm : 1 pc.
(Models EX 13, 17 and 21)
M8 × 25mm : 2 pcs.
(Model EX27)
8
Muffler and Muffler cover (1) Remove the muffler cover from the
muffler.
(2) Remove the muffler from the cylinder
head. Take care not to lose the gasket.
Take care not to cut your hand with the
muffler gasket.
Seal the exhaust port with adhesive
tape or plug it with cloth to prevent nuts
and other objects from falling inside.
12mm box spanner
10mm box spanner or
spanner
M6 tapping bolt : 2 pcs.
M6 × 8mm : 1 pc.
M8 nut : 2 pcs.
M8 × 12mm : 1 pc.
FUEL PIPE
Fig.5-6
