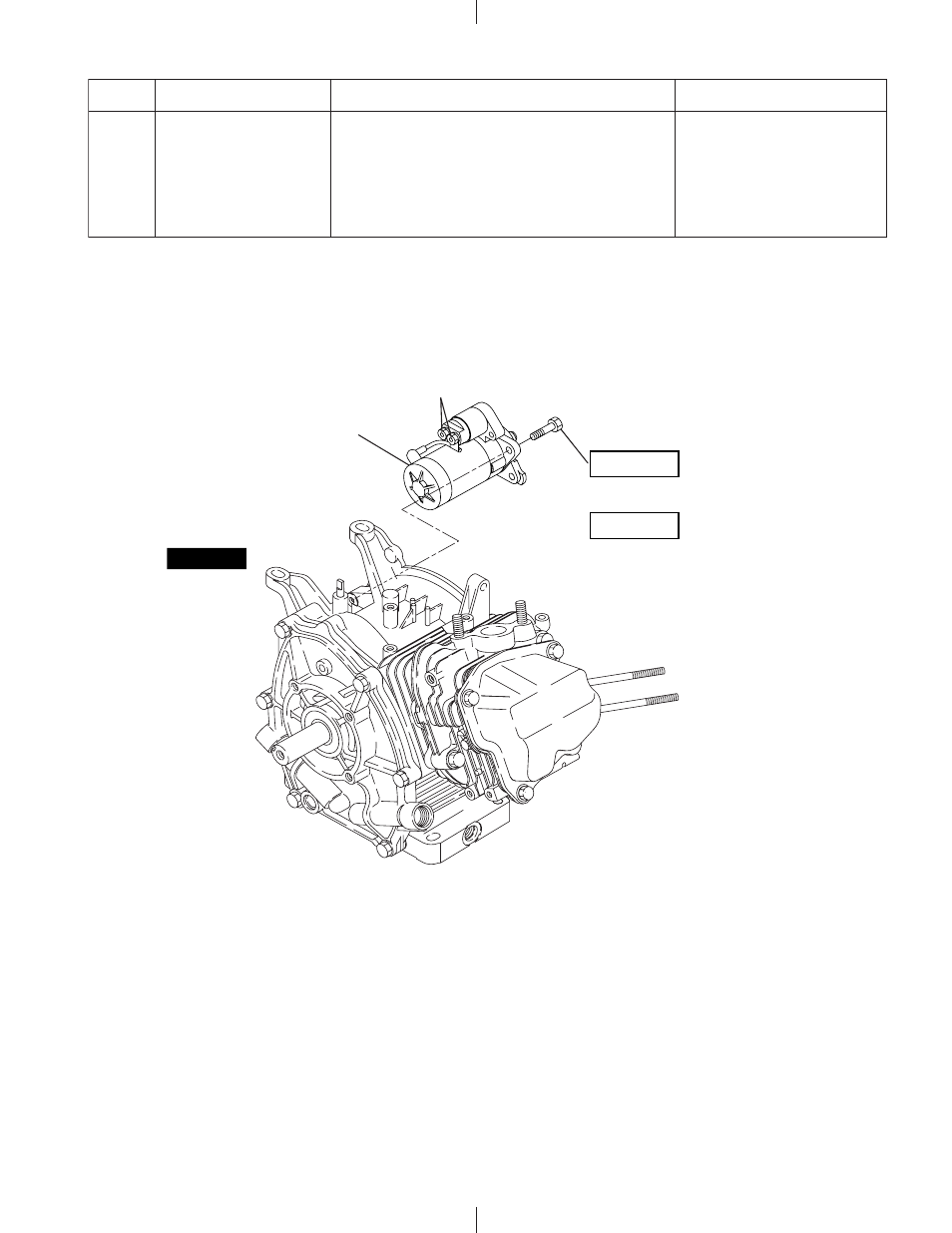

ELECTRIC STARTER
(option)
STEP 15 UPPER SIDE
M6 x 30 FLANGE BOLT : 1 pc.
DOWN SIDE
M6 x 20 FLANGE BOLT : 1 pc.
EX17, 21
EX27
M8 x 28 BOLT : 2 pcs.
M6 NUT : 1 pc. (EX17,21)
M8 NUT : 1 pc. (EX27)
Step Parts to remove Remarks and procedures Fasteners
15
Electric starter (option)
Control box,
Diode rectifier,
Magnetic switch
(1) Disconnect the grounding cable from battery.
(2) Disconnect the wire leading from the key
switch ST terminal to the magnetic switch.
(3) Disconnect the wire that connects the
positive terminal of the battery to the
magnetic switch.
(4) Remove the electric starter.
12 mm box spanner
M8 nuts
10 mm box spanner
12 mm box spanner
Fig. 5-8
