- 38 -

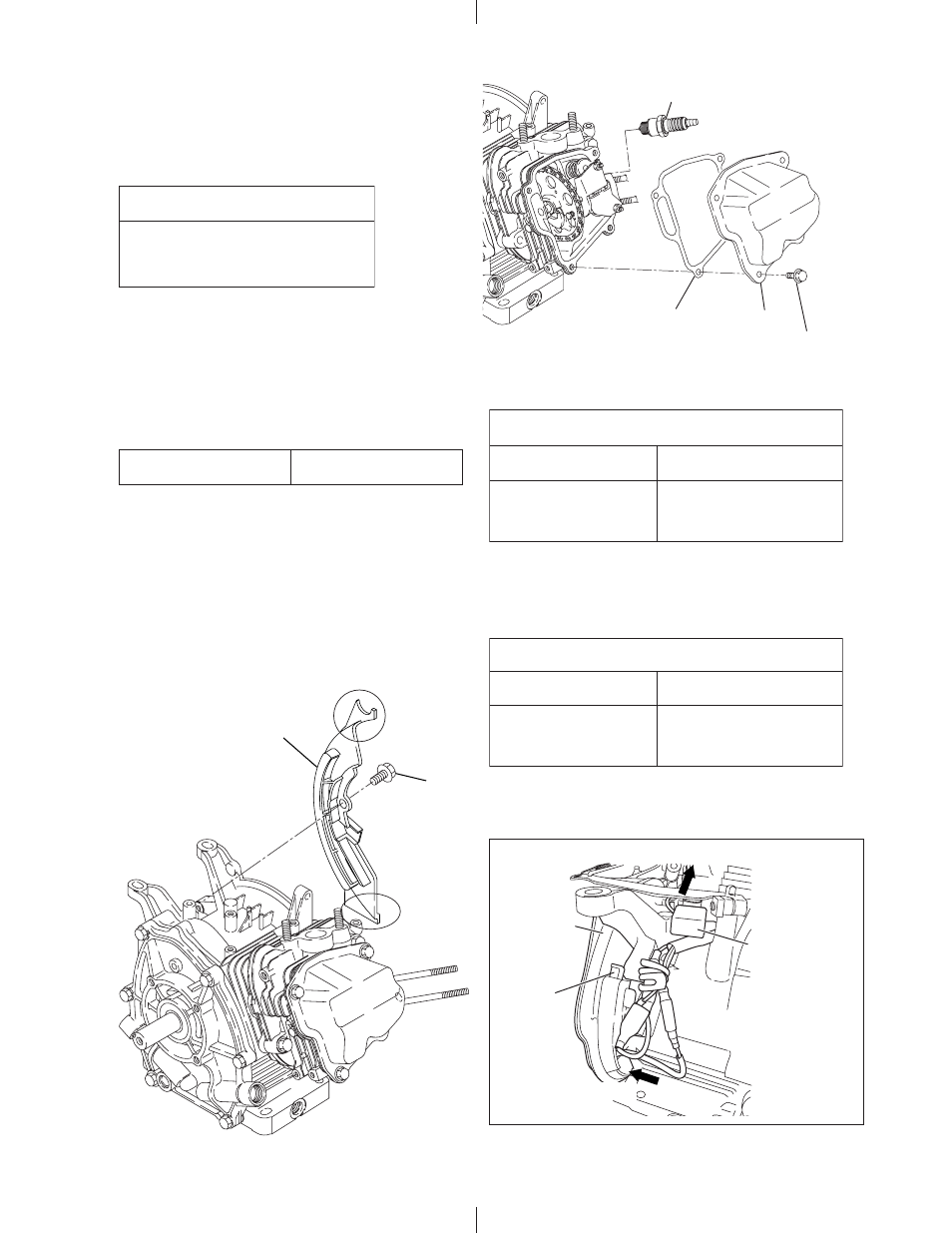

(16) ROCKER COVER
Replace the gasket with a new one, and mount
the rocker cover.
M6 ✕ 12mm flange bolt : 4 pcs.
SPARK PLUG
ROCKER
COVER
M6 x 12
BOLT : 4 pcs.
GASKET
(ROCKER COVER)
(18) BAFFLE 1 (CASE)
Align the top and bottom of the baffle 1 (case)
with the crankcase and mount it with the bolts.
[Model without electric starter]
M6 ✕ 12 mm bolt : 1 pc.
(Models EX13, 17 and 21)
M8 ✕ 12 mm bolt : 1 pc. (Model EX27)
BAFFLE 1 (CASE)
M6 x 12 FLANGE BOLT : 1 pc.
(EX13, 17, 21)
M8 x 12 FLANGE BOLT : 1 pc.
(EX27)
UPPER
LOWER
Fig. 5-48
Fig. 5-49b Fig. 5-49a
TO IGNITION COIL
TO OIL SENSOR
HOOK
BAFFLE 1
(CASE)
OIL SENSOR
UNIT
Tightening torque
New spark plug Re-tightening torque
12 . 0 - 15.0 N m
(120 - 150 kgf cm)
(8.7 - 10.8 ft lb.)
23.0 - 27.0 N m
(230 - 270 kgf cm)
(16.6 - 19.5 ft lb.)
(17) SPARK PLUG
Remove any carbon deposits from the spark plug
and inspect the electrode for damage before
mounting. Replace with a new one, if necessary.
Spark plug: NGK BR-6HS
or CHAMPION RL86C
Tightening torque
5.0 - 7.0 N m
( 50 - 70 kgf cm)
(3.6 - 5.1 ft lb.)
Electrode gap 0.6 mm - 0.7 mm
[Model with electric starter]
Mount the electric starter and the charging coil,
referring to the illustrations of disassembly.
Tightening torque
EX13, 17, 21 EX27
4.0 N m
(40 kgf cm)
(2.9 ft lb.)
12.0 N m
(120 kgf cm)
(8.7 ft lb.)
EX13, 17, 21
