- 63 -

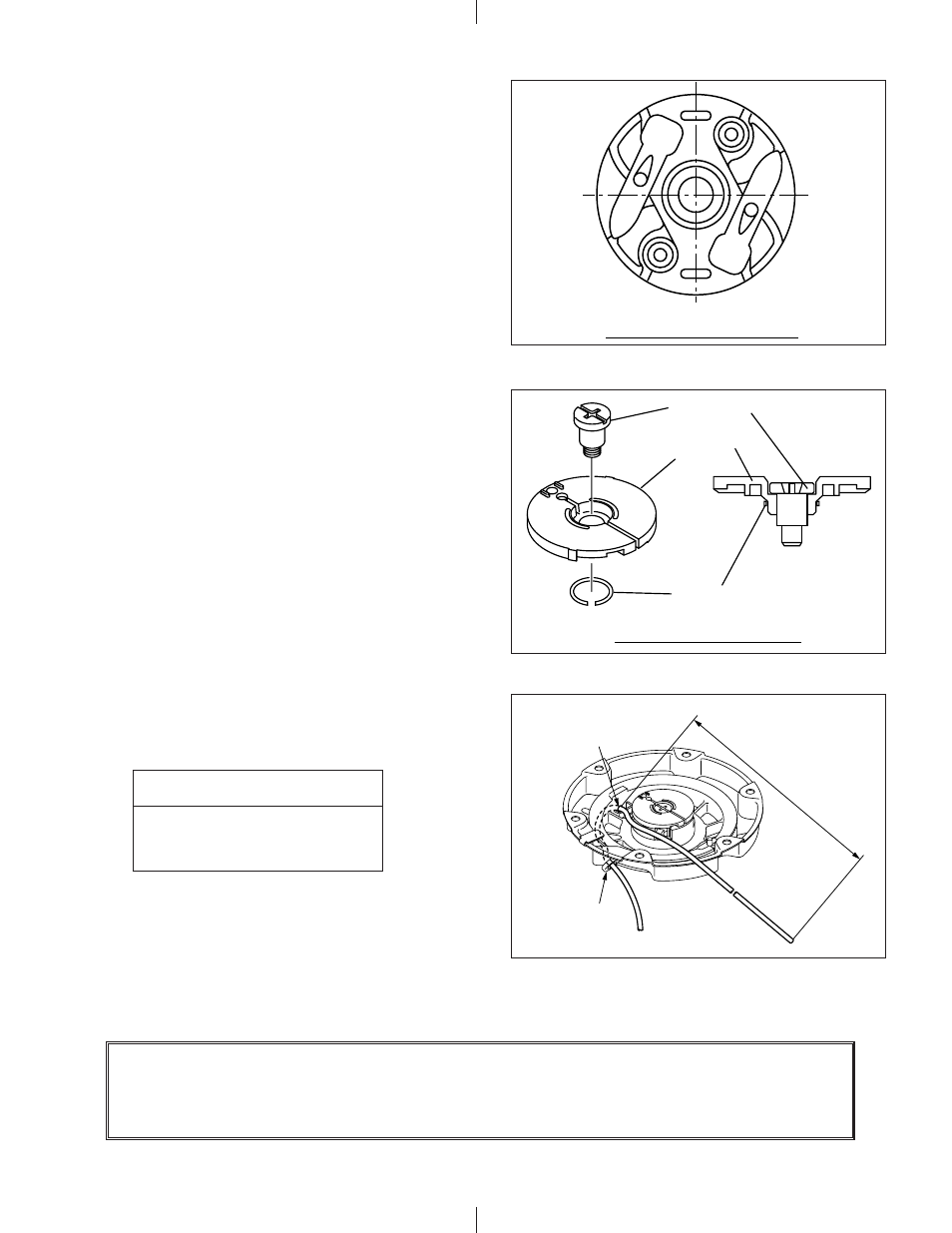

(2) Mount the components
-1 Mount the ratchet into the reel. (Fig. 13-5)
-2 Mount the ratchet guide assembly, taking care
not to move the ratchet. (Fig.13-6)
(3) Tighten the set screw
-1 Hold the ratchet guide gently by your hand to
prevent it from rotating, then tighten the set
screw.
Fig. 13-5
Fig. 13-6
Fig. 13-7
NOTE:
The spring force reaches its maximum value when the reel is wound up. Be careful not to drop
it or release your grip on it suddenly.
THE RATCHET SHOULD
BE IN THE CLOSED POSITION
Ratchet guide sub-assembly
Set screw
Ratchet
guide
Friction spring
APPR
O
X.
200 MM
FR
OM THE
REEL
ROPE HOLE IN REEL
ROPE GUIDE
(4) Tension the reel spring
-1 Grip the case and turn the reel 6 times
counterclockwise.
-2 Fix the reel so that the rope hole in the reel is
aligned with the rope guide. (Fig. 13-7)
Tightening torque(M6)
5.5 N m
(55 kgf cm)
(4.0 ft lb.)
