- 39 -
Fig. 5-51
Air gap
Fig. 5-52
Fig. 5-53
FLYWHEEL
STARTING PULLEY
IGNITION COIL
THICKNESS
GAUGE
To STOP
SWITCH

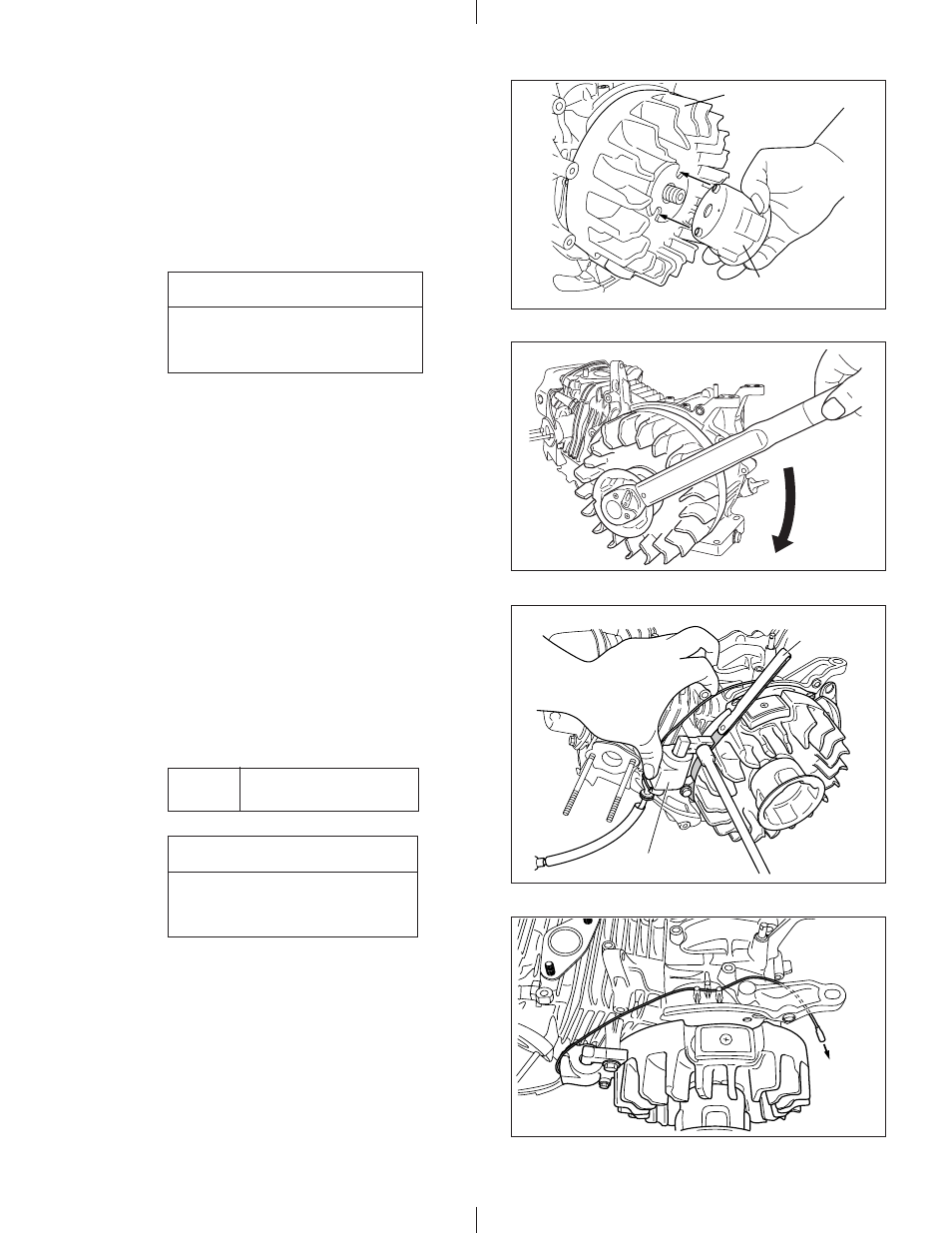

(19) FLYWHEEL AND STARTING PULLEY
NOTE: When mounting the flywheel, be sure to
wipe off any oil on the tapered portion of
the crankshaft and flywheel.
Mount the flywheel on the crankshaft. (Tighten
the flywheel together with the starting pulley.)
(20) IGNITION COIL
When mounting the ignition coil, insert a
thickness gauge between the ignition coil and
the flywheel to check the air gap.
Tightening torque
7.0 - 9.0 N m
(70 - 90 kgf cm)
(5.1 - 6.5 ft lb.)
Align the 2 bosses of starting pulley with the depression of flywheel.
Tightening torque
59.0 - 64.0 N m
( 590 - 640 kgf cm)
( 42.7 - 46.3 ft lb.)
M14 nut : 1 pc. (EX13, 17, 21)
M18 nut : 1 pc. (EX27)
M6 ✕ 25 bolt and washer : 2pcs.
0.3 0.5 mm
Fig. 5-50
