Rugged Cams ELX DVR 16 Channel - Manual (Page 39)

Basic Configuration ELX16-240
Rugged CCTV.
2003.09.06 (v 1.0) 39

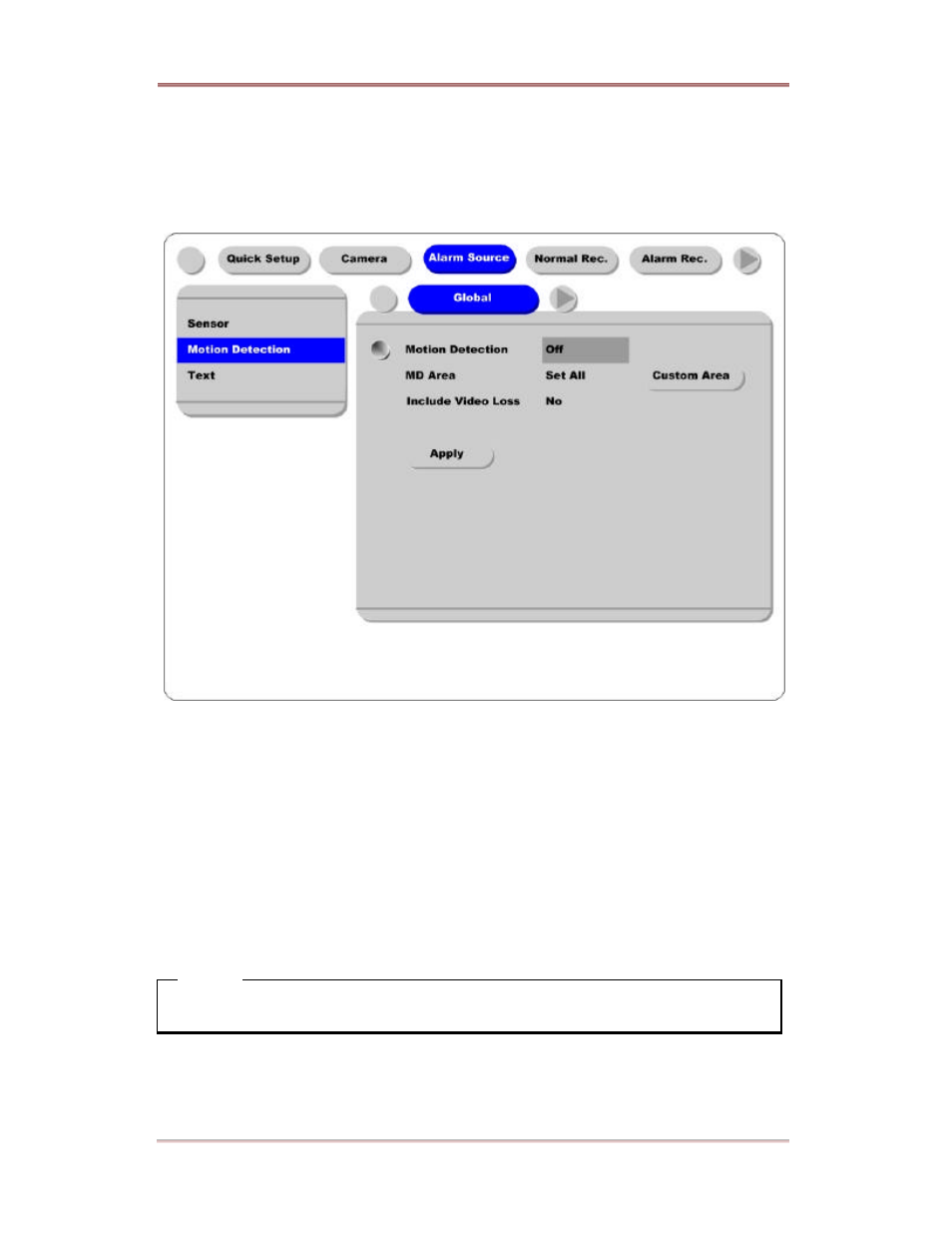

5.4.2. Setting Motion Detection
It is for setingt each MD condition per channel. “Global ” means to set all channels by same MD
condition. And it is possible to set each channel seperately
Motion Detection
Choose from among four sensitivity conditions; Off, Low, Standard, and High .
MD Area
Customize the MD area among 64 sectors (8 sectors x 8 sectors).
Default value is “Select All”. Select “Custom Area” to move to setting page.
Include Video Loss
Set whether no video situation is set as MD or not.
After setting it as “Global”, press the “Apply ” button certainly.
