WatchIN Installation Manual 7
TRIPLE EOL Jumpers
TRIPLE
EOL Jumpers
J4
TAMPER EOL
J5 ALARM EOL
1K
2.2
K
4.
7K
6.
8K
5.6K
FAULT/AM EOL
12K
J6
SHORT
AM/FAULT J25

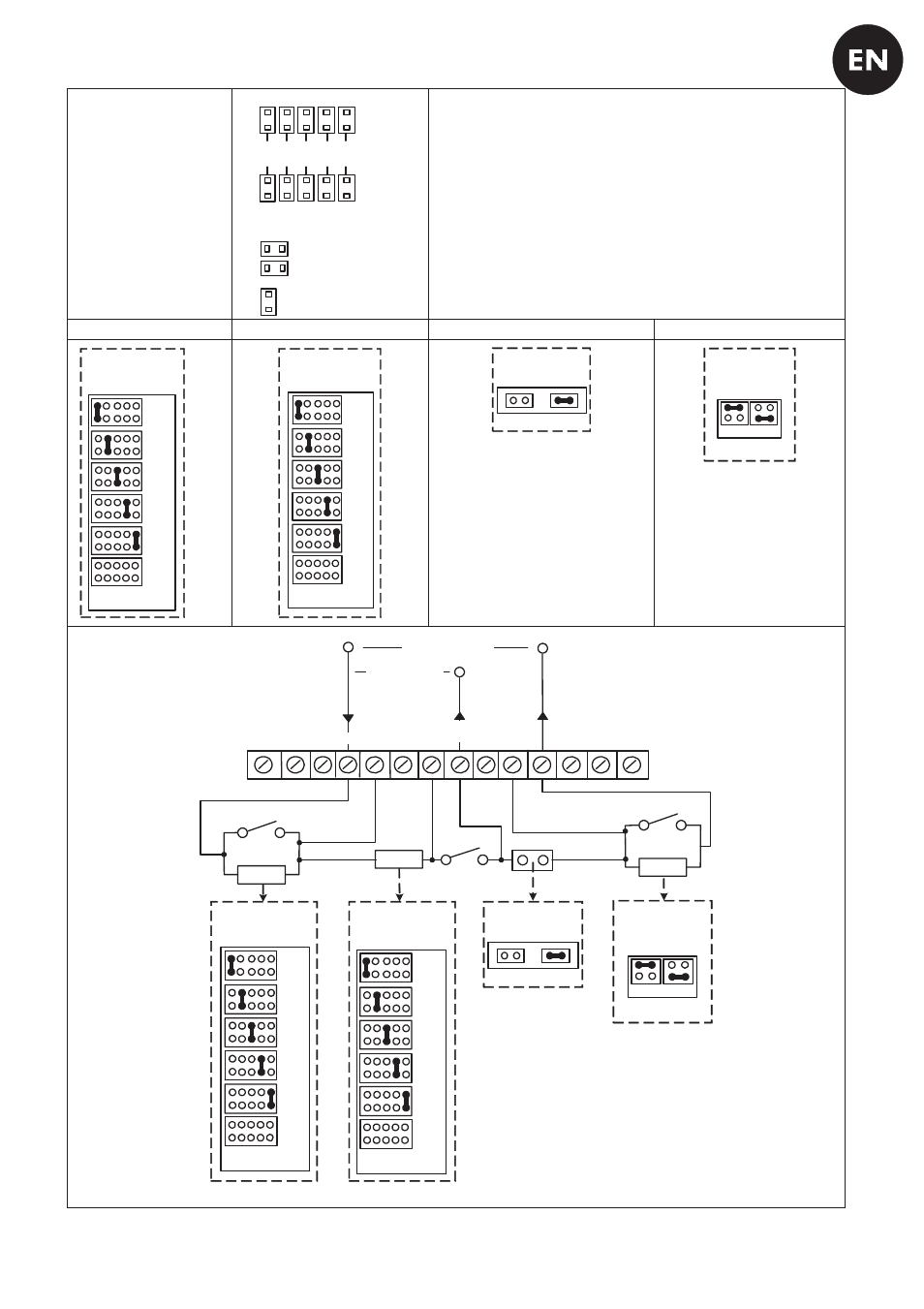

Jumpers J4 and J5 allow the selection of Tamper
and Alarm resistance (1K, 2.2K, 4.7K, 5.6K, 6.8K)
according to the control panel (see Figure 6
below). Jumper J6 allows the selection of 12K for
Fault/Anti-Mask.
Follow the terminal block connection diagram in
Figure 6 when connecting the detector to a
Double/Triple End Of Line (DEOL/TEOL) Zone.
TAMPER EOL (J4) ALARM EOL (J5) Short AM/FAULT (J25) FAULT/AM EOL (J6)
No Resistor
(Factory Settings)
TAMPER EOL
JUMPERS
J4
1K
2.2K
4.7K
5.6K
6.8K
ALARM EOL
JUMPERS
No Resistor
(Factory Settings)
J5
1K
2.2K
4.7K
5.6K
6.8K
AM / FAULT
J25
Open Short
FAULT / AM EOL
JUMPERS
J6
Open Short
12K
FAULT/AM
+
- SET/
UNSET
AM N.O. N.C.
FREE
(GRN)
LED
ENBL TEST
ALARM EOL
JUMPERS
No Resistor
(Factory Settings)
ALARM
N . C .
TAMPER
SHORT AM/FAULT
FREE
(YEL)
COM
TAMPER
J5
FAULT / AM EOL
JUMPERS
J6
AM / FAULT
J25
1K
2.2K
4.7K
5.6K
6.8K
-
PANEL TEOL
PANEL DEOL
No Resistor
(Factory Settings)
TAMPER EOL
JUMPERS
J4
1K
2.2K
4.7K
5.6K
6.8K
Open Short
Open Short
12K
Figure 6
