MCZ Vivo 90 Pellet Comfort Air - Manual (Page 61)

6 5
4
8
7
9
12
11
10
2
3
1
59

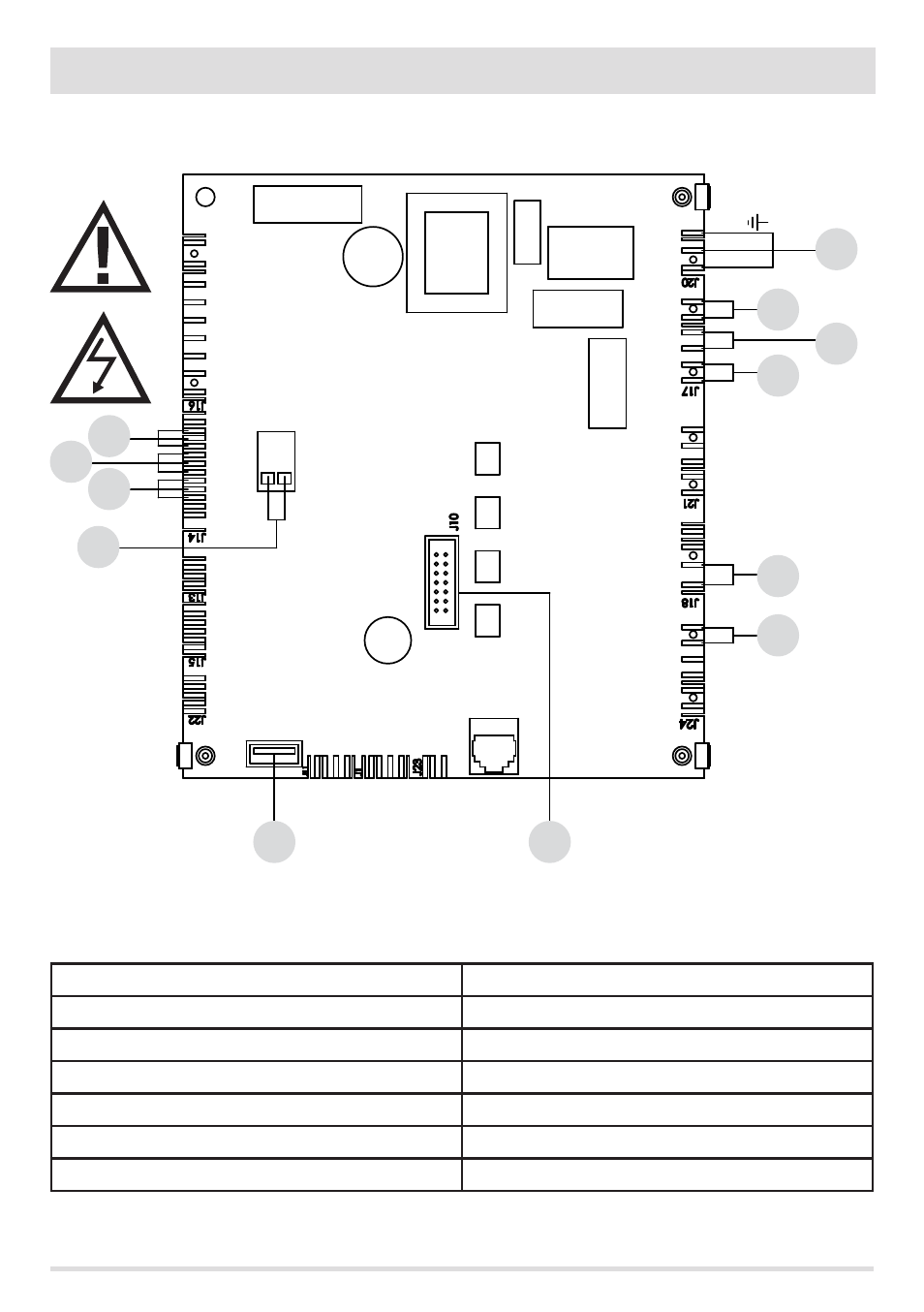

16-CIRCUIT BOARD
Technical Dept. - All rights reserved - Reproduction is prohibited
MOTHERBOARD WIRING KEY
1. SMOKE FAN ENCODER 8. AIR FAN
2. GEAR MOTOR ENCODER 9. GEAR MOTOR
3. PRESSURE TRANSDUCER 10. SMOKE FAN
4. SMOKE TEMPERATURE PROBE 11. SPARK PLUG
5. SOFTWARE UPDATE 12. SWITCH
6. EMERGENCY PANEL
7. HOPPER OVERLOAD CUT-OUT
PLEASE NOTE The electrical wiring of individual components is fitted with pre-wired connectors of different sizes.
