22
7-INSTALLATION AND ASSEMBLY
ELECTRIC FAN CONNECTION
The kit supplied includes 2 silicone cables, 2.5 metre long for wiring the fans. Start by wiring as follows:
In position 2 connect the yellow/green wire while in position 1 connect the remaining two wires (the colour sequence does not matter as
the fans have no polarisation) (fig.7).
The terminal board where the fan wires are to be connected is screwed into the structure upright, at the top (fig.8).
Connect the two earthing cables of the fans in the first terminal on the left (T). Connect the remaining two cables from the LEFT fan with
the terminals wired with the white cables (B). Connect the remaining two cables from the RIGHT fan with the terminals wired with the
purple cables (V).
IMPORTANT!
The cable for connecting the fan is in silicone material to withstand high temperatures. In the event of cable extension
(over 2.5 m) and at every opportunity, ensure the cable does go in contact with hot parts of the monoblock, and with
the air connecting pipes inside the cladding or structure.

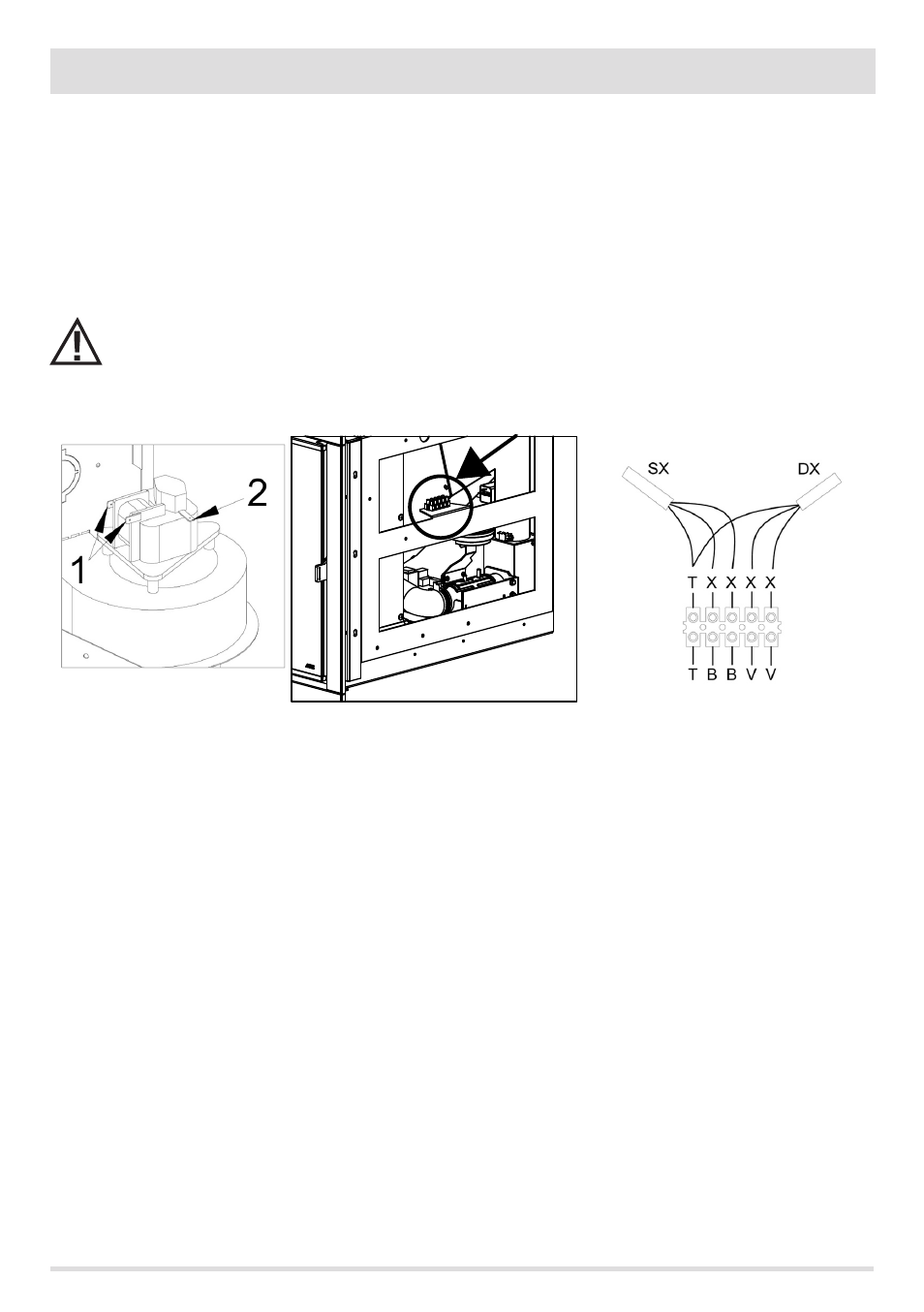

FIGURE 7– POSITION OF FAN TERMINALS FIGURE 8– POSITION OF CABLES ON THE TERMINAL
BOARD
FIGURE 7– POSITION OF TERMINAL BOARD
