7-INSTALLATION AND ASSEMBLY
HOOD VENTILATION GRILLES
Foreword
Ventilation grilles must be provided depending on how the product is placed.
In the event it is inserted on existing cladding, the existing ventilation grilles of the cladding will be used.
If used as a new installation, the company recommends installing the ventilation grilles as described in the following paragraph.
It is in any case important to arrange for two openings, one at the top and the other at the bottom of the cladding.
HOOD VENTILATION GRILLES FOR NEW CLADDING
It is obligatory to install the manufacturer’s hood ventilation grilles or grilles that assure the same features and the same
air passage section.
The company is not liable for any damage to the structure or to the electric components caused by failure to comply with
this warning.
The structure reaches high temperatures and it is indispensable to always assure continuous and efficient ventilation inside the cladding.
This practice - as well as assuring perfect operation of the product - makes it possible to recover some of the structure’s heat, which would
be lost if it remained inside the cladding.

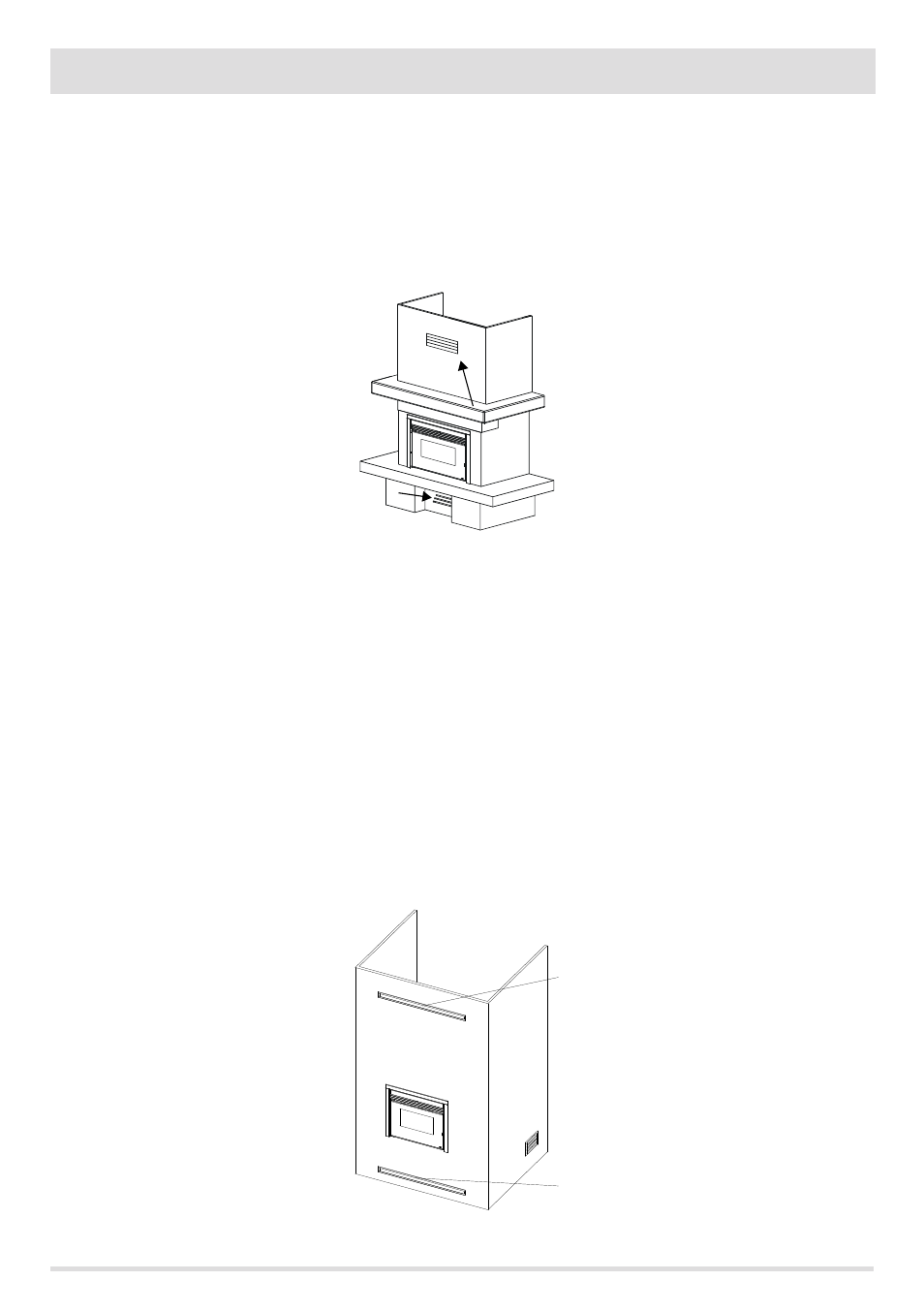

2 “Blade” nozzles are supplied by the company, to be installed one at the top and one at the bottom of the cladding.
HOT CONVECTION AIR
ROOM AIR INLET
HOT CONVECTION AIR: THE HOT AIR THAT ACCUMULATES INSIDE
THE CLADDING MUST BE LET OUT.
ROOM AIR INLET: TO RECYCLE AIR AN OPENING MUST BE
ARRANGED AT THE BOTTOM OF THE CLADDING TO ENHANCE
CONVECTION.
SUPPLIED “BLADE” GRILLE
