7-INSTALLATION AND ASSEMBLY
FASTENING TO THE BASE OF THE INSERT
It is obligatory to anchor the product to a plane during annual maintenance operations by the authorised technician, the combustion
chamber may be extracted from its seat with the aid of two retractable guides.

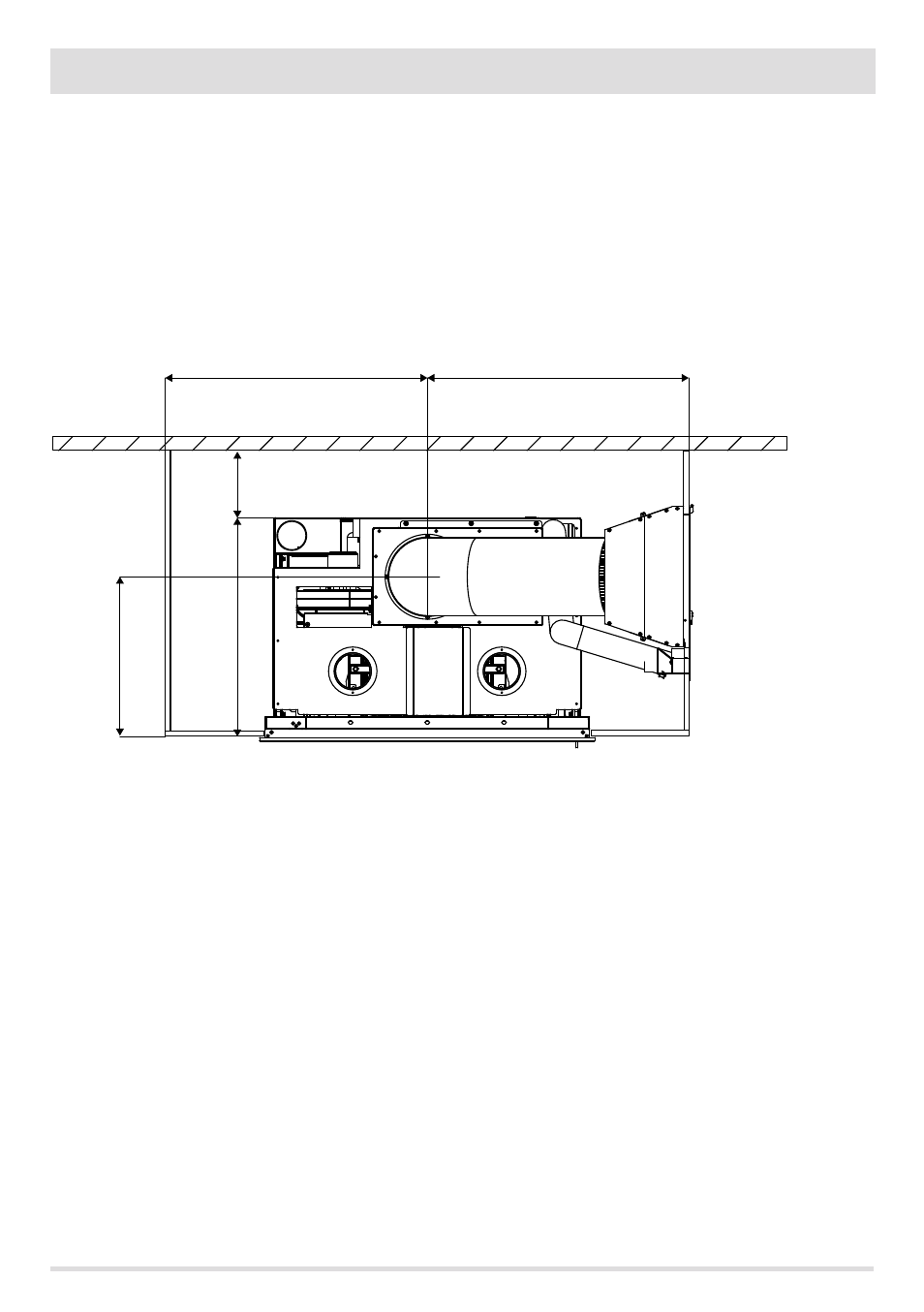

Proceed as follows to fasten the insert:
• The depth of the insert from the inside of the frame is 590 mm.
• The safety distance from combustible material is 50 mm
• If you wish to install the product with front pellet loading, just leave min. 50 mm at the rear of the product (safety distance in case of
flammable material), whereas if you install side pellet loading it is still possible to leave 50 mm at the rear, but in this case both the
combustion air and loading pipes must be tilted. This is because the hatch cannot be fixed to the wall otherwise.
Proceed as follows regardless of the loading option (front or side):
• Remove the compensation frame C (see special paragraph).
• Unscrew the screws at the bottom (B) under the frame.
• At this stage extract the machine and separate it from its support.
• Position support (D) at a distance of 50 mm MIN. from the wall.
• With the screws supplied fasten the support (D) to the base (E) ensuring the support anchoring plane (D) and the wall are
perpendicular.
• Reposition the machine on the support (D), reinsert the screws (B) ensuring the machine and the support are properly fastened in
order to assure proper operation of the product.
It is very important to ensure you have complied with the positioning measurements of the product’s platform, paying
the utmost attention to ensure the support anchoring plane and the wall are perpendicular. Also ensure the screws secure
the machine to the support.
