7-INSTALLATION AND ASSEMBLY
Technical Dept. - All rights reserved - Reproduction is prohibited
ASSEMBLING THE COMPENSATION FRAME
After completing the cladding and/or the plasterboard section, fit the shimming frame.
This frame has the purpose of finishing and covering the gap that is created between the product’s metal structure and the cladding.

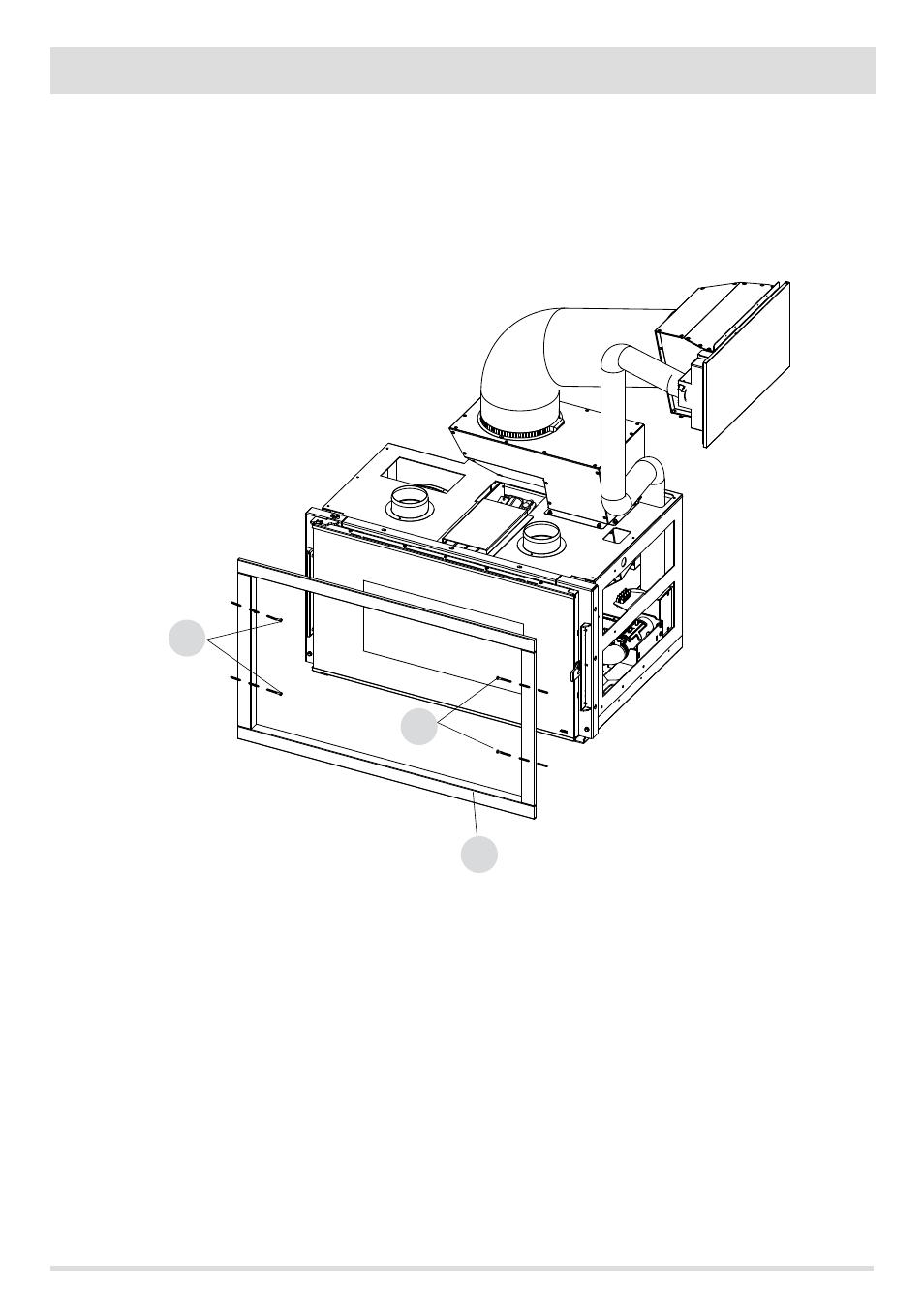

The frame “C” is assembled simply by opening the door of the product, fitting in the frame as shown in the figure and fastening it to the
side uprights of the structure, inside the door profile, with the four screws “B” supplied.
C = FRAME
B = SCREW
