14-CLEANING
Technical Dept. - All rights reserved - Reproduction is prohibited
After cleaning inside the hearth, extract the movable part of the insert and remove the three plates “T1”/”T2”/”T3”. Remove the ash
and soot accumulated inside the heat exchanger with the aid of the brush. If necessary also replace gaskets “G1”/”G2”/”G3” which are
underneath caps “T1”/”T2”/”T3”.
Attention!!!! Place a container to collect combustion residues on the floor or near the caps.

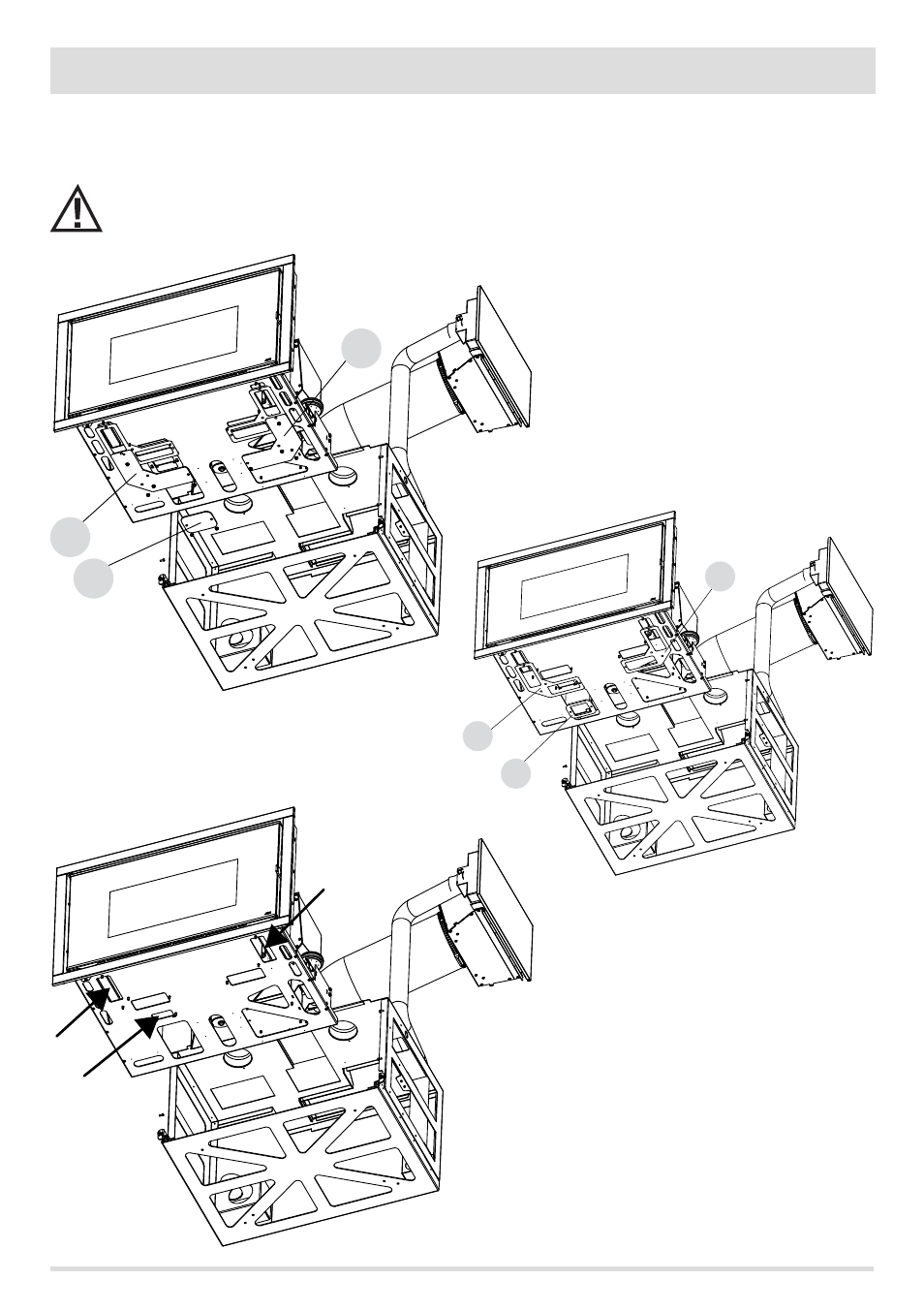

REMOVAL OF CAPS
REMOVAL OF GASKETS
HOLES FOR CLEANING THE EXCHANGER
