5-33 MLC 52 Series MediaLink Controllers • Serial Communication

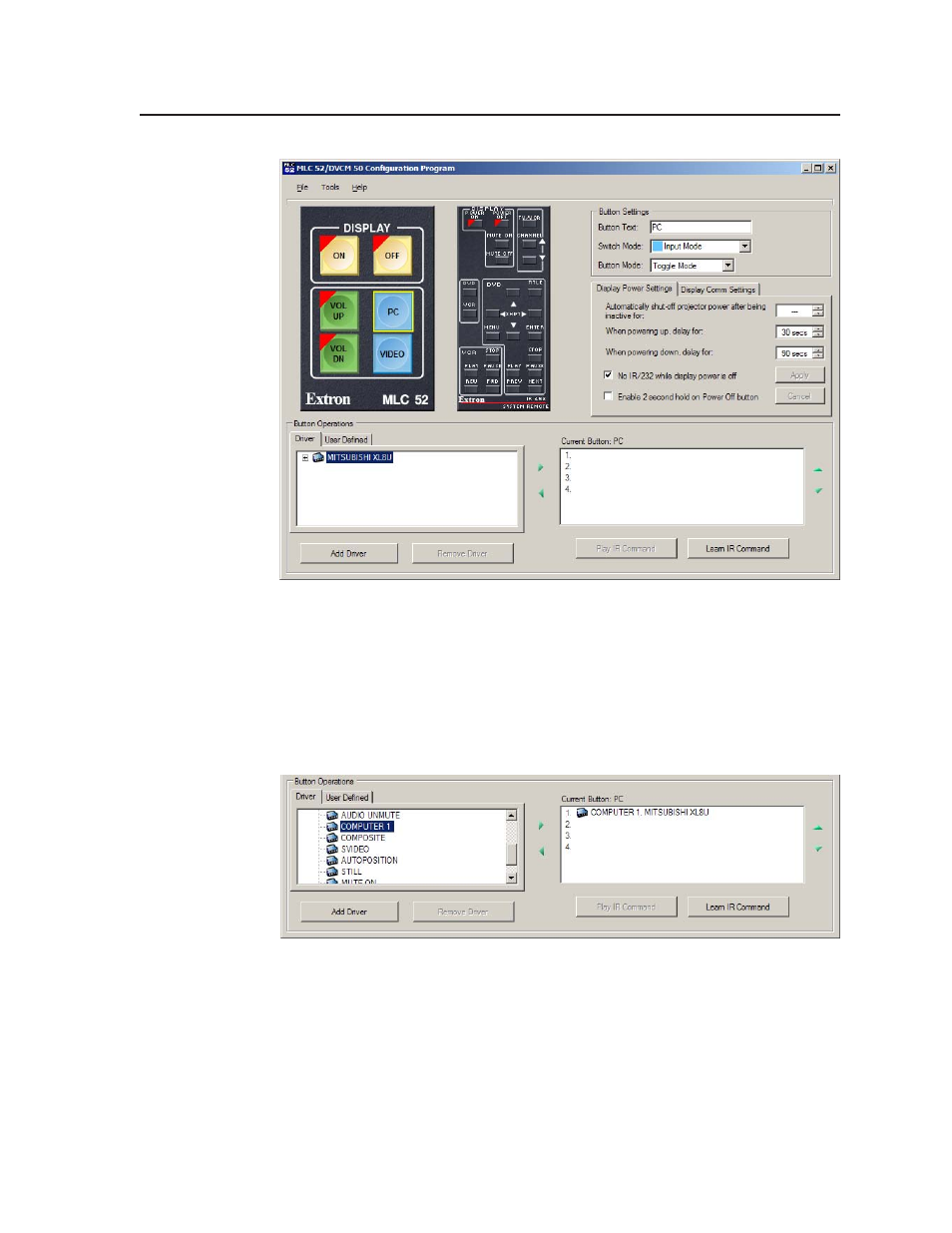

PC button selected on MLC 52 main screen
2 . On the Driver tab in the Button Operations field, click the + sign in front of
the driver name to view the commands available with that driver.
3 . On the command list below the driver name, click on the name of the first
command that you want to program onto the selected button.
4 . Click the green left arrow at the right of the Driver tab. The selected
command is displayed beside the number 1 (or the next available command
slot) in the Current Button field.
Command added to the first memory block of the PC button
The first time a command is added to a button, a red triangle covers the
upper-left corner of the button’s screen representation, indicating that the
button has been programmed with at least one command.
