5-9 MLC 52 Series MediaLink Controllers • Serial Communication

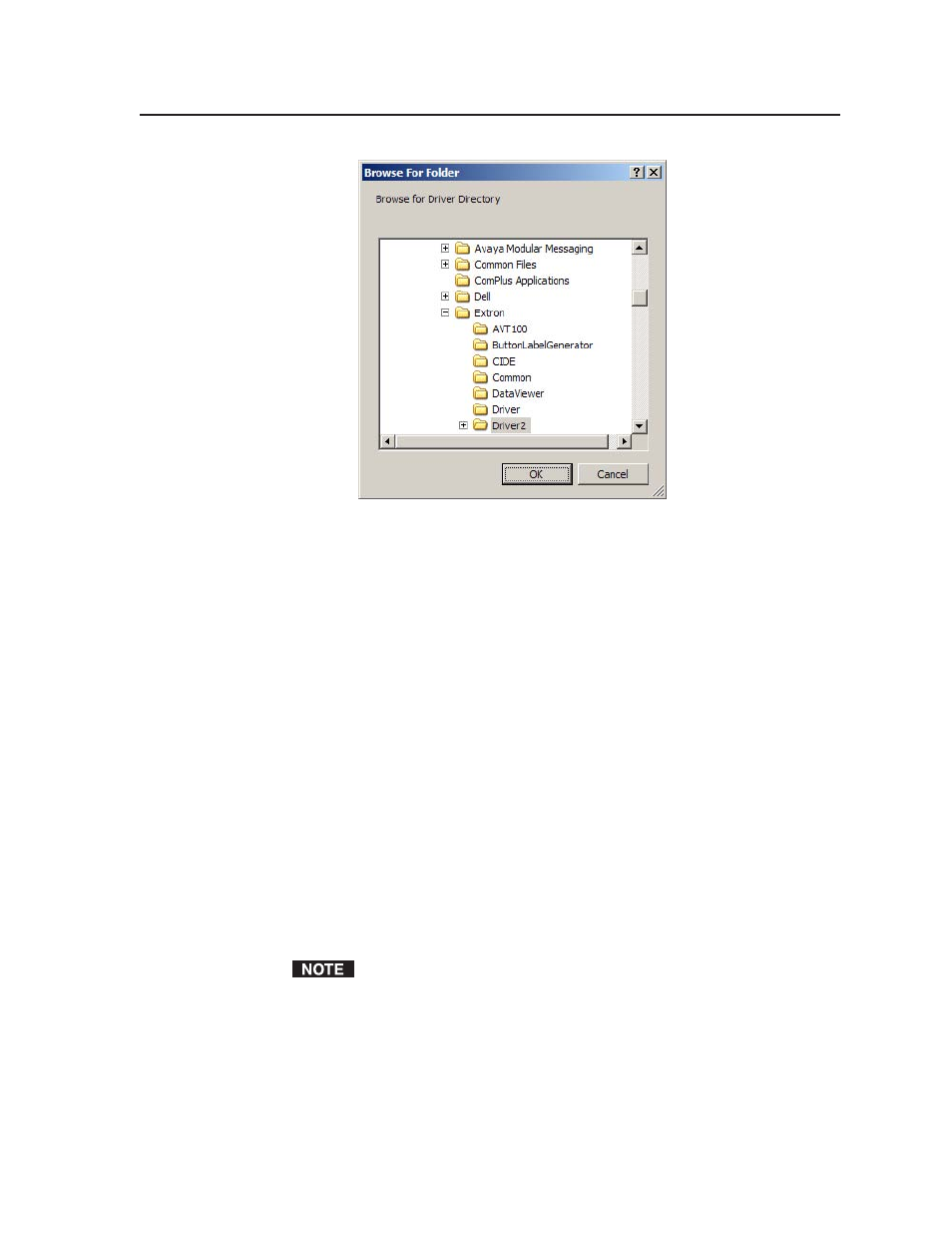

Browse For Folder window
5 . Click OK on the IR Driver Directory.
Key to file names
File name Description
________.MLL Extron-supplied display device driver library files. These files
contain commands and settings pertinent to a particular
projector or display.
________.MLK User-saved MLC/MLC-MLS/MLS configuration files. This
includes adjustments/settings and whatever driver (if any) was
installed in the MLC at the time the file was saved.
________.EIR IP Link IR drivers (which can also be used by the MLCs)
Configuring using the MLC 52 Configuration Wizard
The MLC 52 Configuration Wizard is a program that helps you perform basic
configuration of the MLC 52. You can use the wizard to create a new
configuration or to open and upload an existing one that you can then edit using
the Windows-based configuration software. You can configure an MLC that is
connected to your PC, or you can configure an MLC 52 (or a DVCM 50) that is not
connected (by using emulation mode). For information on performing a complete
configuration of your MLC, see “Configuring using the Windows-based
configuration program” on page 5-19.
If you have an RS model of the MLC 52 or the MLC 52 VC, the wizard
allows you to configure the MLC with a serial driver only. If you want to
create a configuration with additional IR drivers, you must access the
Windows-based configuration software directly.
If your MLC is an IR model, the wizard lets you load only an IR driver.
