5-45 MLC 52 Series MediaLink Controllers • Serial Communication
c . Double-click on the configuration file that you want to use in
emulation mode. Its name appears on the Emulation Mode tab.

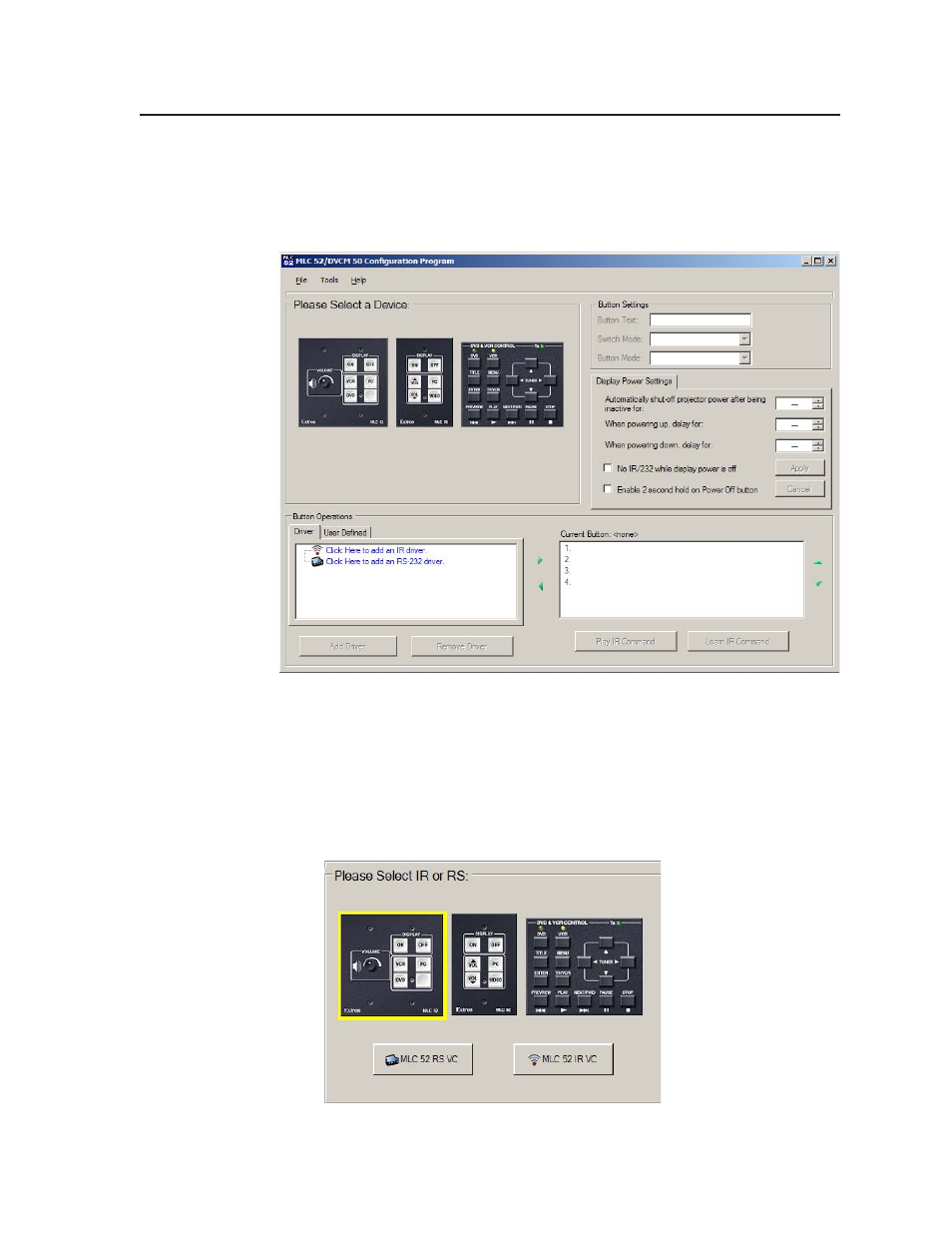

4. Click OK. If you are starting a new configuration, the following screen
appears:
Device selection screen for emulation mode
5. In the Please Select a Device area, click on the controller for which you want
to create the configuration: DVCM 50, MLC 52 VC, or MLC 52. (For DVCM
50 instructions, see the DVCM 50 User’s Manual.)
6 . When you select one of the MLC models, a pair of buttons appears in the
Please Select a Device section. Depending on the device you selected in
step 5, the buttons are named MLC 52 RS and MLC 52 IR , or MLC 52 RS VC
and MLC 52 IR VC.
MLC driver type selection buttons on the device selection screen
