B-3 MLC 52 Series MediaLink Controllers • Templates

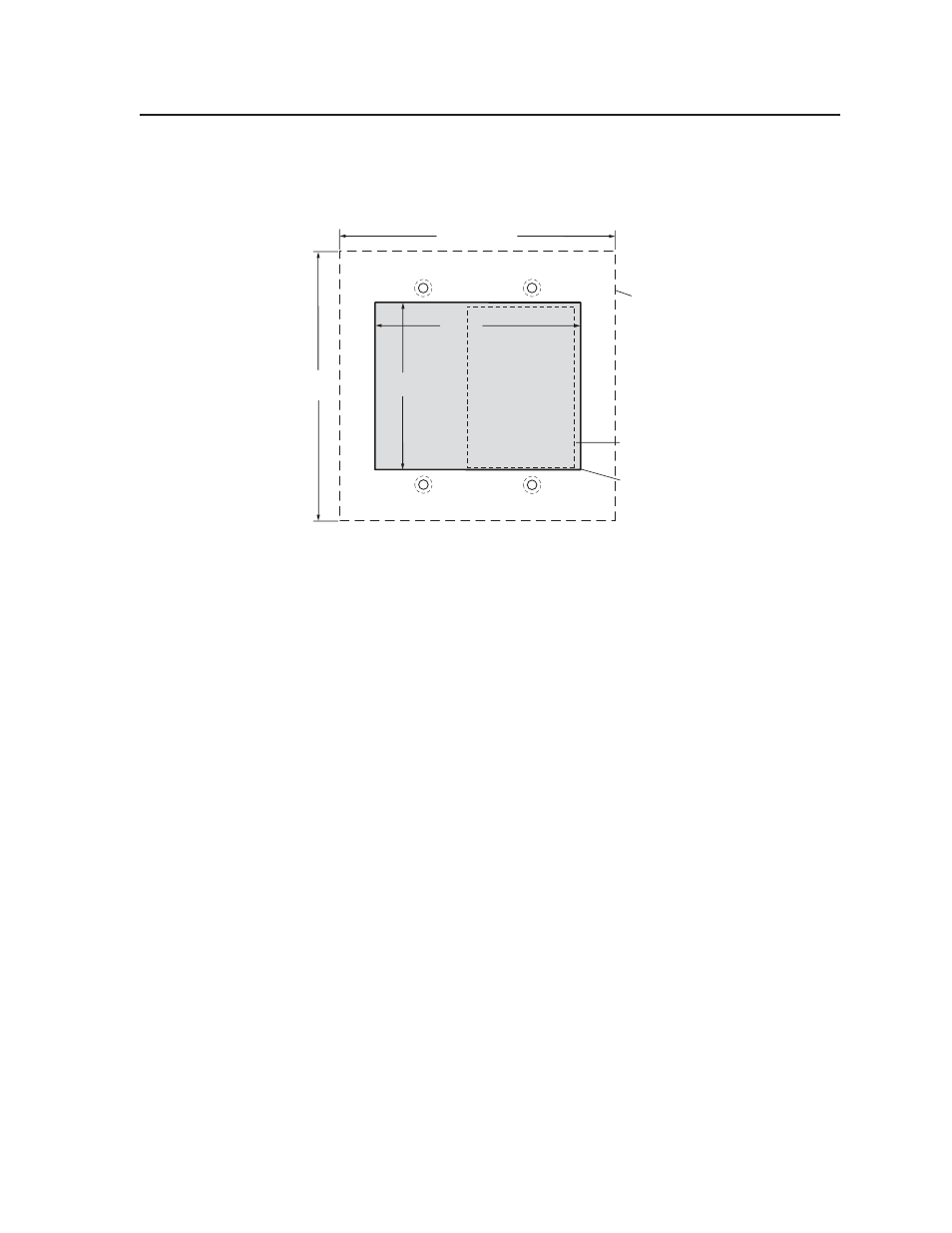

MLC 52 IR VC and MLC 52 RS VC Template
MLC 52 VC
(Front View)
Cut-Out Template for Extron's
4.60" (11.68 cm)
To install an MLC 52 VC
directly into
furniture or wall,
cut along this line.
Top Panel
2.91"
(7.40 cm)
3.50"
(8.90 cm)
SURFACE CUT-OUT
AREA FOR
FURNITURE MOUNT
Location of MLC 52
4.50"
(11.43 cm)
MLC 52 IR VC and MLC 52 RS VC cutout template
