Special Applications, cont’d
MLC 52 Series MediaLink Controllers • Special Applications 4-12
Issuing input selection commands learned from a type A remote control
The MLC now has four commands each on the PC and Video buttons. When you
press an MLC input button repeatedly, the following occurs:
Using the PC button (RGB):
• First press (memory block #1): The MLC 52 issues command “A” for RGB 1
input selection. The projector switches to its RGB 1 input.
• Second press (memory block #2): The MLC 52 issues command “A” for
RGB 2 input selection. The projector switches to its RGB 2 input.
• Third press (memory block #3): The MLC 52 issues command “B” for RGB 1
input selection. The projector switches to its RGB 1 input.
• Fourth press (memory block #4): The MLC 52 issues command “B” for RGB
2 input selection. The projector switches to its RGB 2 input.
Using the Video button (S-video or composite video):
• First press (memory block #1): The MLC 52 issues command “A” for
composite video input selection. The projector switches to its video input.
• Second press (memory block #2): The MLC 52 issues command “A” for
S-video input selection. The projector switches to its S-video input.
• First press (memory block #1): The MLC 52 issues command “B” for
composite video input selection. The projector switches to its video input.
• Second press (memory block #2): The MLC 52 issues command “B” for
S-video input selection. The projector switches to its S-video input.
Programming VC models — projector remote control type A
If you are using an MLC 52 IR VC or an MLC 52 RS VC with a type A remote
control, program the buttons as indicated in the illustration below.
1 2 3
4 5 6
7 8
0
9
VIDEO S-Video RGB1 RGB2
INPUTS
SET
UP
PLAY
PRG+
PRG–
POWER
REW
TV INPUT
PAUSE FF
STOP
DIR A DIR B
SLEEP TV MUTE
TIME/
LEVEL– DLY/CNT/REAR TIME/
LEVEL+
UP
LEFT RIGHT
DOWN
SKIP/CHAPTER
+100
– +
DECK
A/B
EFFECT
ON/OFF REC/ PAUSE
INPUT SELECT
CD TAPE TUNER
PHONO
TV/DBS
TEST
DVD/LD VCR
ENT DISP
Projector Remote Type A
MLC 52
DISPLAY
ON
PC
OFF
DVD
VCR
VOLUME
Command #1: RGB 1 IR Command “A”
Command #2: RGB 1 IR Command “B”
Optional:
Command #1: RGB 2 IR Command “A”
Command #2: RGB 2 IR Command “B”
Label the button button accordingly and
place it in input switch mode. Command #1: S-video 2 IR Command “A”
Command #2: S-video 2 IR Command “B”
Command #1: Video 1 IR Command “A”
Command #2: Video 1 IR Command “B”

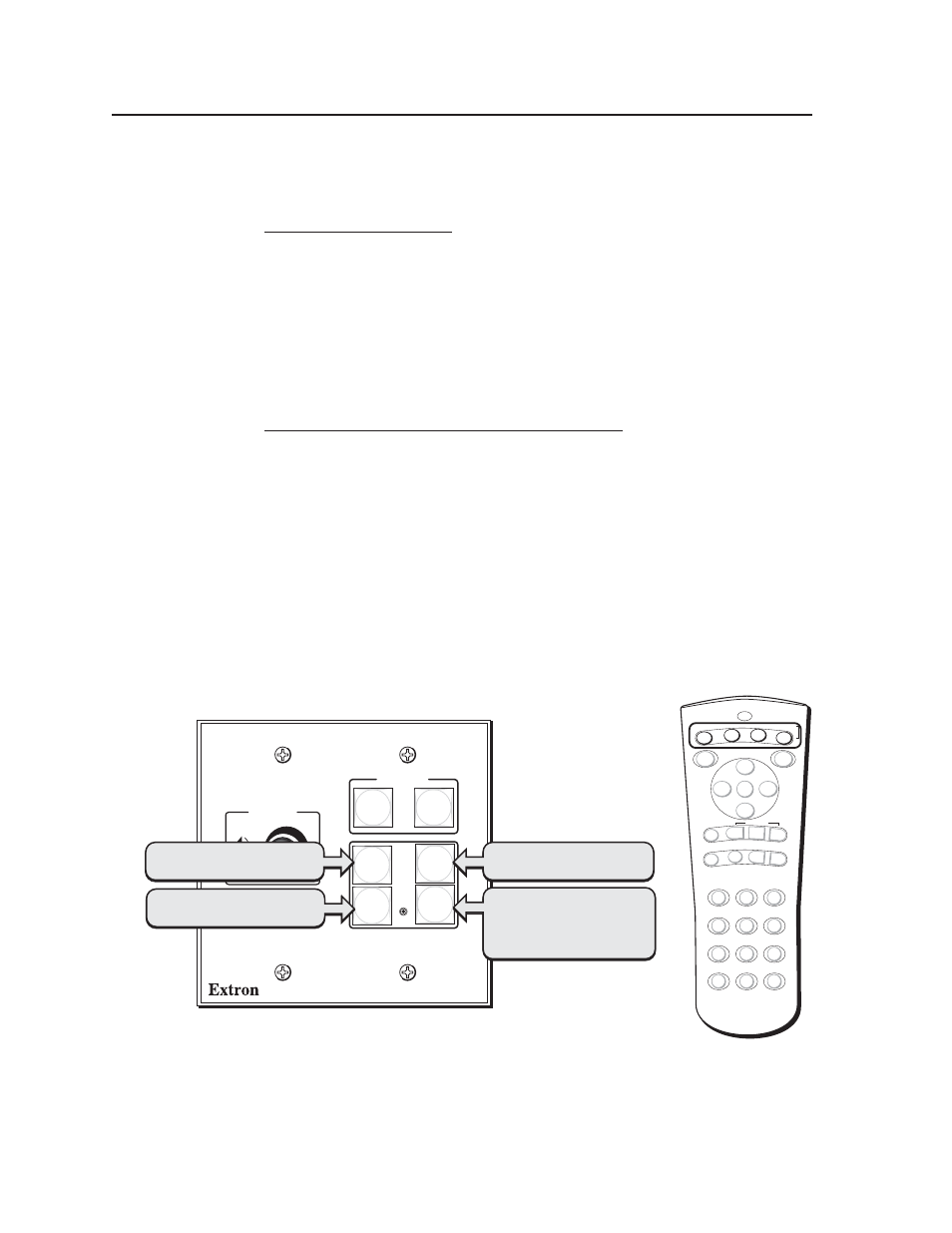

Programming an MLC 52 VC model with a projector remote control
type A
