Setting the Switch’s IP Address
4-9
4
Command Attributes
• Management VLAN – ID of the configured VLAN (1-4093). By default, all ports on
the stack are members of VLAN 1. However, the management station can be
attached to a port belonging to any VLAN, as long as that VLAN has been assigned
an IP address.
• IP Address Mode – Specifies whether IP functionality is enabled via manual
configuration (Static), Dynamic Host Configuration Protocol (DHCP), or Boot
Protocol (BOOTP). If DHCP/BOOTP is enabled, IP will not function until a reply has
been received from the server. Requests will be broadcast periodically by the
switch for an IP address. (DHCP/BOOTP values can include the IP address,
subnet mask, and default gateway.)
• IP Address – Address of the VLAN to which the management station is attached.
Valid IP addresses consist of four numbers, 0 to 255, separated by periods.
(Default: 0.0.0.0)
• Subnet Mask – This mask identifies the host address bits used for routing to
specific subnets. (Default: 255.0.0.0)
• Gateway IP Address – IP address of the gateway router between the stack and
management stations that exist on other network segments. (Default: 0.0.0.0)
• MAC Address – The physical layer address for this switch.
Manual Configuration
Web – Click System, System, IP Configuration. Select the VLAN through which the
management station is attached. Enter the IP address, subnet mask and gateway,
then click Apply.

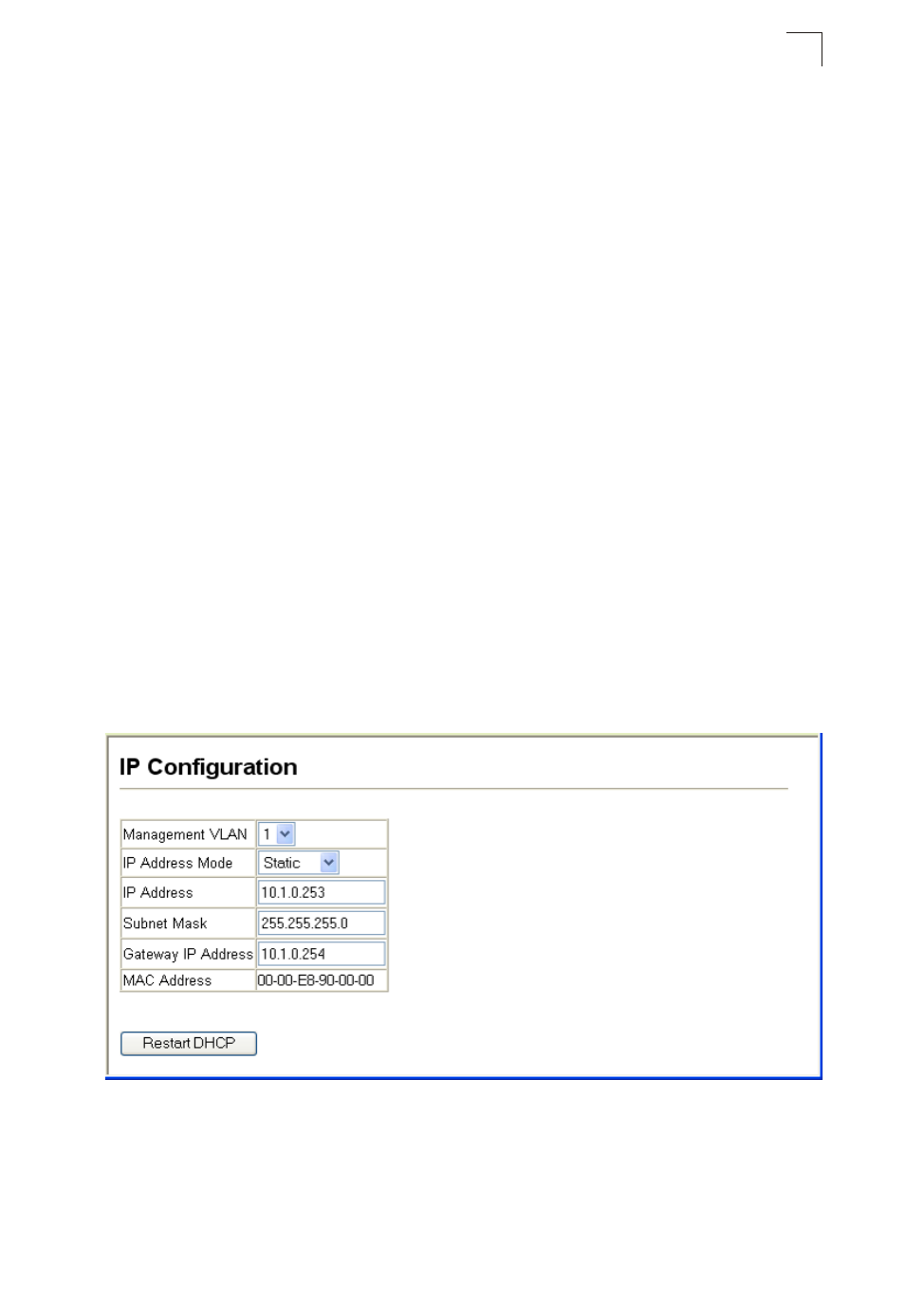

Figure 4-7 IP Interface Configuration - Manual
