9-1
Chapter 9: Port Configuration
Displaying Connection Status
You can use the Port Information or Trunk Information pages to display the current
connection status, including link state, speed/duplex mode, flow control, and
auto-negotiation.
Field Attributes (Web)
• Name – Interface label.
• Type – Indicates port type. (100BASE-TX
6 , 100BASE-BX 7 , 1000BASE-T, or SFP)
• Admin Status – Shows if the interface is enabled or disabled.
• Oper Status – Indicates if the link is Up or Down.
• Speed Duplex Status – Shows the current speed and duplex mode.
(Auto, or fixed choice)
• Flow Control Status – Indicates the type of flow control currently in use.
(IEEE 802.3x, Back-Pressure or None)
• Autonegotiation – Shows if auto-negotiation is enabled or disabled.
• Media Type
8 – Shows the forced/preferred port type to use for combination ports
25-28. (Copper-Forced, SFP-Forced, SFP-Preferred-Auto)
• Trunk Member 8 – Shows if port is a trunk member.
• Creation 9 – Shows if a trunk is manually configured or dynamically set via LACP.
Web – Click Port, Port Information or Trunk Information.

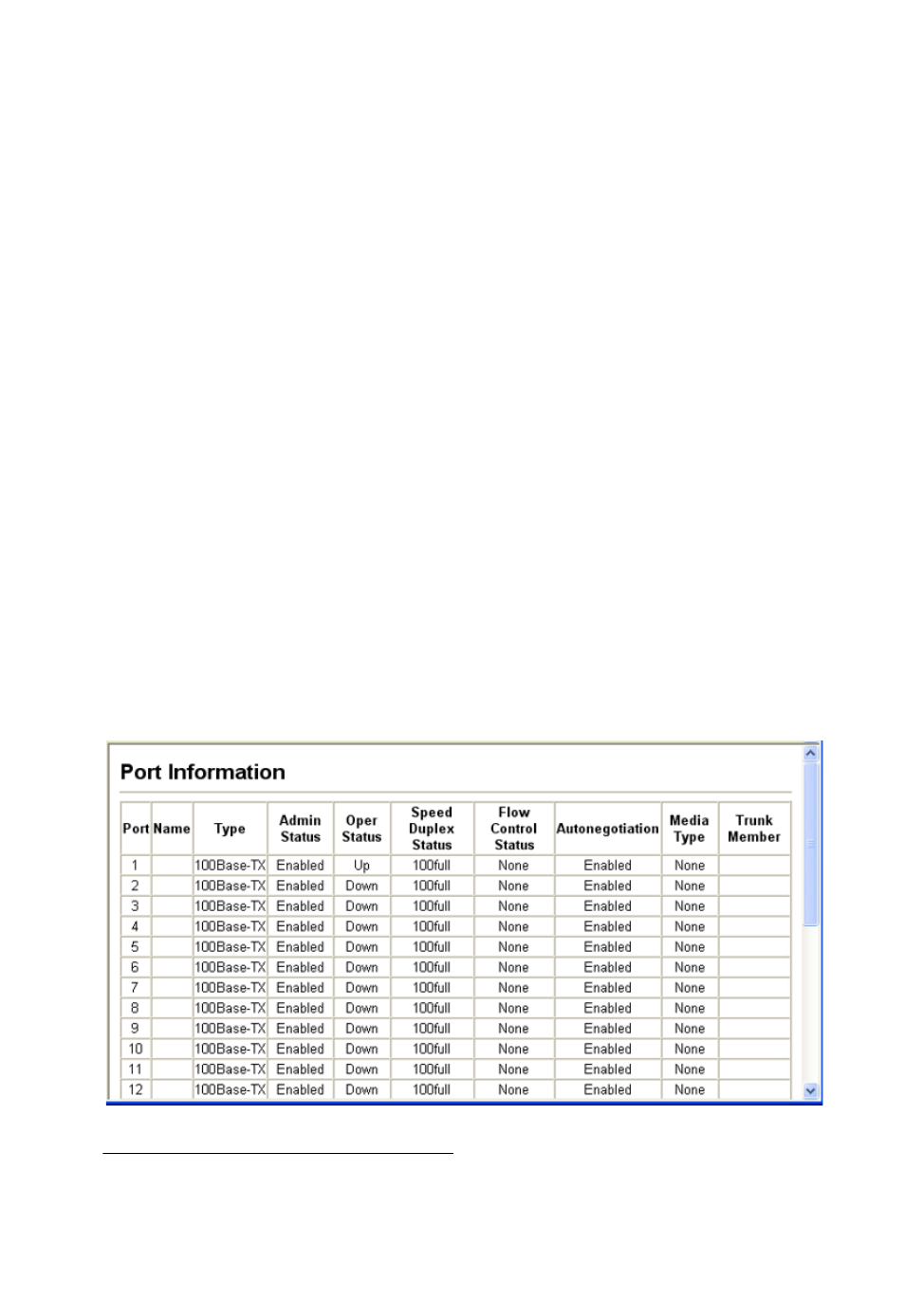

Figure 9-1 Port - Port Information
6. ES3528
7. ES3528-WDM
8. Port Information only.
9. Trunk Information only.
