VLAN Configuration
12-20
12
Mapping Protocols to VLANs
Map a protocol group to a VLAN for each interface that will participate in the group.
Command Usage
• When creating a protocol-based VLAN, only assign interfaces using this
configuration screen. If you assign interfaces using any of the other VLAN menus
such as the VLAN Static Table (page 7) or VLAN Static Membership by Port menu
(page 9), these interfaces will admit traffic of any protocol type into the associated
VLAN.
• When a frame enters a port that has been assigned to a protocol VLAN, it is
processed in the following manner:
- If the frame is tagged, it will be processed according to the standard rules applied
to tagged frames.
- If the frame is untagged and the protocol type matches, the frame is forwarded
to the appropriate VLAN.
- If the frame is untagged but the protocol type does not match, the frame is
forwarded to the default VLAN for this interface.
Command Attributes
• Interface – Port or trunk identifier.
• Protocol Group ID – Group identifier of this protocol group.
(Range: 1-2147483647)
• VLAN ID – VLAN to which matching protocol traffic is forwarded. (Range: 1-4093)
Web – Click VLAN, Protocol VLAN, Port Configuration. Select a a port or trunk,
enter a protocol group ID, the corresponding VLAN ID, and click Apply.

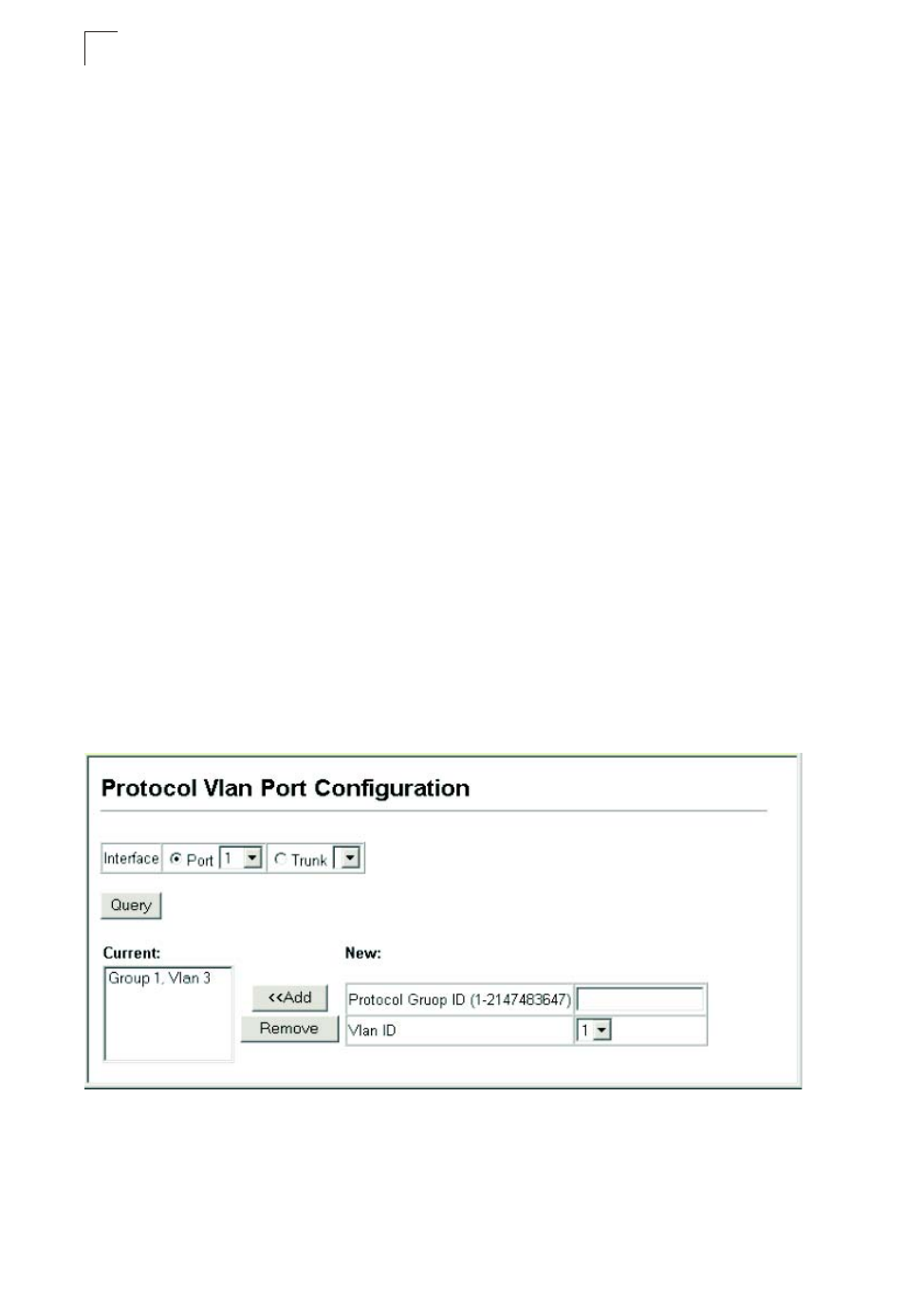

Figure 12-12 Protocol VLAN Port Configuration
