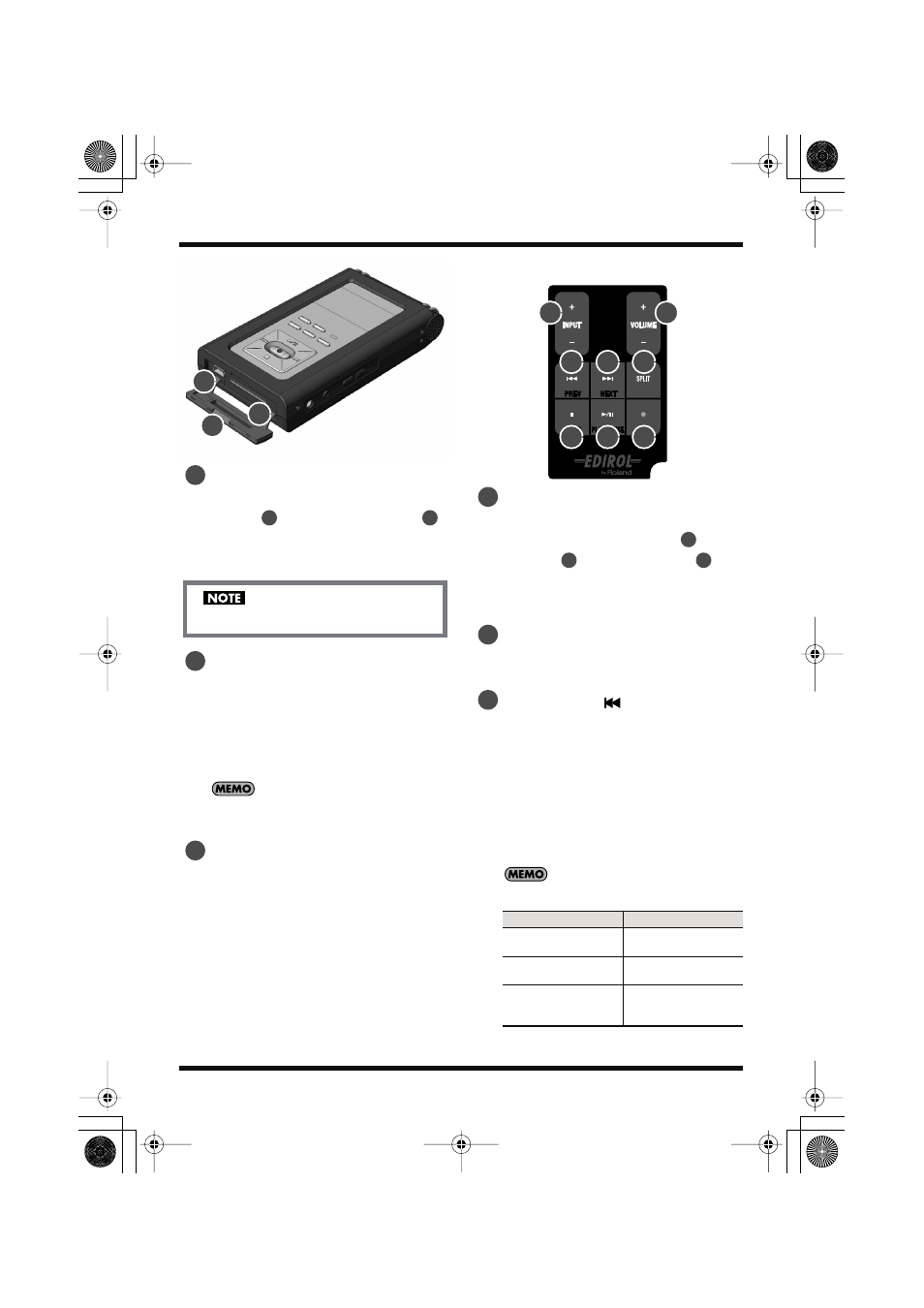

Names of things and what they do
Bottom cover
When the cover is opened, the [USB
Terminal
] and [Memory Card Slot
]
are visible.
“Preparing the memory card” (p. 25)
USB terminal
This terminal is used to connect to a PC via
the included USB cable. Songs recorded on
the R-09HR can be transferred to the PC,
and WAV or MP3 files can be copied from
the PC to the R-09HR to be played.
“Preparing the memory card” (p. 25)
Since USB 2.0 (HI-SPEED USB) is supported, songs
can be transferred quickly.
Memory card slot
This slot accepts SD memory cards.
Remote Control
(+) and (-) INPUT Level buttons
The INPUT level buttons adjust the level of
the sound from the [Internal MIC
], [MIC
Input Jack
], and [LINE IN Jack
].
Pressing the (+) input level button increases
the input sound level. Pressing the (-) input
level button decreases the input sound level.
(+) and (-) VOLUME buttons
These buttons adjust the output sound level
of preview monitor and headphones.
PREV button (
)
The PREV button selects the beginning of the
song or the previous song. If it is held down,
the song rewinds while the button is
pressed.
It can be used during playback or while
stopped.
It is also used to move the cursor to the left in
the display or to change the value of a
selected item.
32
33
31
31
32
33
Forcing the cover open may damage the unit.
32
33
Current Status
Operation
During a song
Moves to beginning
of song
Beginning of a song
Moves to previous
song
During a song, at the
beginning of a song,
or while stopped
Rewinds while button
is pressed
