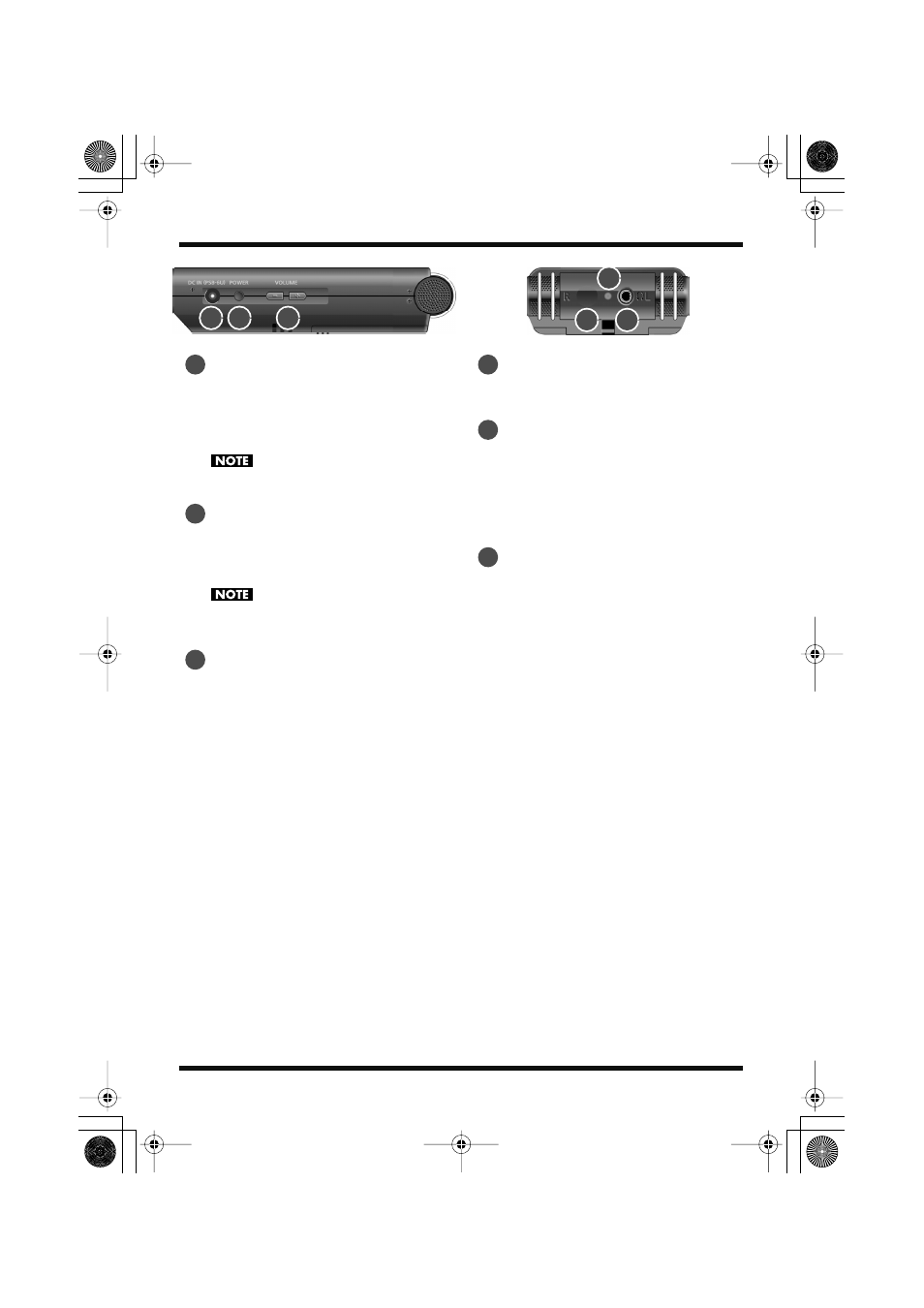

Names of things and what they do
AC ADAPTOR jack
This is the power jack.
Connect the included AC adaptor to this
jack.
“Using the AC adaptor” (p. 20)
Be sure to turn the R-09HR off before unplugging
the AC adapter.
POWER switch
Holding down the POWER switch turns
power on or off.
“Turning power on/off” (p. 20)
Never switch off the power during playback/
recording, while connected to the PC via USB, or
while “Now Processing!” appears in the display.
(+) and (-) VOLUME buttons
These buttons adjust the output sound level
of preview monitor and headphones.
HEADPHONE jack
Connect headphones.
Remote indicator
This indicator lights in different ways
depending on whether the unit is in
recording standby, is recording, or if there’s
excessive input.
“Adjusting recording levels using the
Optical receiving port for the
remote control
Receives the operations from remote control.
