Installation and Use
2-8

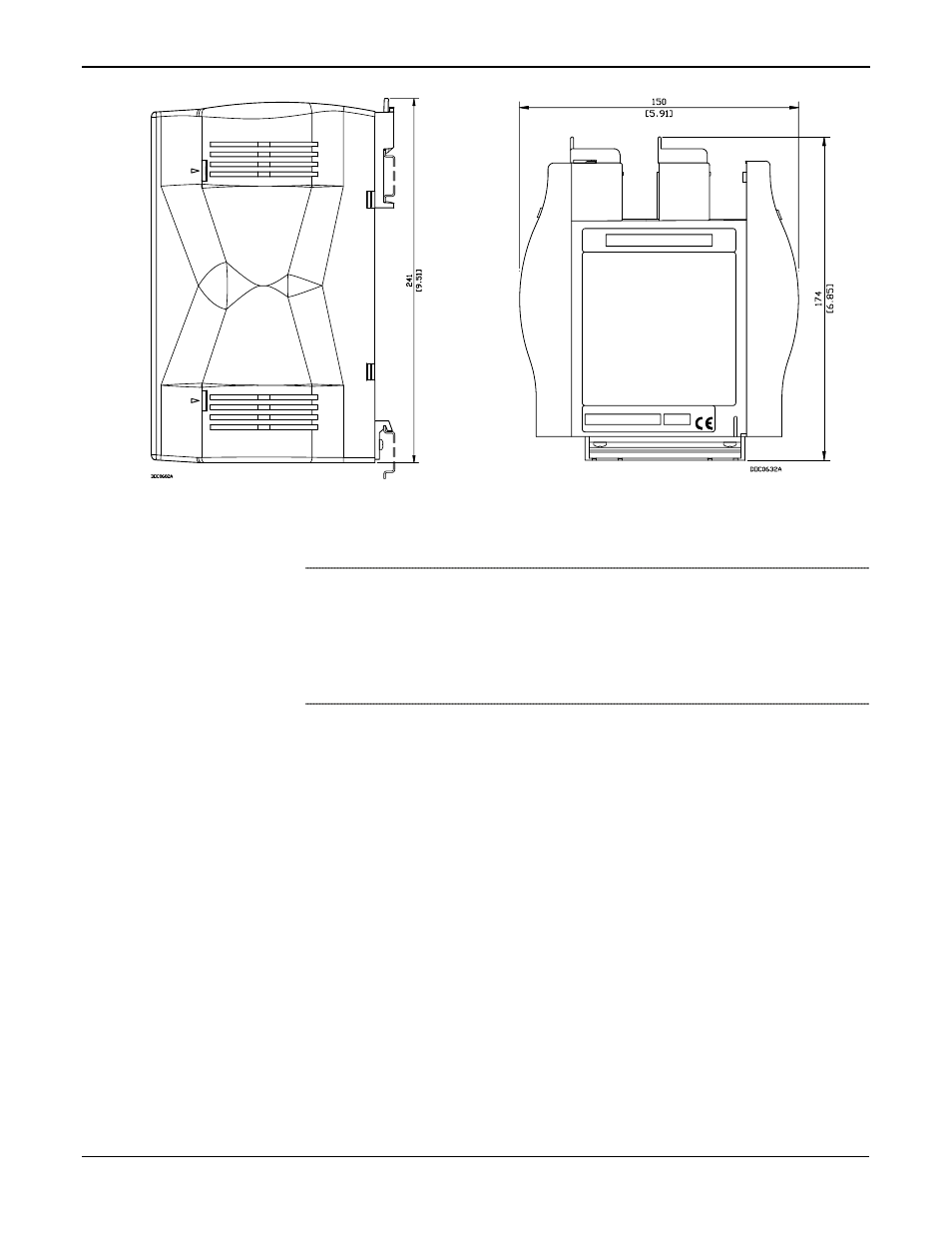

Figure 2-1. Side View of the ROC827
Figure 2-2. Bottom View of the ROC827
Note
: The distance from the mounting panel to the front of the ROC827 is
174mm (6.85”). If you mount the ROC827 inside an enclosure and want to
connect a cable to the LOI or Ethernet port, ensure adequate clearance for
the cable and the enclosure door. For example, a molded RJ-45 CAT 5
cable can increase the clearance requirement for the enclosure by 25mm
(1”).
