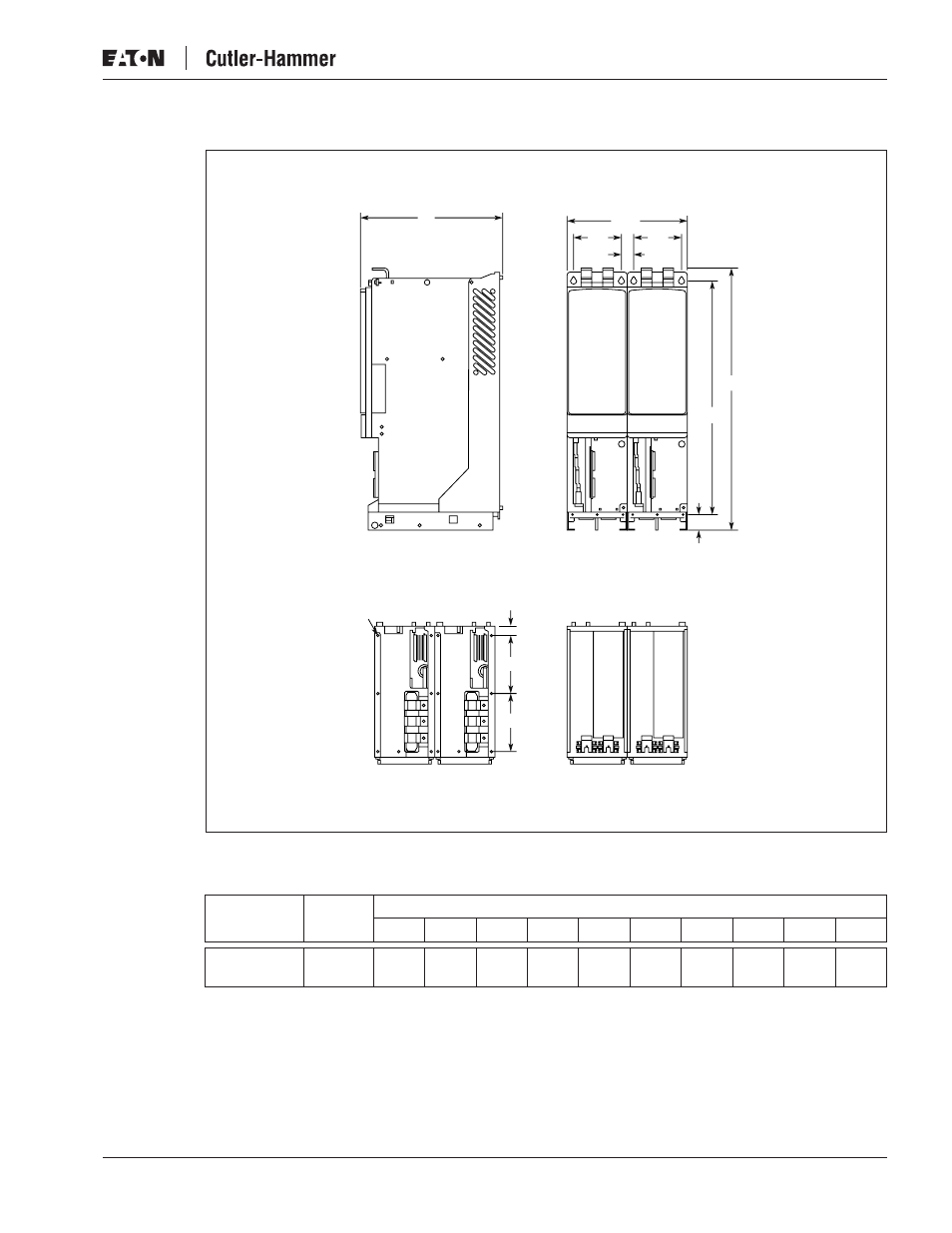

Figure 2-3: SPI9000 FI12 Inverter Dimensions
Table 2-3: SPI9000 FI12 Inverter Dimensions
Inverters
Voltage
Approximate Dimensions in Inches (mm)
W1
W2
W3
H1
H2
H3
D1
D2
D3
Dia.
SPI385 – 650
480V
18.8
(478)
7.9
(200)
1.1
(28)
41.3
(1050)
37.5
(952)
2.4
(60.5)
22.3
(566)
9.1
(230)
1.6
(41)
.37
(9.5)
W2
W2
W3
H2
H3
Front
Side
Dia.
D2
D2
D3
Top
Bottom
H1
W1
D1
