Extron • Matrix 200 • User’s Manual
Chapter 2 • Hardware Installation
2-4

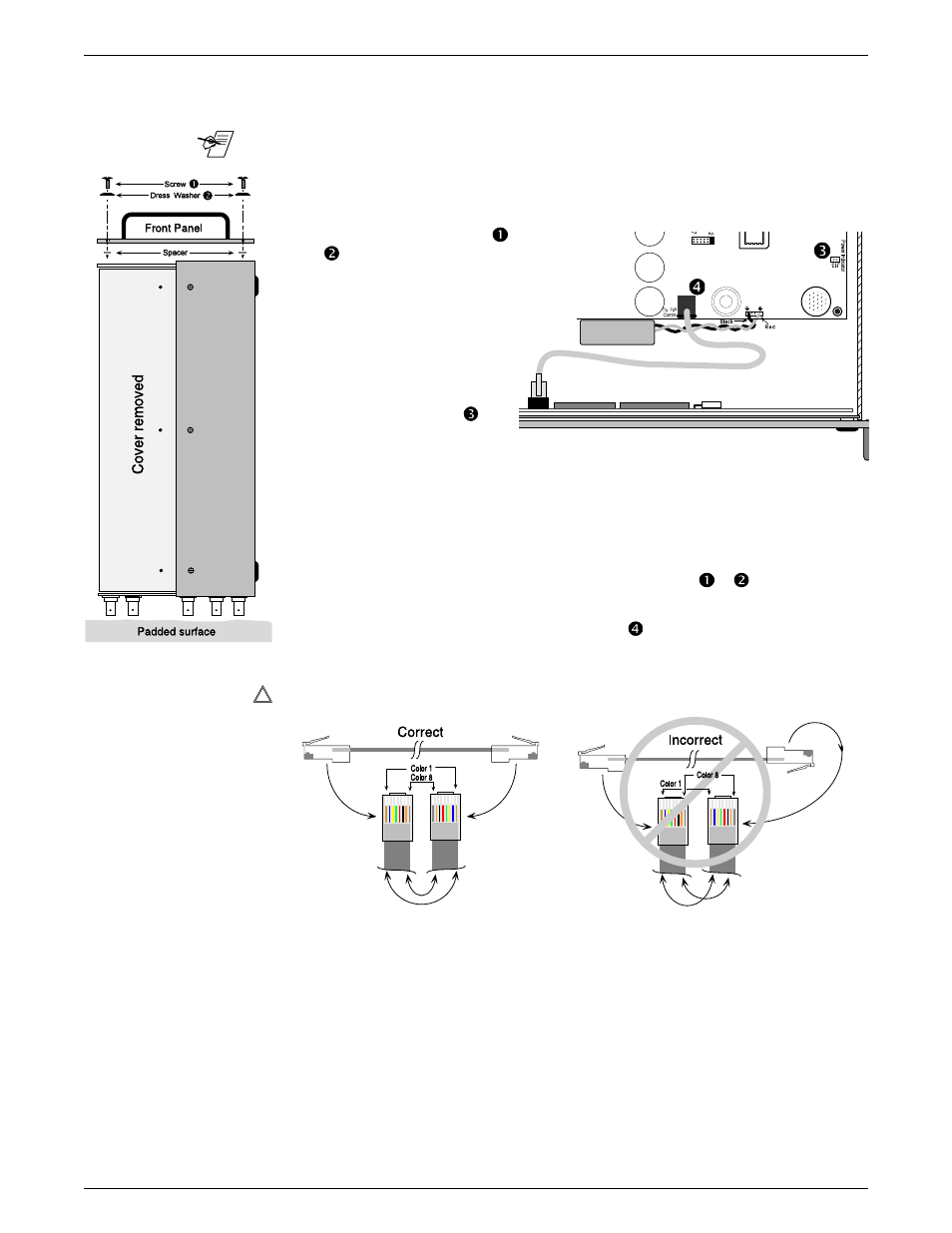

Replacing a Blank Panel with a QuickSwitch Front Panel Controller
_______ Installing a front panel may be easier by placing the Matrix face-up, being
careful to protect the BNC connectors from damage.
After removing the Matrix 200 cover, remove the Blank Front Panel as follows:
1. Remove the four screws
and dress washers (items
&
at left) from the existing
front panel. Take care to
remove the four spacers
from the rear of the panel.
2. When removing the blank
panel, disconnect the Power
Indicator cable from J13 on
the right side of the Main
Controller board. See
at
right.
3. Remove the Blank Front and set it aside.
4. Position the QS-FPC on the front of the Matrix 200, with a spacer behind each
screw. Install the four screws and dress washers (items & ).
5. Connect the modular cable from the plug on the QS-FPC to the RJ45 connector
on the Matrix 200 Main Controller board. See in the picture above for the
RJ45 connector location.
___ Circuits may be damaged by using the wrong RJ45 cable. See figure below for
correct orientation of cable conductors.
6. Refer to page 2-2 when reassembling the Matrix 200.
Operating instructions for the QS-FPC are found in Chapter 4.
LITHIUM
BATTERY
