3-31 CrossPoint 450 Plus and MAV Plus Switchers • Operation
Example 8: Recalling a preset
The following steps show an example in which a preset is recalled to become the
current configuration. The steps show the front panel indications that result from
your action.

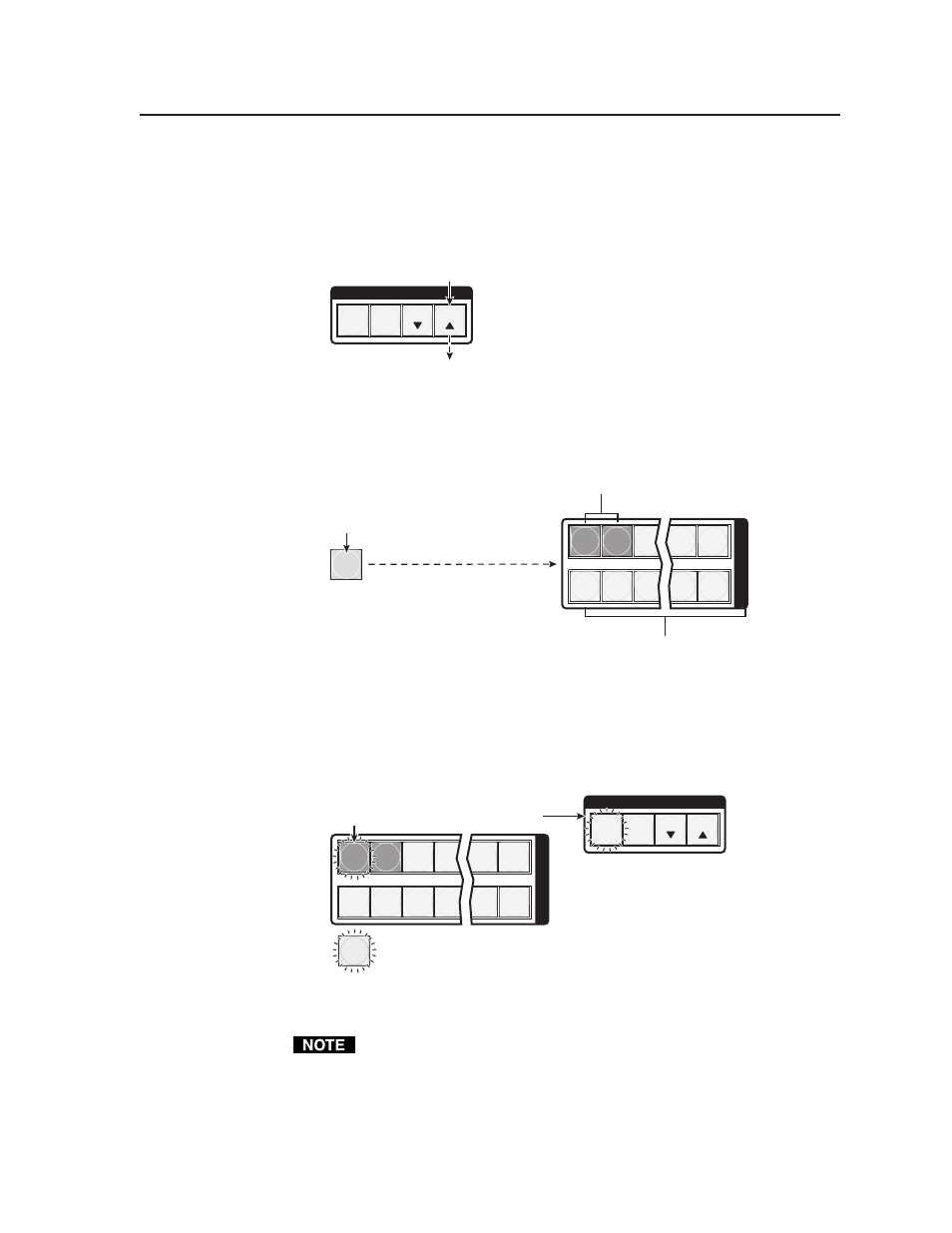

1 . Press and release the Esc button (figure 3-47).
C O N T R O L
PRESET ENTER ESC VIEW
Press the Esc button to clear all selections .
The button flashes once .
Figure 3-47 — Clear all selections
2 . Press and release the Preset button (figure 3-48).
1 2 3 15 16
17 18 19 31 32
I
N
P
U
T
S
PRESET
All input buttons with
assigned presets light red.
Red
(Preset Assigned) Press and release the
Preset button.
The Preset button lights.
Unlit
(No Preset Assigned)
Figure 3-48 — Enter Recall Preset mode
3 . Press and release the input or output button for the desired preset
(figure 3-49).
1 2 3 4 15 16
17 18 19 20 31 32
I
N
P
U
T
S
C O N T R O L
PRESET ENTER ESC VIEW
Press and release the Input 1 button.
The button blinks red to indicate that this
preset number is selected but not recalled.
The Enter button blinks
to indicate the need to
recall the preset.
= Blinking button
Figure 3-49 — Select the preset
Figure 3-42 on page 3-29 shows the presets associated with the various input
and output buttons for all three front panel configurations.
