3-13 CrossPoint 450 Plus and MAV Plus Switchers • Operation
Example 2: Adding a tie to a set of video and audio ties
In the following example, a new video tie is added to the current configuration.
The steps show the front panel indications that result from your action.
This example assumes that you have performed example 1.

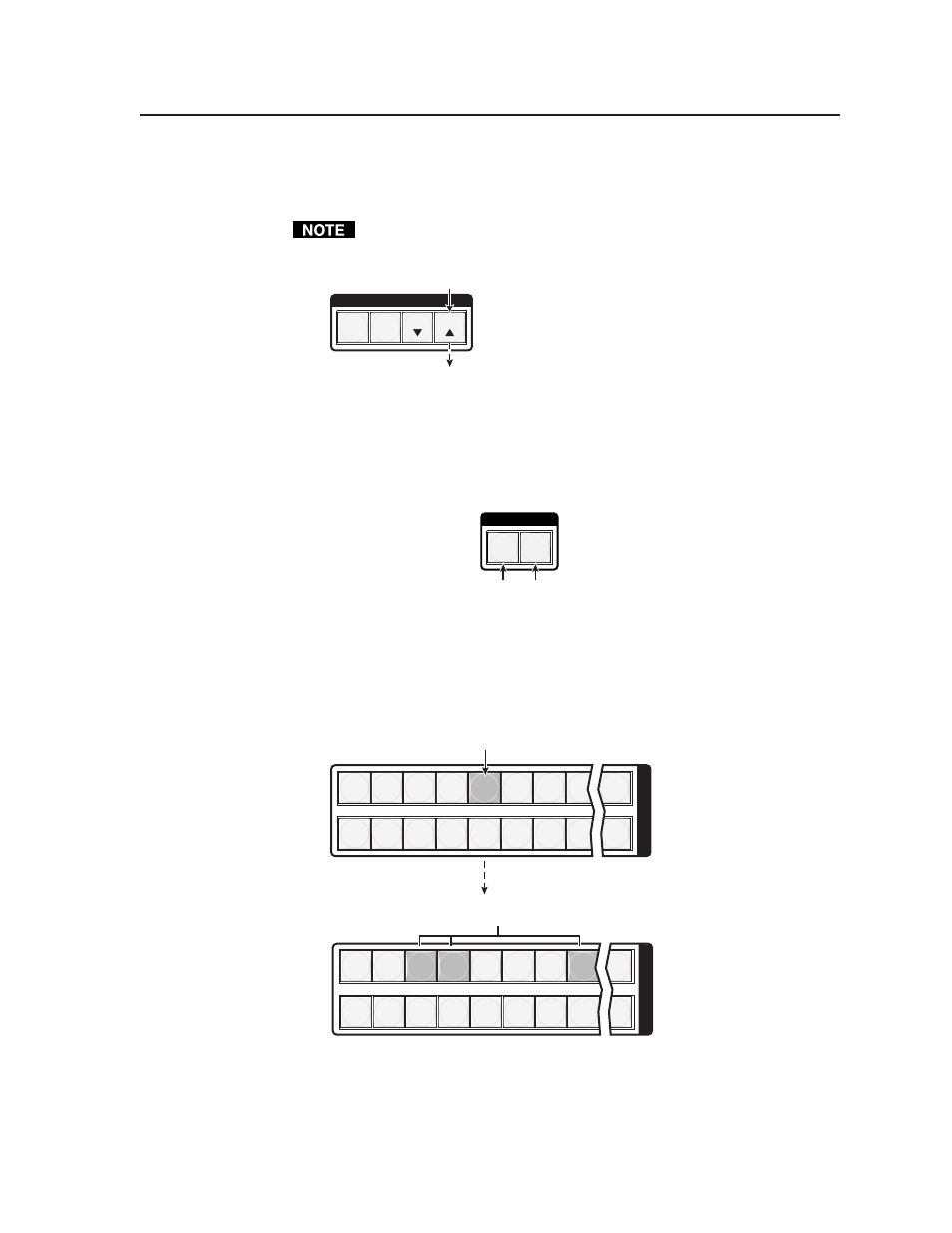

1 . Press and release the Esc button (figure 3-11).
C O N T R O L
PRESET ENTER ESC VIEW
Press the Esc button to clear all selections .
The button flashes once .
Figure 3-11 — Clear all selections
2 . To select video only for the tie, if necessary, press and release the RGBHV
(CrossPoint 450 Plus switchers) or Video (MAV Plus switchers) button and the
Audio button (figure 3-12).
I / O
VIDEO AUDIO
Press the RGBHV/Video button to toggle on and off.
The button lights green when selected.
Press the Audio button to toggle on and off.
The button is unlit or background illuminated when deselected.
Figure 3-12 — Select RGBHV or video only
3 . Press and release the input 5 button (figure 3-13).
The Output 3, Output 4, and Output 8 buttons light green to
indicate the RGBHV or video ties created in example 1.
1 2 3 4 5 6 7 8 16
17 18 19 20 21 22 23 24 32
I
N
P
U
T
S
1 2 3 4 5 6 7 8 16
17 18 19 20 21 22 23 24 32
O
U
T
P
U
T
S
Press and release the Input 5 button.
The button lights green to indicate that video
outputs can be tied to or untied from this input.
Figure 3-13 — Select an input
