Operation, cont’d
CrossPoint 450 Plus and MAV Plus Switchers • Operation 3-12

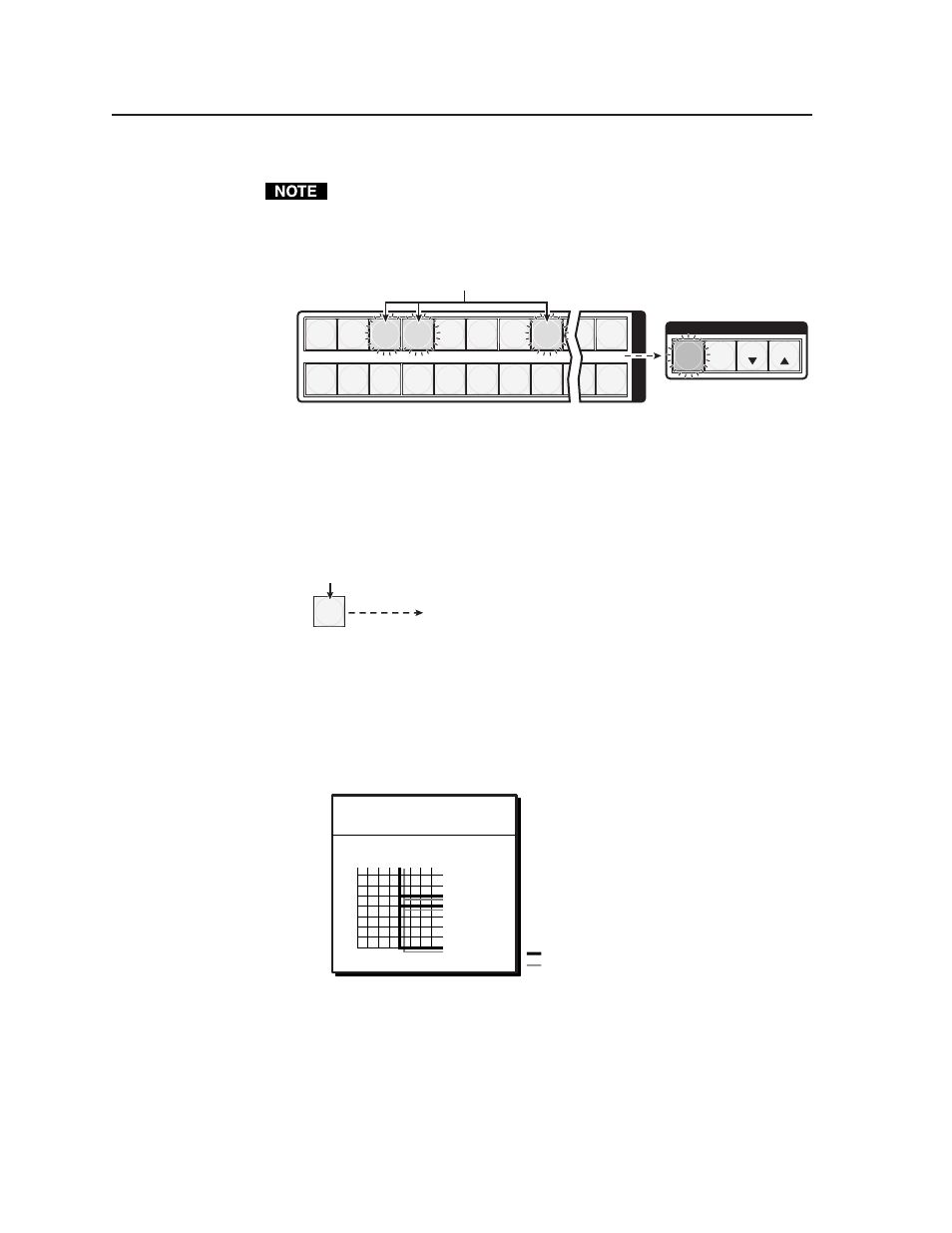

4 . Press and release the output 3, output 4, and output 8 buttons (figure 3-8).
The entire set of ties can be canceled at this point by pressing and releasing the
Esc button. The Esc button flashes green (matrix sizes up to 1616) or red
(matrix sizes 3232 and above) once.
C O N T R O L
PRESET ENTER ESC VIEW
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
O
U
T
P
U
T
S
Press and release the Output 3, Output 4, and Output 8 buttons.
The buttons blink amber to indicate that the selected RGBHV or video and audio
input will be tied to these outputs.
The Enter button blinks
green to indicate the need to
confirm the change.
Figure 3-8 — Select the outputs
5 . Press and release the Enter button (figure 3-9).
ENTER
All input buttons and output buttons
return to unlit or background illumination.
Press the Enter button to
confirm the configuration
change.
The Enter button returns to
unlit or background
illumination.
Figure 3-9 — Press the Enter button
The current configuration (figure 3-10) is now:
• Input 5 video and audio tied to output 3, output 4, and output 8
Input 5 (video/audio) tied
to outputs 3, 4, and 8.
Input
Output
3
4
8
5
Video
Audio
Figure 3-10 — Example 1, final configuration
