Matrix Software, cont’d
CrossPoint 450 Plus and MAV Plus Switchers • Matrix Software 5-14
3 . Connect a Windows-based computer to either switcher serial port or the
switcher LAN port. See chapter 2, “Installation”, for more details.
4 . Start the Matrix Switchers Control Program. See “Using the software” in this
chapter, steps 1 through 4, starting on page 5-4.
The Ethernet connection is much faster than the serial port connections.
Extron recommends using the Ethernet connection rather than the serial port
for firmware uploads.
5 . Click Tools > Update firmware.
If you are connected via the LAN port , the select file window appears
(figure 5-10). See “Ethernet-connected firmware upload”, below.
If you are connected via either serial port , the Extron Firmware Loader
appears (figure 5-11). See “Serial-port-connected firmware upload”, on
page 5-15.
Ethernet-connected firmware upload

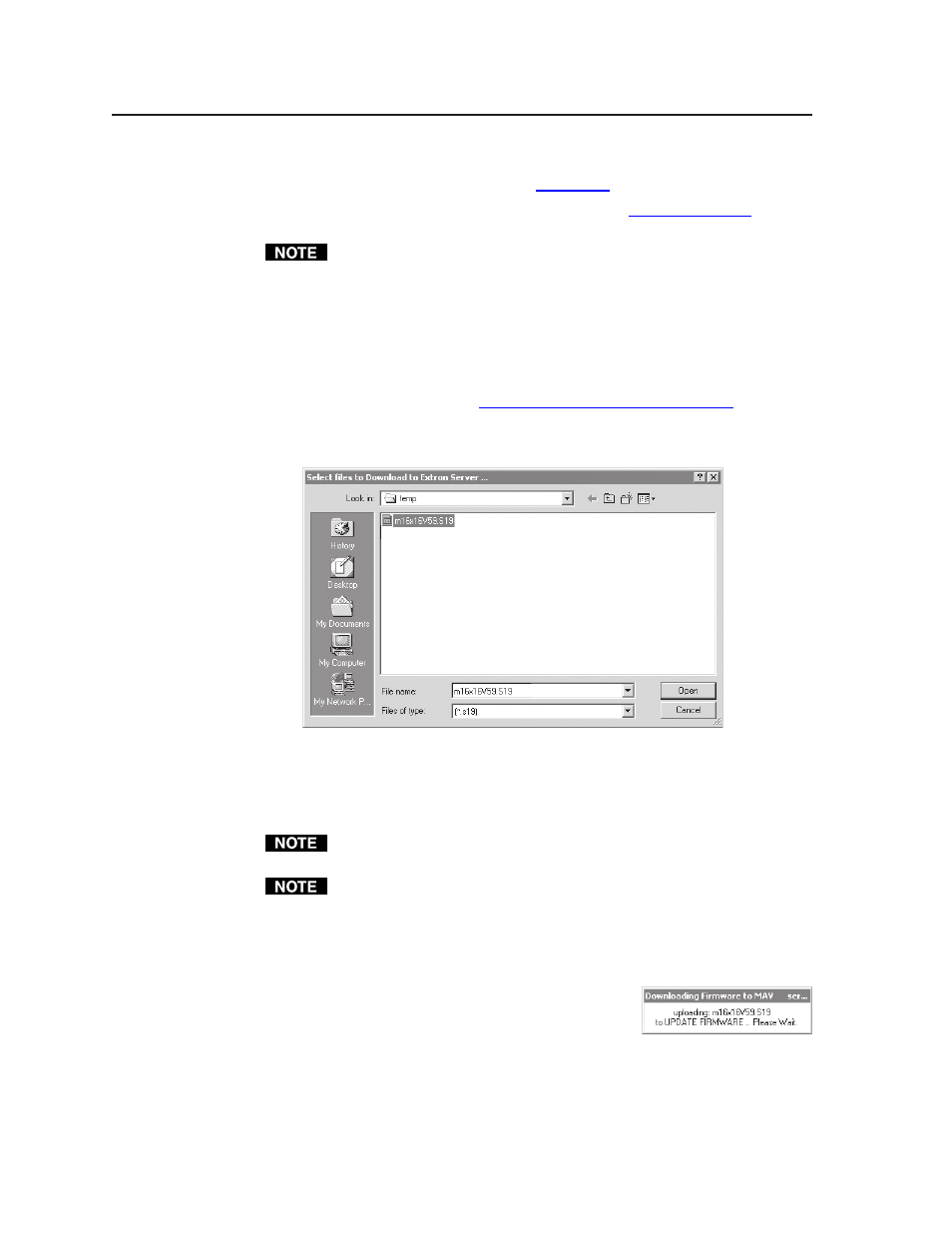

Figure 5-10 — Select file window
6 . Navigate to the folder where you saved the firmware upgrade file. Select the
file.
Valid firmware files must have the file extension .S19. Any other file extension
is not a firmware upgrade.
The original factory-installed firmware is permanently available on the
CrossPoint 450 Plus or MAV Plus switcher. If the attempted firmware upload
fails for any reason, the switcher reverts to the factory-installed firmware.
7 . Click the Open button. The software advises you that you are about to
reprogram the switcher’s firmware. Click Ok to continue.
A status window, which shows the progress of the
upload, appears. The firmware upload to the
CrossPoint 450 Plus or MAV Plus switcher may
take a few minutes.
