3-27 CrossPoint 450 Plus and MAV Plus Switchers • Operation

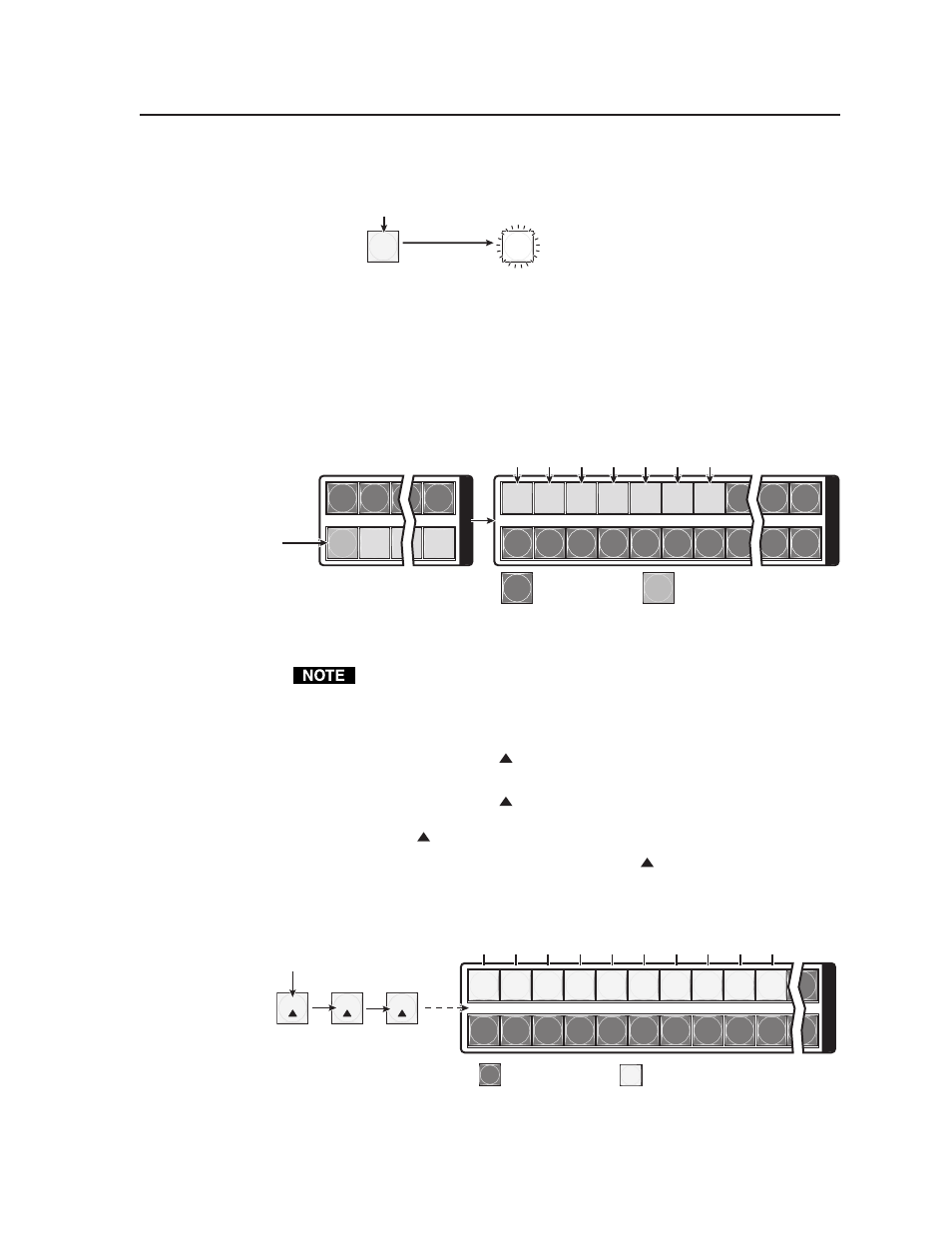

2 . Press and hold the RGBHV button for approximately 2 seconds (figure 3-38).
RGBHV RGBHV
Press and hold the RGBHV
button until it blinks.
2 seconds
Figure 3-38 — Select RGB Delay mode
3 . Press and release the output 17 button (figure 3-39).
1 2 3 4 5 6 7 8 15 16
17 18 19 20 21 22 23 24 31 32
1 2 5 16
17 18 11 32
I
N
P
U
T
S
O
U
T
P
U
T
S
Press and release the
Output 17 button.
The button lights green.
The input buttons 1 through 10 display the selected
output's RGB delay.
Each lit input button indicates half a second of delay.
In this example, the green input buttons display 3.5
seconds of RGB delay.
3.5 3.0 2.5 2.0 1.5 1.0 0.5
= Unlit button = Lit green button
Figure 3-39 — Select an output
The RGB delay is protected when front panel lock mode 2 is selected. You can
view the delay in lock mode 2, but not change it from the front panel.
If front panel lock mode 2 is selected and you try to perform steps 4, the
actions are ignored and the Enter, RGBHV/Video, and Audio buttons flash.
4 . Press and release the Esc ( ) button once (figure 3-40) to increase the RGB
delay by a half second.
Press and release the Esc ( ) button twice more to increase the RGB delay by
a whole second. Note the input button indication changes that occur each
time the Esc (
) button is pressed and released.
Figure 3-40 show the result of pressing the Esc ( ) button a total of 3 times.
ESC ESC ESC
1 2 3 4 5 6 7 8 9 10
17 18 19 20 21 22 23 24 25 26
16
32
I
N
P
U
T
S
3.5 4.0 4.5 5.0 3.0 2.5 2.0 1.5 1.0 0.5
1
Press the Esc button to increase
the RGB interval that is applied to
switches to the selected output by
a half second per button push.
Input buttons 1 through 10 display the selected output's RGB delay.
Each lit input button indicates half a second of delay.
In this example, the green input buttons display 5.0 seconds of RGB interval.
= Unlit button = Lit green button
Figure 3-40 — Adjust the RGB delay interval
