52
52 | Handling Paper and Other Media
2. Remove the spacer by holding the outer edge and pulling straight off the
spindle.

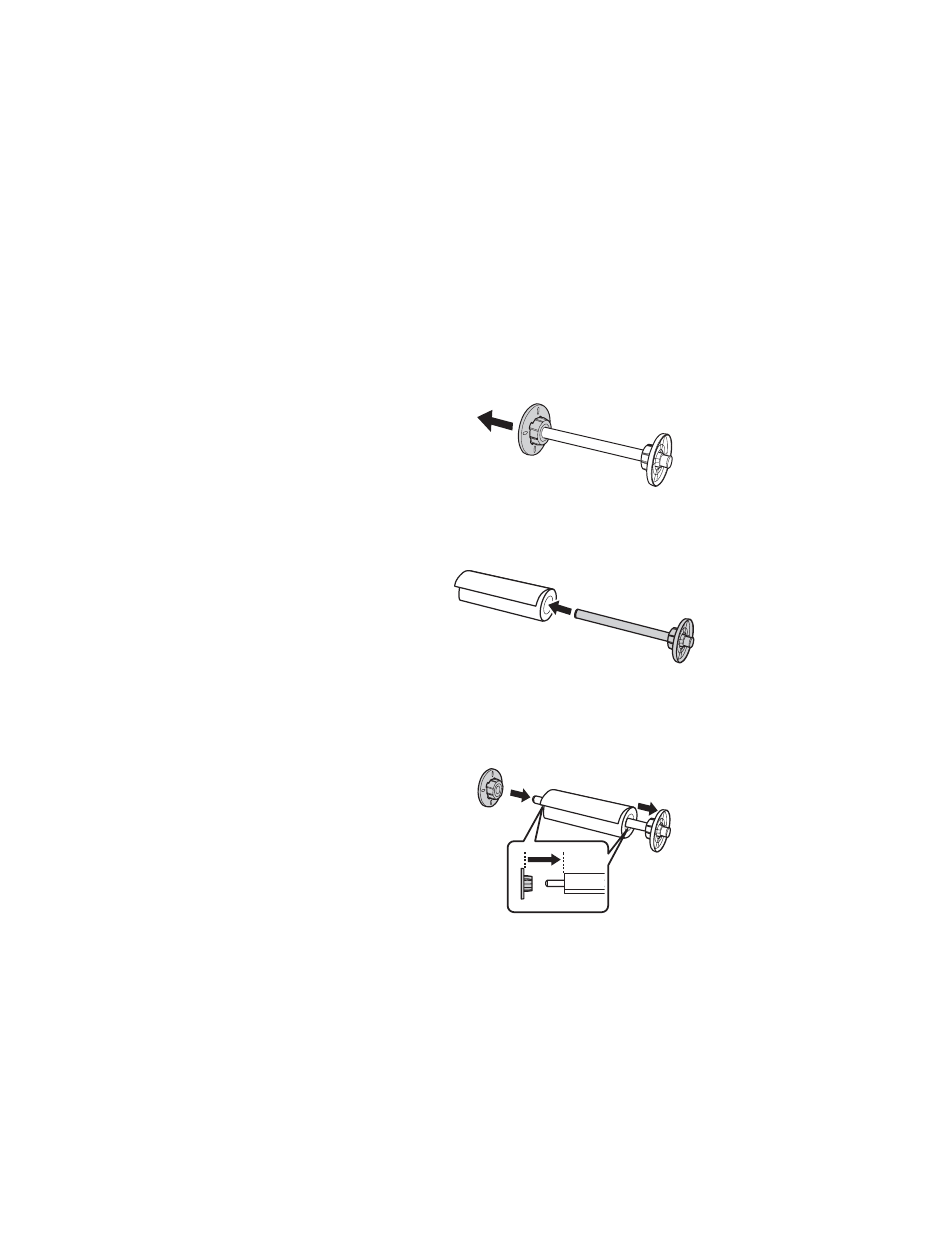

Loading the Paper onto the Spindle
Follow these steps to attach the roll to the spindle:
1. Slide the black paper stop (flange) off the left end of the spindle.
2. Position the roll so the paper unwinds as shown, then slide the spindle
into the paper core.
3. Slide the black paper stop back onto the spindle and insert it into the
end of the roll. Make sure it is firmly fixed into the left end of the paper
roll.
Note: The spindle
accommodates both
2-inch and 3-inch roll
paper cores. To switch
between different size
cores, see page 56.
Avoid touching the
printable surface of
the paper as much as
possible. Oils from
your skin can affect
print quality.
