Retrofit Installation
34
9.0 R
ETROFIT
I
NSTALLATION
9.1 Environmental Installation
Retrofit kits are designed specifically for individual units. Consult
your local Liebert representative for pricing, part numbers and instal-
lation help.
9.1.1 Deluxe System/3
Position the OpenComms card in the low voltage/control cavity of the
Liebert Deluxe System 3 unit. Refer to Figures 10, 11 and 12 for typ-
ical positioning. Use three #8 x 1/2" sheet metal screws to affix mount-
ing plate to the environmental unit.

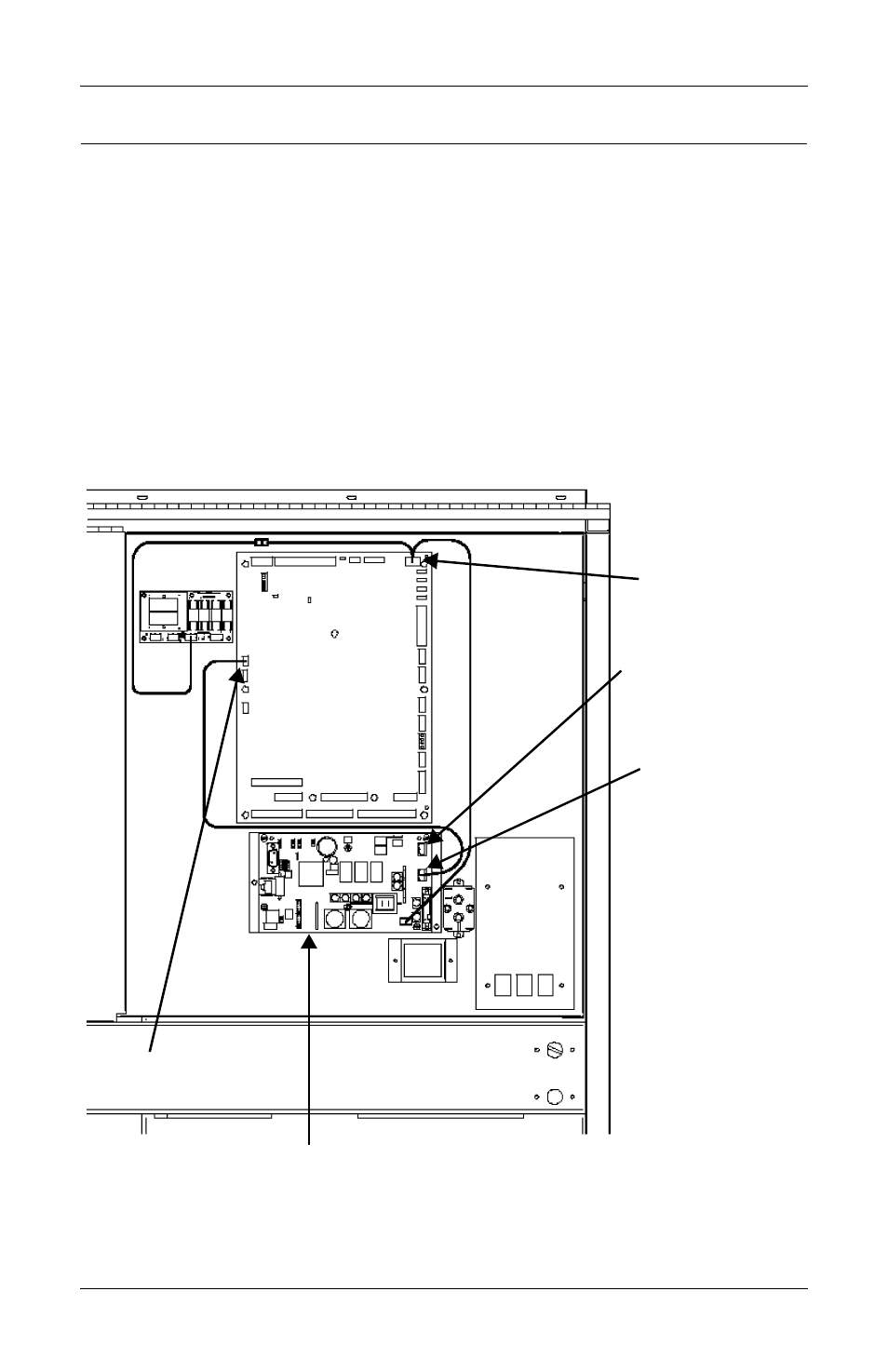

Figure 10 Deluxe System 3 NIC installation
P25
P43
TB1
TB2 - Connects to
screw terminals
77 and 78
(see schematic)
NIC Board
