Firmware Updates
29
7.2 Establishing Communication—Service Terminal
Settings

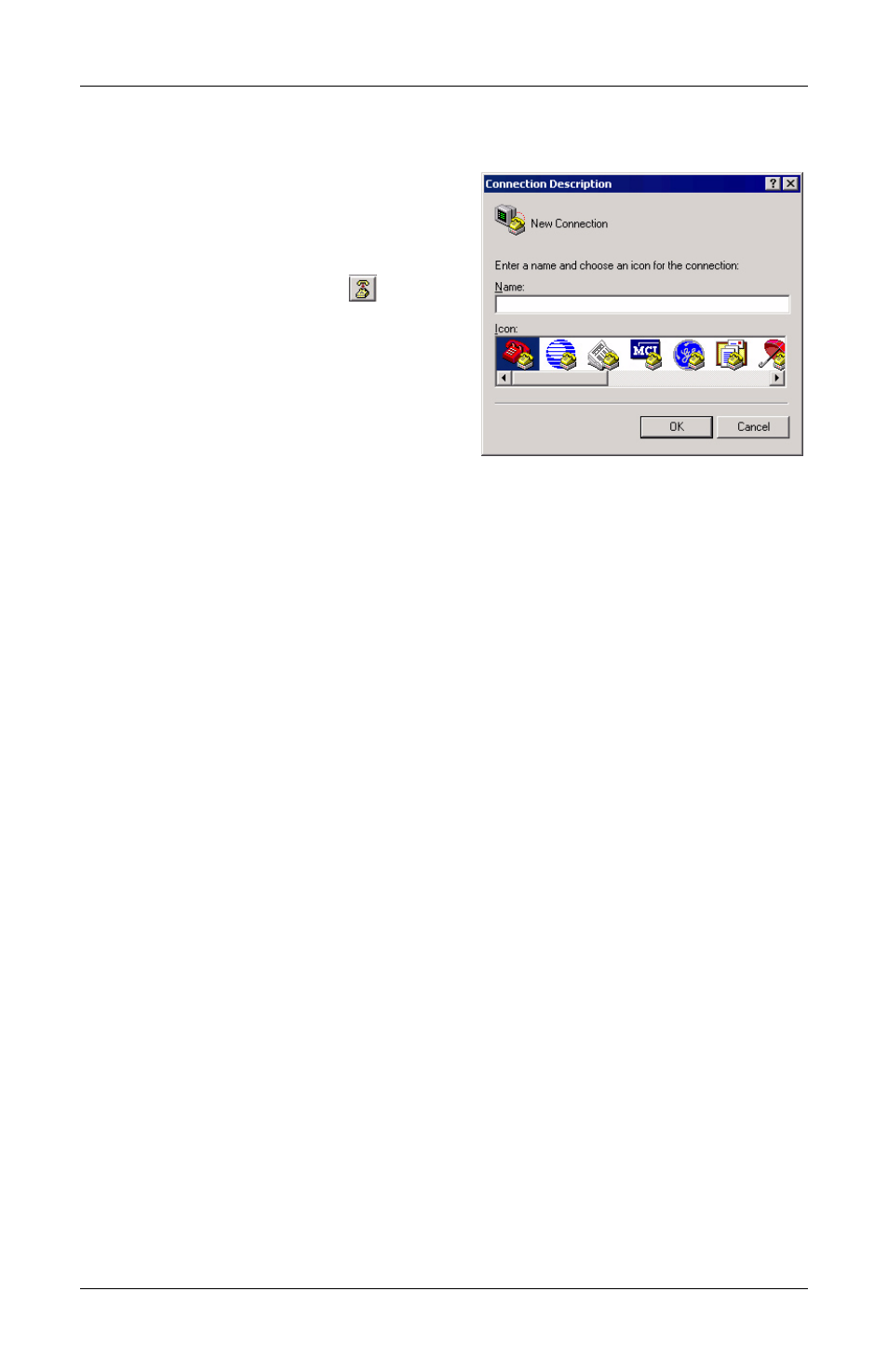

1. Launch HyperTerminal. Once
you see the following screen,
select Cancel.
2. Select the disconnect icon
from the menu bar . This
step ensures that you will be
able to modify the configuration
settings.
3. Go to File > Properties to make
configuration changes. Under
the Connect To setting, choose
the appropriate communications
port for your computer. Generally this is Com 1.
4. Select the Configure button and adjust the terminal
communication settings to:
• Bits per second: 9600
• Data Bits: 8
• Parity: None
• Stop Bit: 1
• Flow Control: None
5. Select OK to close both windows.
