PC NC Maintenance Manual Chapter 8: Fixed File Operations
8-35
disk image from CD. CNC parameters, tool offsets, and work shift data on
the motion control card remain.
Restoring an Image
1. Power OFF the PC NC.

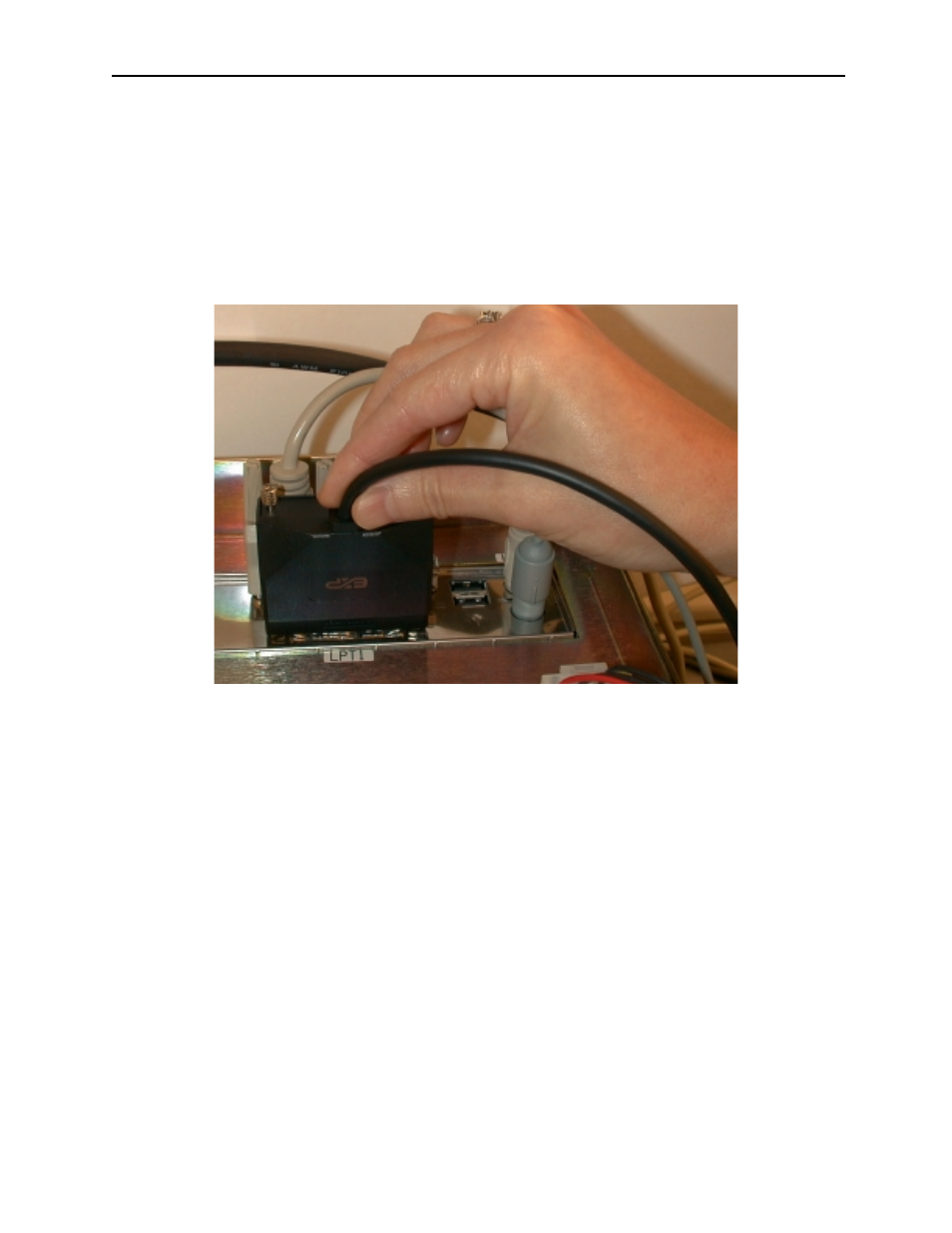

2. Connect the EXP External CD ROM Drive to the PC NC Printer
connector LPT1.
3. Connect the EXP External CD ROM Drive Power adapter to a
120V plug.
4. Power ON the EXP External CD ROM Drive using the switch at
the back of the unit.
5. Insert the Yaskawa PC NC Gold CD into the EXP External CD
ROM Drive.
6. Insert the Power Quest Drive Image Version 2.2 with EXP Exter-
nal CD ROM Driver floppy disk into the PC NC floppy disk drive
unit.
7. Power ON the PC NC.
8. To boot-up from floppy disk, follow the procedure below.
• When the Boot-up BIOS screen appears, press the DEL or Delete
key from the keyboard to enter the BIOS Setup screen.
