PC NC Maintenance Manual

The VS-626M5

4-140

(4)

Control Constant Display Mode

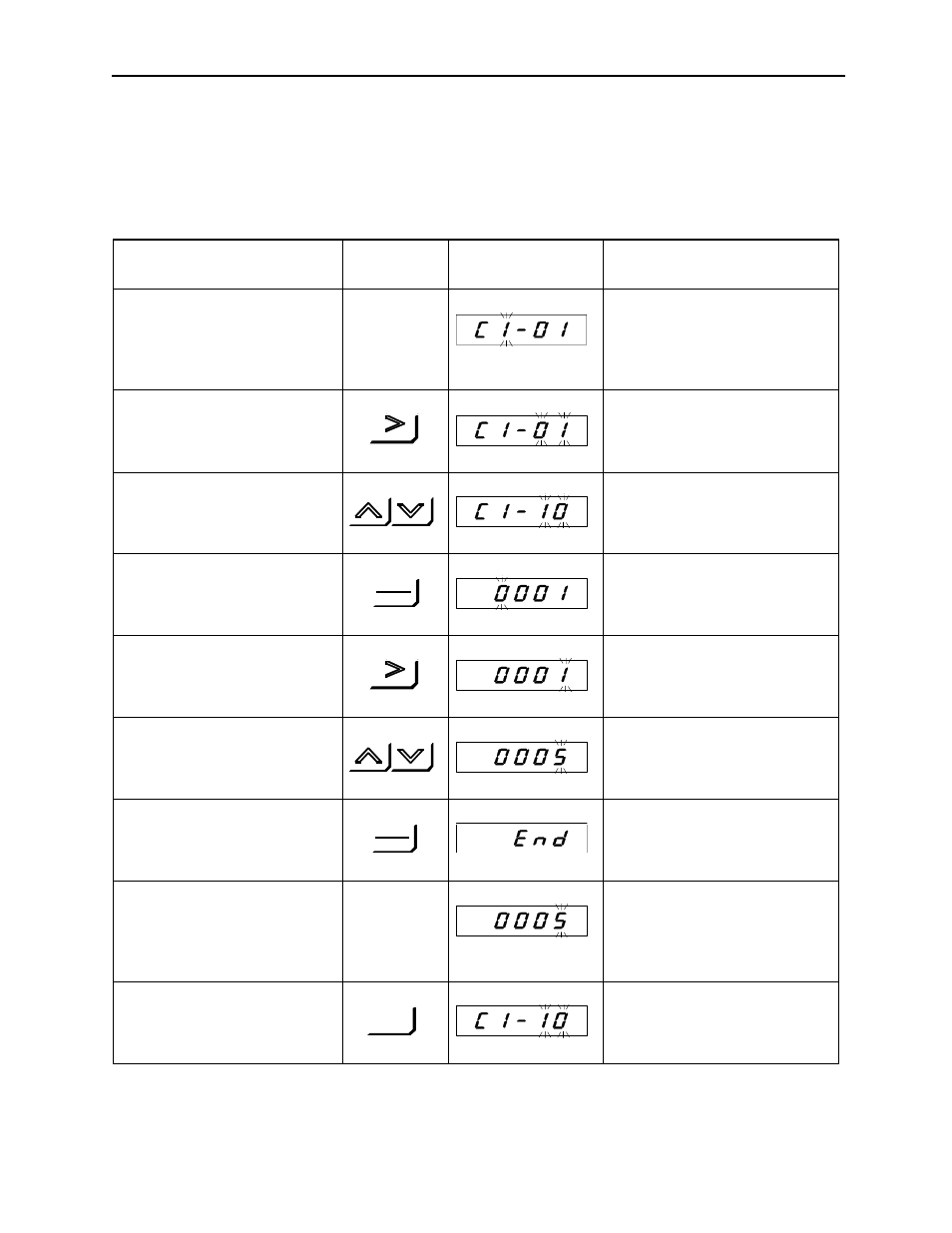

To check data or set/change a constant in the control constant dis-
play mode, follow the example below, in which C1-10 (soft-start
time) is to be changed.

Description

Key

Sequence

Digital Operator

Display

Remarks

C1-01 is displayed.

—

Move blinking cursor to the data
number.

Depress the [>] key once more
to return the blinking cursor.

Select C1-10.

—

Display C1-10 data contents.

—

Select data line to be changed.

—

Change set value. (1_¨5)

—

Write-in set value.

Displayed for 0.5 seconds *

—

Returns to previous display
before write-in.

Return to control constant num-
ber display.

—

RESET

DATA

ENTER

RESET

DATA

ENTER

DSPL
