PC NC Maintenance Manual The VS-626M5
4-138

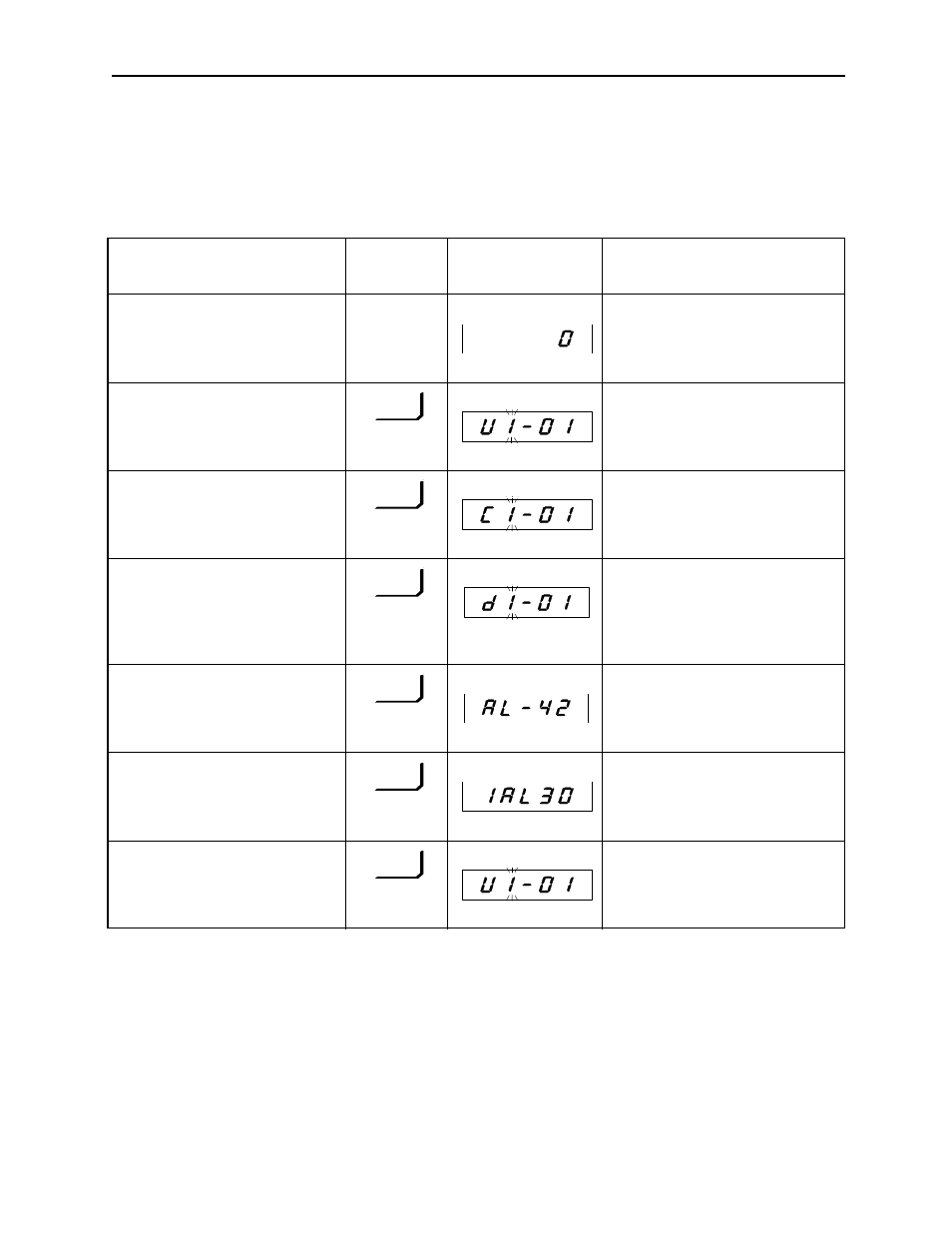

(2) Switching Display Functions
Depress the DSPL key on the digital operator to change the mode
of display.
Description
Key
Sequence
Digital Operator
Display
Remarks
Motor speed (U1-01) data is
displayed. — —
Motor speed data number is
displayed. (Operation status
display has been selected.) Control signal status of each unit
can be monitored.
Control constants display is
selected. Control constants are displayed/
set.
Digital operator run command
display is selected.
(Displayed when bits 0 and 1 of
control constant C1-37 are set
ON.) Use when operating by digital
operator.
The fault number display is
selected. (It is displayed when
a protective function is acti-
vated.) Contents of currently occurring
fault are displayed.
AL-42 indicates motor thermistor
disconnection is detected.
Fault record display is selected. Contents of past faults are dis-
played.
1AL30 indicates the last fault is
encoder signal disconnection.
Returns to operation status dis-
play. —
DSPL
DSPL
DSPL
( )
DSPL
( )
DSPL
DSPL
