SMA America, LLC

4  Maintenance

Maintenance Manual

SC500HEUS-eng-WH-IUS120411

25

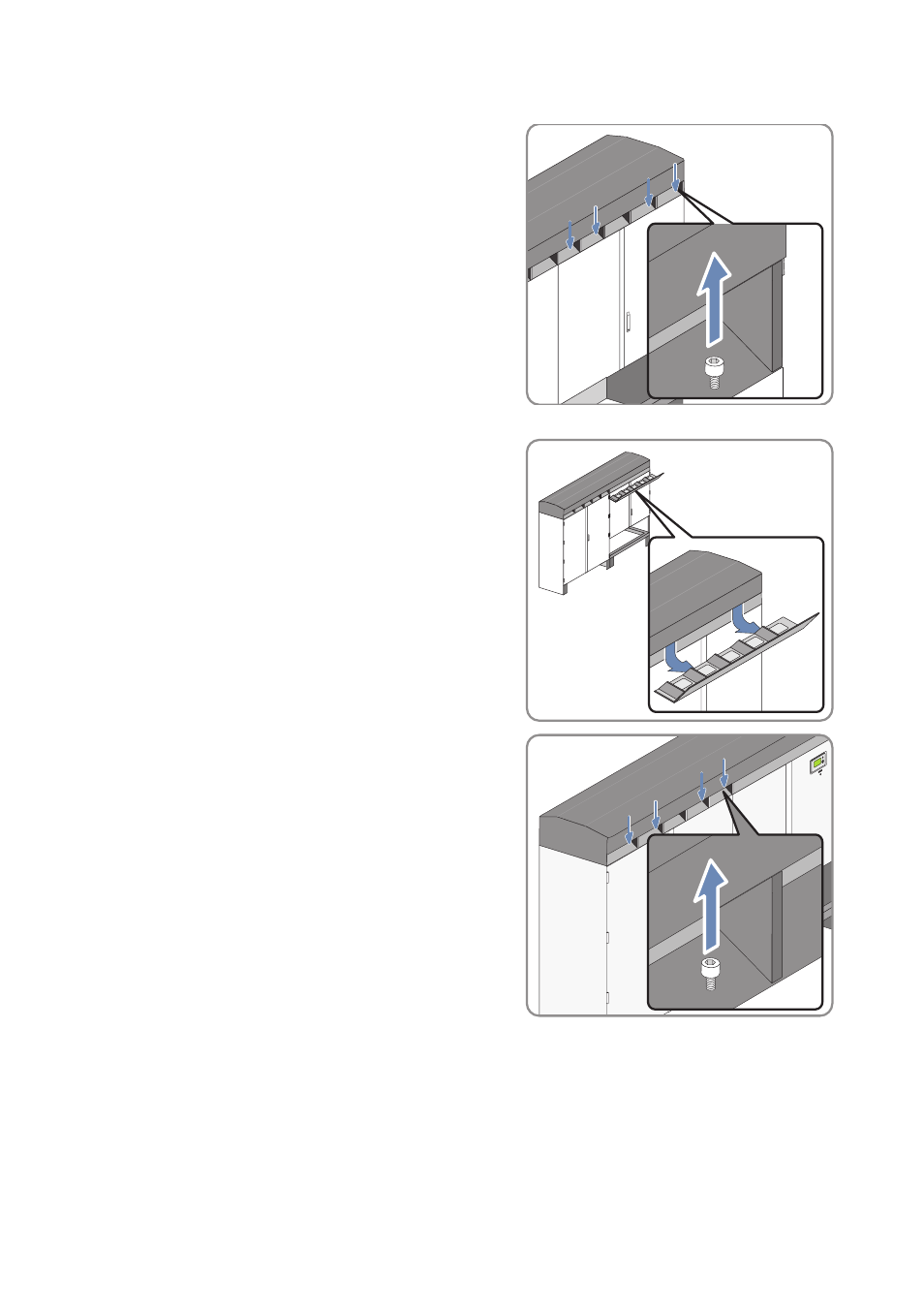

1. Undo the screws on the right-hand insect screen.

2. Pull the bottom of the right-hand insect screen

forward. This removes the insect screen.

3. Undo the screws on the left-hand insect screen.
