SMA MULTICLUSTER BOX 12 - Manual (Page 32)

9 Periodic Actions SMA Solar Technology AG
32 MC-BOX-12-3-20-BE-en-10 Operating Manual
9.3.2 Inserting Data Cables

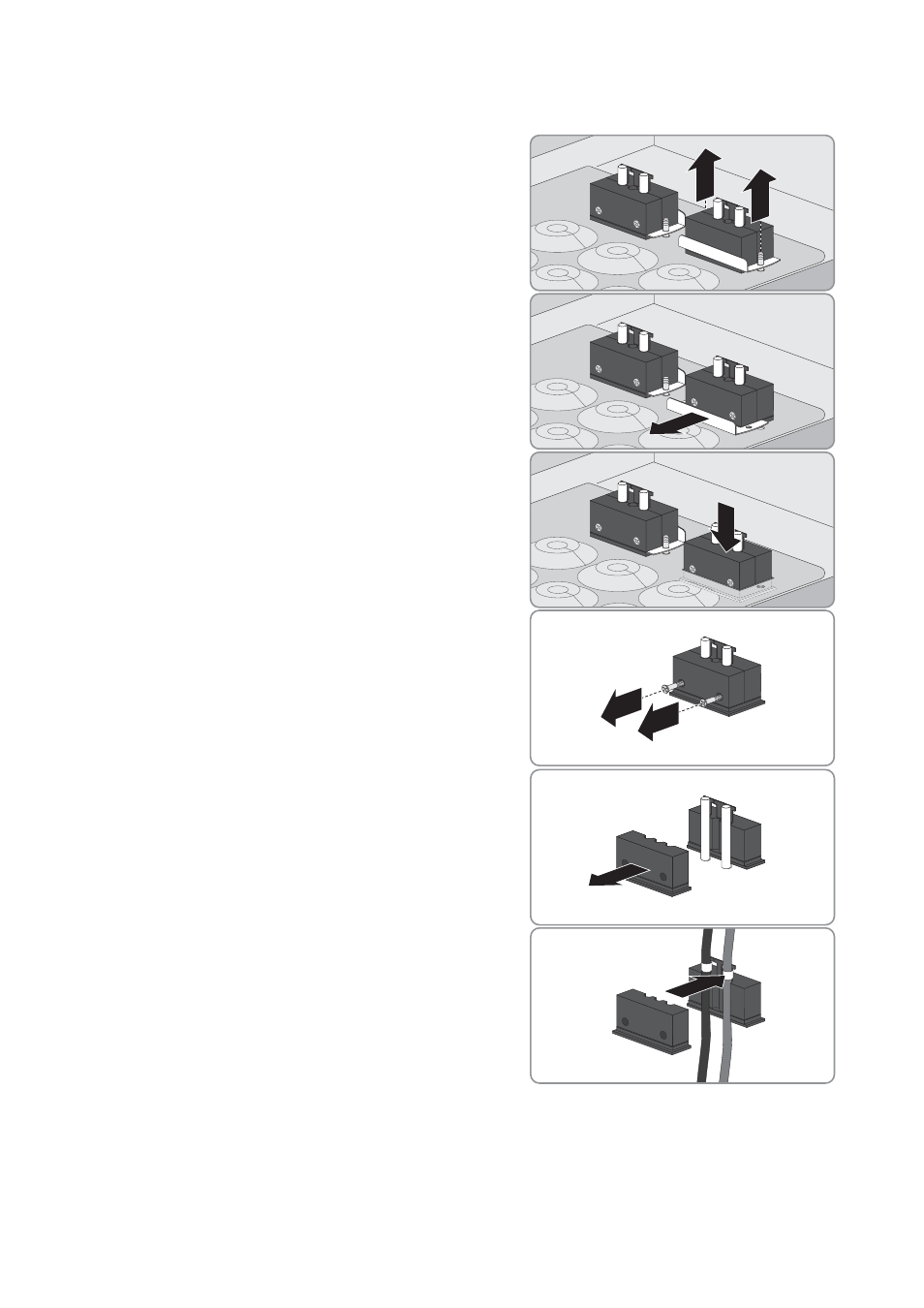

1. Release the screws of the mounting plate of the two-part cable
feed-through inside the Multicluster Box.
2. Remove the mounting plate and set it aside.
3. Remove the cable feed-through from the enclosure.
4. Loosen the screws of the two-part cable feed-through.
5. Remove the half without the T-shaped fastening pieces.
6. Lay the data cables for communication, control and measuring
signals into the half with the T-shaped fastening pieces, and secure
with cable ties. Ensure sufficient cable length from the cable
feed-through to the desired connection point.
