460
1
1
.1 Gr
aphics (A
dv
anced Gr
aphic F
e
at
ur
es Sof
tw
a
re
Option)

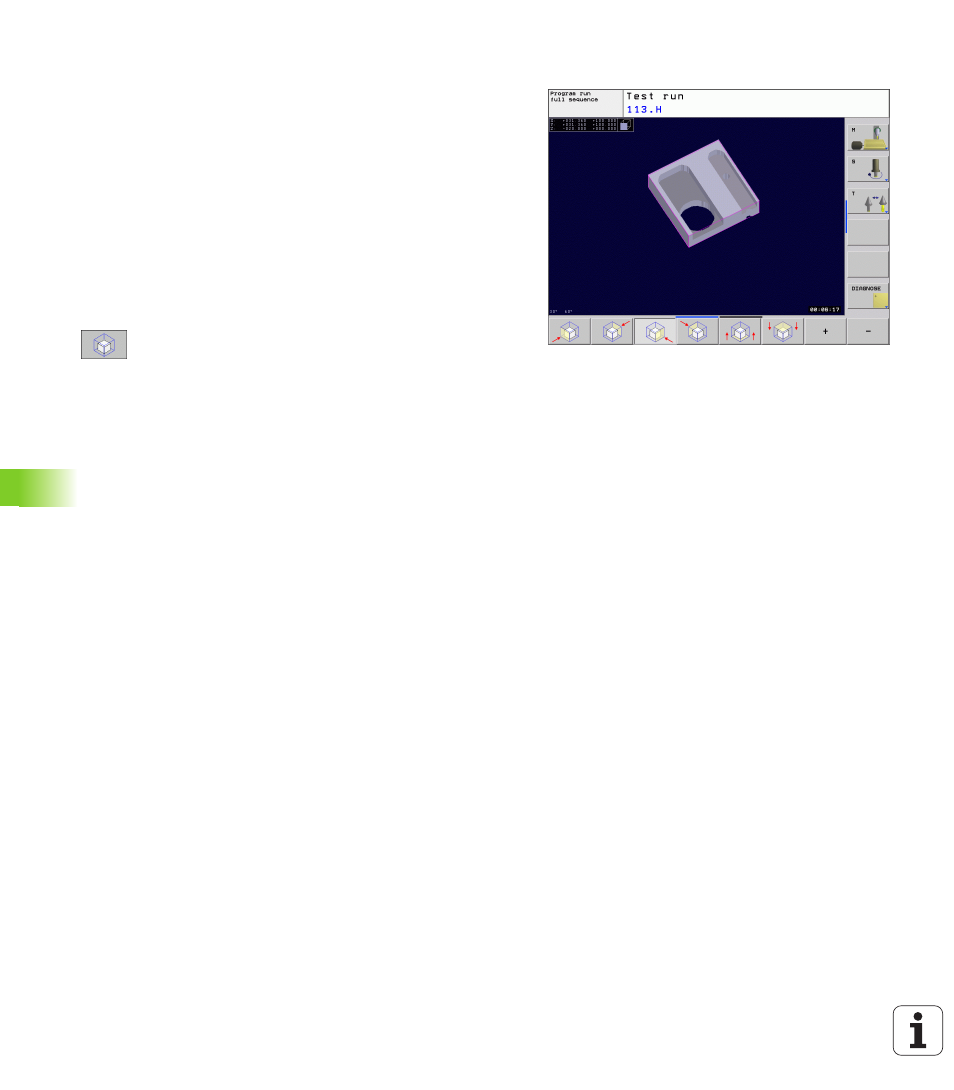

Magnifying details
You can magnify details in the Test Run mode as well as a Program
Run operating mode in the projection in 3 planes and the 3-D display
modes.
The graphic simulation or the program run, respectively, must first
have been stopped. A detail magnification is always effective in all
display modes.
Changing the detail magnification
The soft keys are listed in the table.
 Interrupt the graphic simulation, if necessary.
 Shift the soft-key row in the Test Run mode, or in a Program Run
mode, respectively, until the soft key for detail enlargement
appears.
 Select the functions for section magnification.
 Press the corresponding soft key to select the
workpiece surface (see table below).
 To reduce or magnify the blank form, press and hold
the ZOOM IN or ZOOM OUT soft keys.
 Shift the soft-key row and select the TRANSFER
DETAIL soft key
 Restart the test run or program run by pressing the
START soft key (RESET + START returns the
workpiece blank to its original state).
