165
Definin
g
Mac
hin
ing P
o
sitions

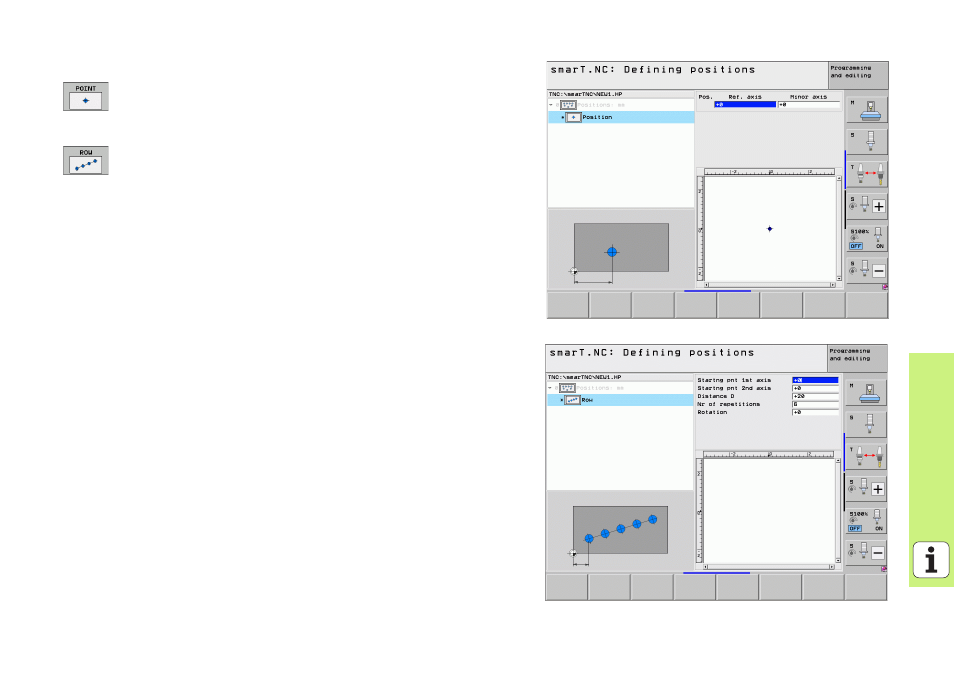

Single point, Cartesian
U X : Coordinate in the reference axis of the working plane
U Y : Coordinate in the minor axis of the working plane
Single row, straight or rotated
U Starting point 1st axis : Coordinate of the starting point of
the row in the reference axis of the working plane
U Starting point 2nd axis : Coordinate of the starting point of
the row in the minor axis of the working plane
U Distance : Distance between the machining positions. You
can enter a positive or negative value.
U Number of positions : Total number of machining positions
U Rotation : Angle of rotation around the entered starting point.
Reference axis: Major axis of the active machining plane
(e.g. X for tool axis Z). You can enter a positive or negative
value.
