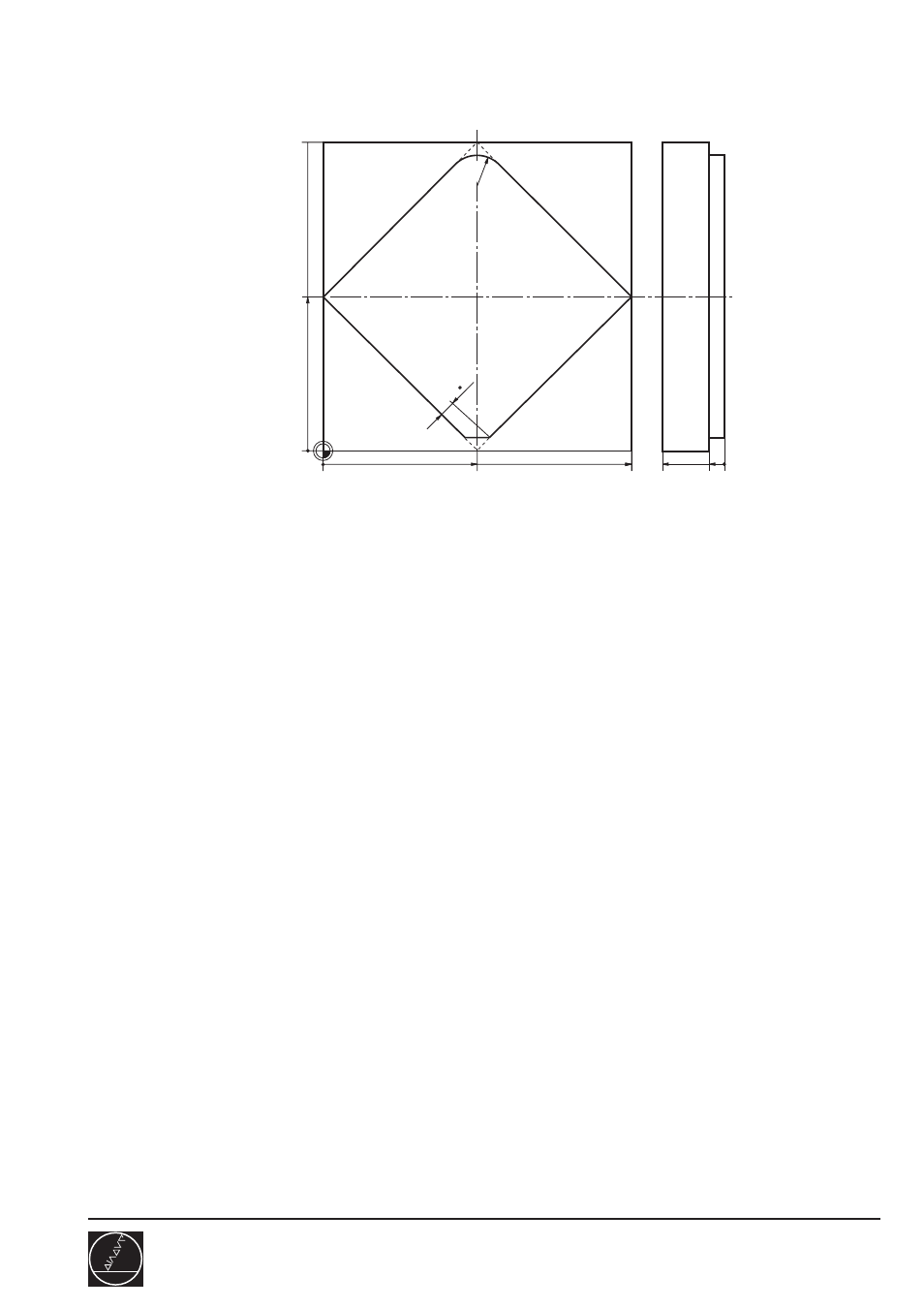

Solution: Rounding / chamfering corners
Complete program
153/2
D02
100
100
0
50
0
50
R10
5 45°
100
20
0 5
0 BEGIN PGM 153 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0 ............................ WORKPIECE BLANK DEFINITION
3 TOOL DEF 1 L+0 R+8 ............................................... DEFINE TOOL
4 TOOL CALL 1 Z S4000 ............................................. CALL TOOL DATA
5 L Z+100 R0 F MAX ................................................... CLEARANCE HEIGHT
6 L X-30 Y+50 R0 F MAX ............................................ AUXILIARY POINT (R0)
7 L Z-5 R0 F MAX M3
8 L X+0 Y+50 RL F200 ................................................ CONTOUT STARTING POINT RL
9 L X+50 Y+100
10 RND R10 .................................................................. ROUND CORNERS
11 L X+100 Y+50
12 L X+50 Y+0
13 CHF 5 ........................................................................ CHAMFER
14 L X+0 Y+50 RL
15 L X-30 R0 M5 ........................................................... AUXILIARY POINT (RO)
16 L Z+100 R0 F MAX M2 ............................................ PGM END
17 END PGM 153 MM
