HEIDENHAIN
Basic course G3/Upgrade course

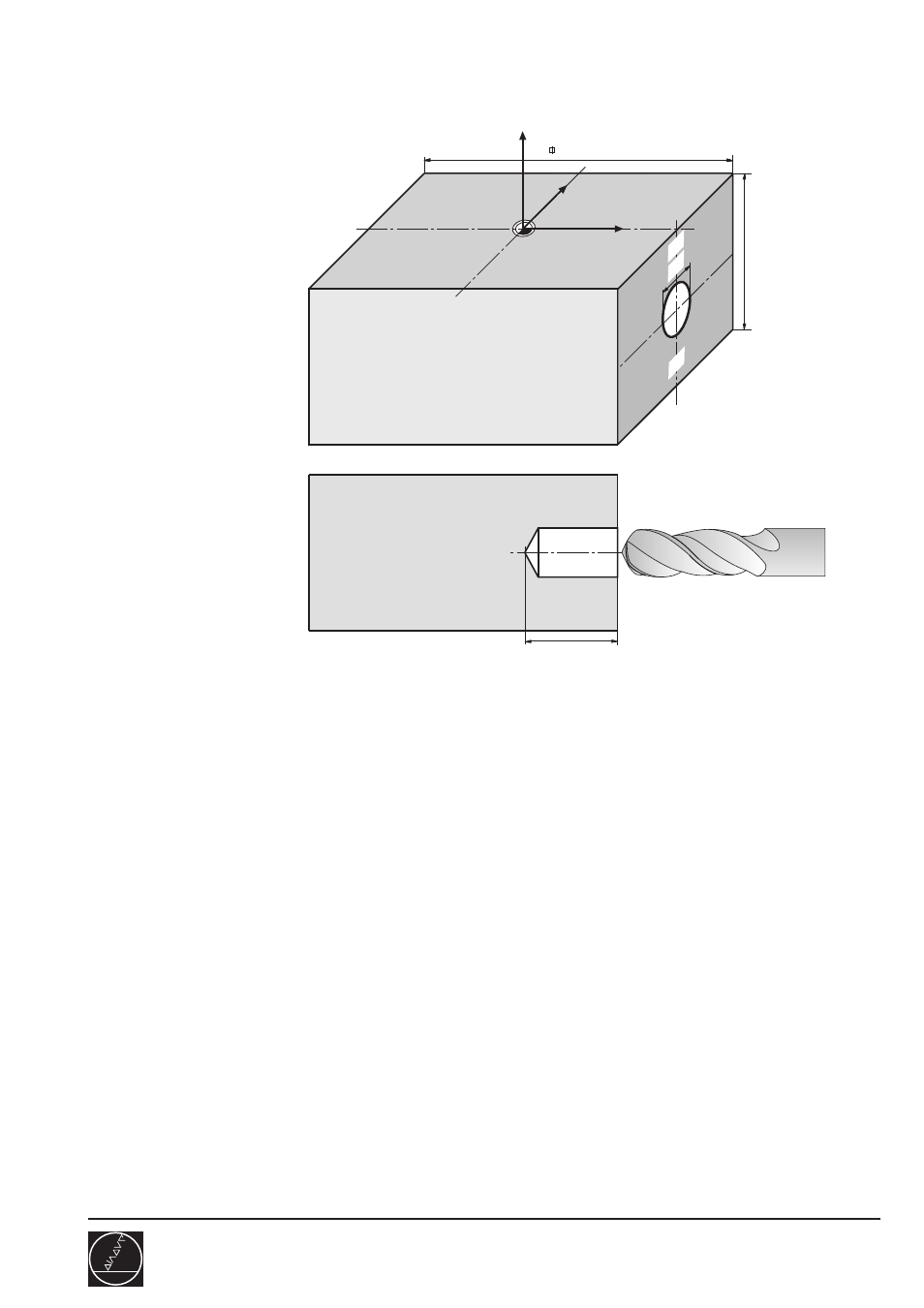

Solution: Tilt working plane
S286/2
C03
0 BEGIN PGM 286 MM
1 BLK FORM 0.1 Z X-50 Y-50 Z-40
2 BLK FORM 0.2 X+50 Y+50 Z+0
3 TOOL CALL 19 Z S4000 ........................................... CALL TOOL DATA, L ABSOLUTE
IN TOOL TABLE!
4 CYCL DEF 1.0 PECKING .......................................... DEFINE CYCLE
5 CYCL DEF 1.1 SET UP +2
6 CYCL DEF 1.2 DEPTH -20
7 CYCL DEF 1.3 PECKG -5
8 CYCL DEF 1.4 DWELL 0
9 CYCL DEF 1.5 F400
10 L Z+100 R0 F MAX ................................................... RETRACT TOOL AXIS
11 L X+150 R0 F MAX .................................................. PRE-POSITIONING
12 CYCL DEF 7.0 DATUM SHIFT
13 CYCL DEF 7.1 X+50 ................................................. ZERO POINT ON RIGHT EDGE
14 L B+90 R0 F MAX .................................................... TILT HEAD (MOVE)
15 CYCL DEF 19.0 WORKING PLANE
16 CYCL DEF 19.1 B+90 ................................................ TILT HEAD (CALCULATE)
17 L X+25 Y+0 R0 F MAX M3 ....................................... MOVE TO DRILLING POSITION
18 L Z+2 R0 F MAX M99 .............................................. Z-CLEARANCE, CALL CYCLE 1
19 CYCL DEF 19.0 WORKING PLANE
20 CYCL DEF 19.1 B+0 .................................................. TILT RESET
21 CYCL DEF 7.0 DATUM SHIFT
22 CYCL DEF 7.1 X+0
23 L Z+100 R0 F MAX M5 ............................................ RETRACT TOOL
24 L B+0 R0 F MAX M30 .............................................. TILT HEAD BACK
25 END PGM 286 MM
Complete program
100
16
A
B
50
100
30
+X
+Z
+Y
