Basic course G3/Upgrade course

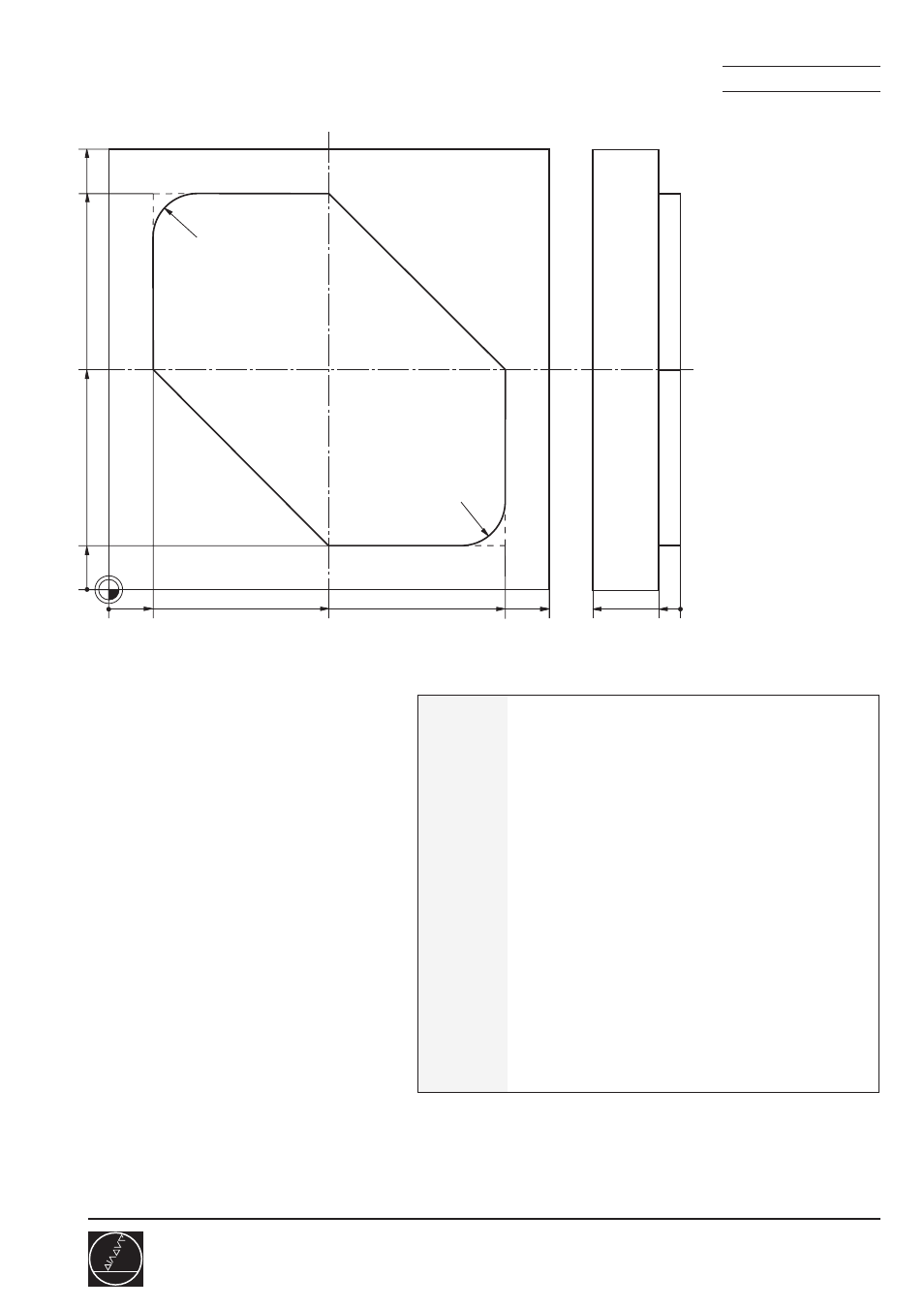

Task: Program(s): Rounding corners
D02
154/1
Begin program
Define workpiece blank
Define tool
Call tool data
Move to clearance height
Auxiliary point anfahren
Plunging depth
Approach tangentially
Contour
Depart tangentially
Retract tool, PGM end
BEGIN PGM . . . MM
BLK-FORM 0.1 . . . X . . . Y . . . Z . . .
BLK-FORM 0.2 X . . . Y . . . Z . . .
TOOL DEF . . . L . . . R . . .
TOOL CALL . . . . . . S . . .
L Z . . .
L X . . . Y . . .
L Z . . .
APPR . . .
L . . .
DEP . . .
L Z . . .
100
100
0
50
0
10 90
10
90
R10
R10
50
100
20
0 5
