Basic course G3/Upgrade course

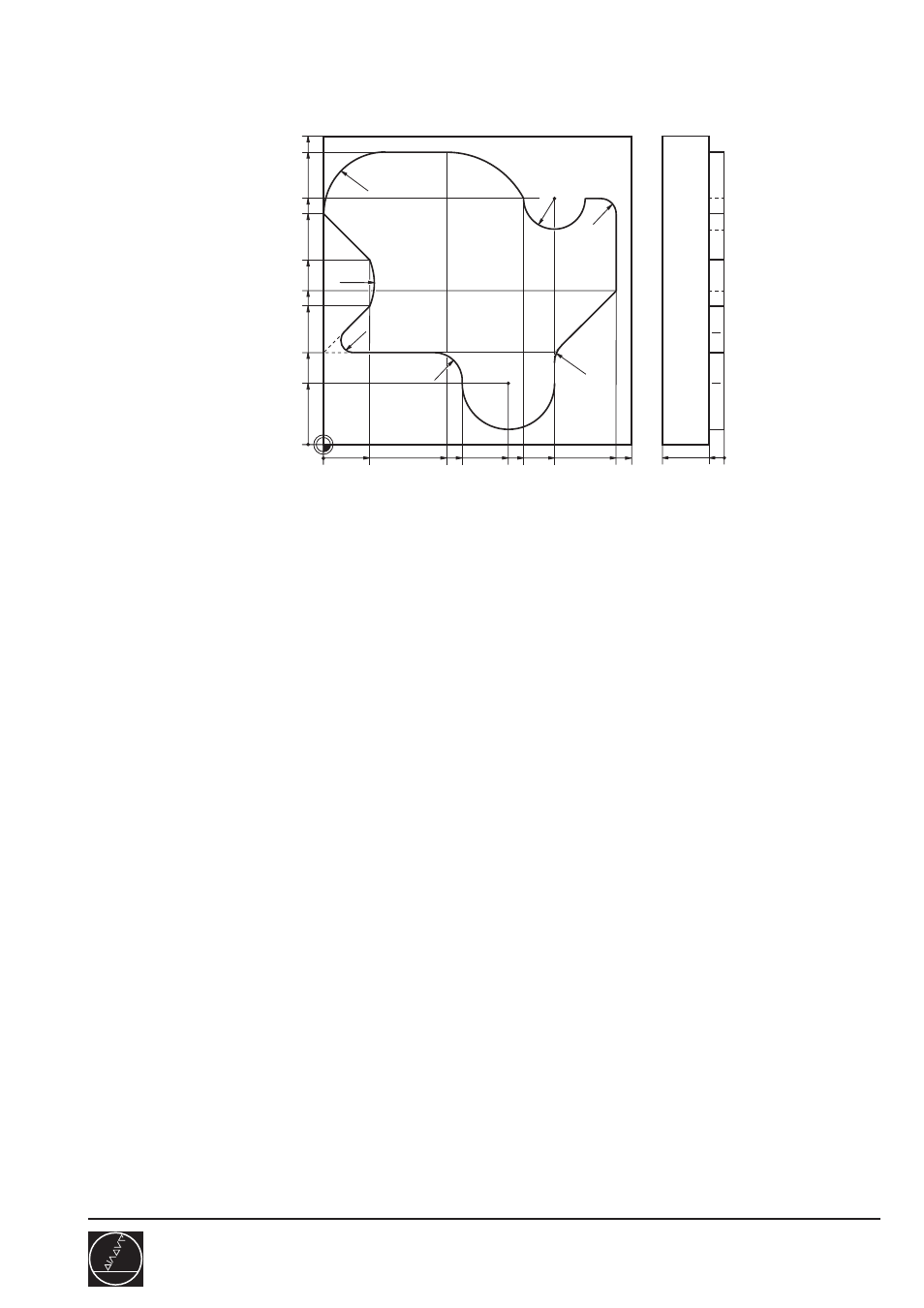

Solution: Circular movements
251/2
D02
100
100
0
60
0
60
20
0
30
15
R8
5
40 45 75 95
20
45
75
80
95
R9
R4
R10
R5
50
R20
R20
65
Complete program 0 BEGIN PGM 251 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 7 Z S2500 ............................................. R4
4 L Z+100 R0 F9999
5 L X+20 Y-20 .............................................................. AUXILIARY POINT (R0)
6 L Z+2 M3
7 L Z-5 F500
8 APPR LCT X+20 Y+30 R3 RL F300 .......................... CONTOUR STARTING POINT
9 L X+0
(APPROACH TANGENTIALLY)
10 RND R4
11 L X+15 Y+45
12 CR X+15 Y+60 R+20 DR+
13 L X+0 Y+75
14 CR X+20 Y+95 R+20 DR-
15 L X+40
16 CT X+65 Y+80
17 CC X+75 Y+80
18 C X+85 Y+80 DR+
19 L X+95
20 RND R5
21 L Y+50
22 L X+75 Y+30
23 RND R8
24 L Y+20
25 CC X+60 Y+20
26 C X+45 Y+20 DR-
27 L Y+30
28 RND R9
29 L X+20 ...................................................................... LAST CONTOUR POINT
30 DEP LCT X+20 Y-20 R3 F500 ................................... AUXILIARY POINT (R0)
31 L Z+100 R0 F MAX M2
32 END PGM 251 MM
