Solution:
Basic course G3/Upgrade course

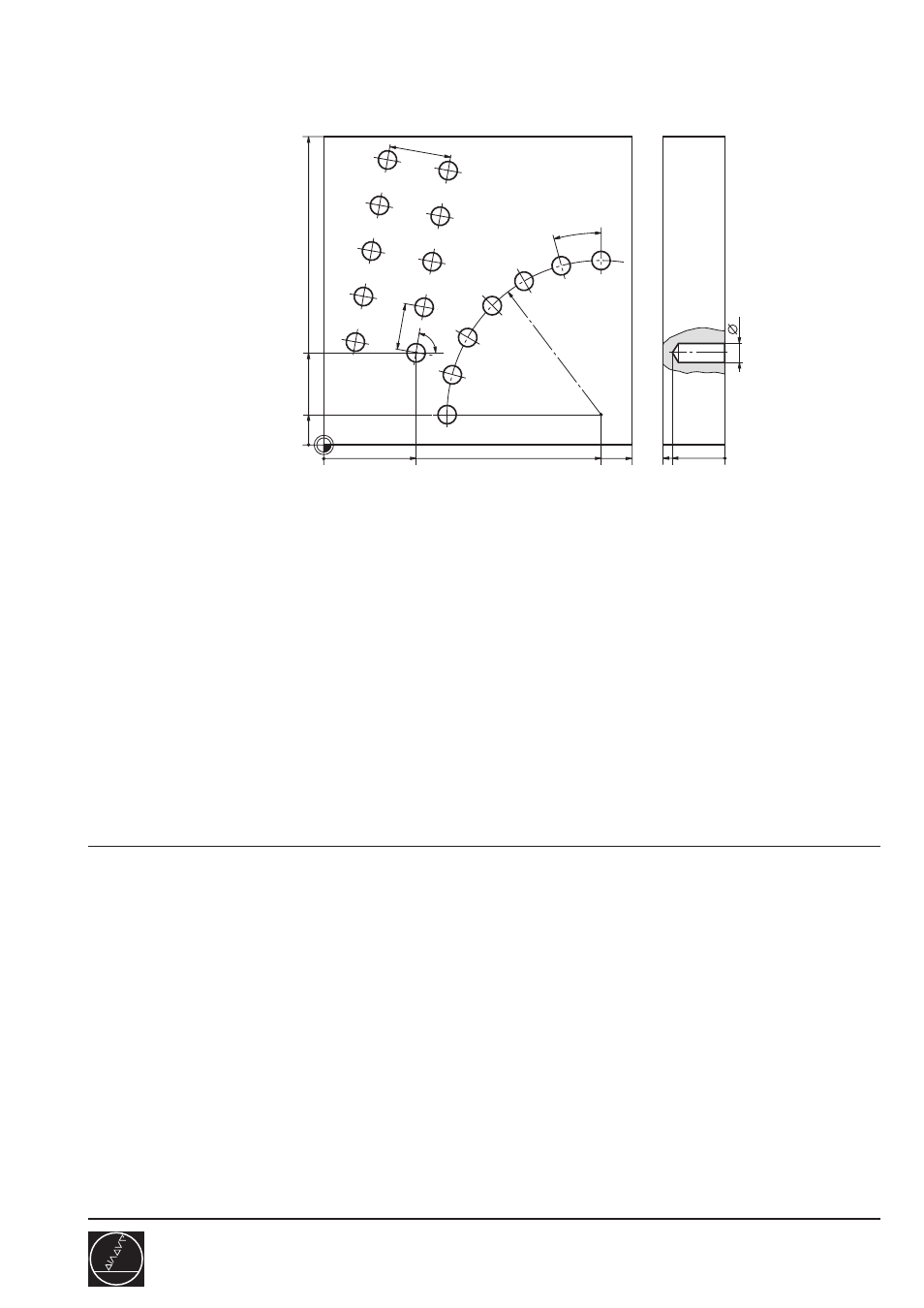

Hole pattern
221/2
D02
Main program
SPGM
Retract tool, end
100
100
0
90
0
30
20
0
10
30 17
20
15 80°
R50
15°
6
0 BEGIN PGM 221 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 6 Z S1500 ............................................. R3
4 L Z+100 R0 F9999 M3
5 CYCL DEF 200 DRILLING
Q200=2 ..................................................................... SET UP CLEARANCE
Q201=-17 .................................................................. DEPTH
Q206=150 ................................................................. FEED RATE FOR PLUNGING
Q202=6 ..................................................................... PLUNGING DEPTH
Q210=0 ..................................................................... DWELL TIME AT TOP
Q203=+0 ................................................................... SURFACE COORDINATE
Q204=2 ..................................................................... 2ND SET UP CLEARANCE
6 CALL LBL 1
7 CALL LBL 2
8 L Z+100 M2
9 LBL 1
10 CYCL DEF 220 POLAR PATTERN
Q216=+90 ................................................................. CENTER IN 1ST AXIS
Q217=+10 ................................................................. CENTER IN 2ND AXIS
Q244=100 ................................................................. PITCH CIRCLE DIA.
Q245=+90 ................................................................. STARTING ANGLE
Q246=+180 ............................................................... STOPPING ANGLE
Q247=15 ................................................................... STEPPING ANGLE
Q241=7 ..................................................................... NR OF REPETITIONS
Q200=2 ..................................................................... SET UP CLEARANCE
Q203=+0 ................................................................... SURFACE COORDINATE
Q204=2 ..................................................................... 2ND SET UP CLEARANCE
11 LBL 0
