Solution:
Basic course G3/Upgrade course

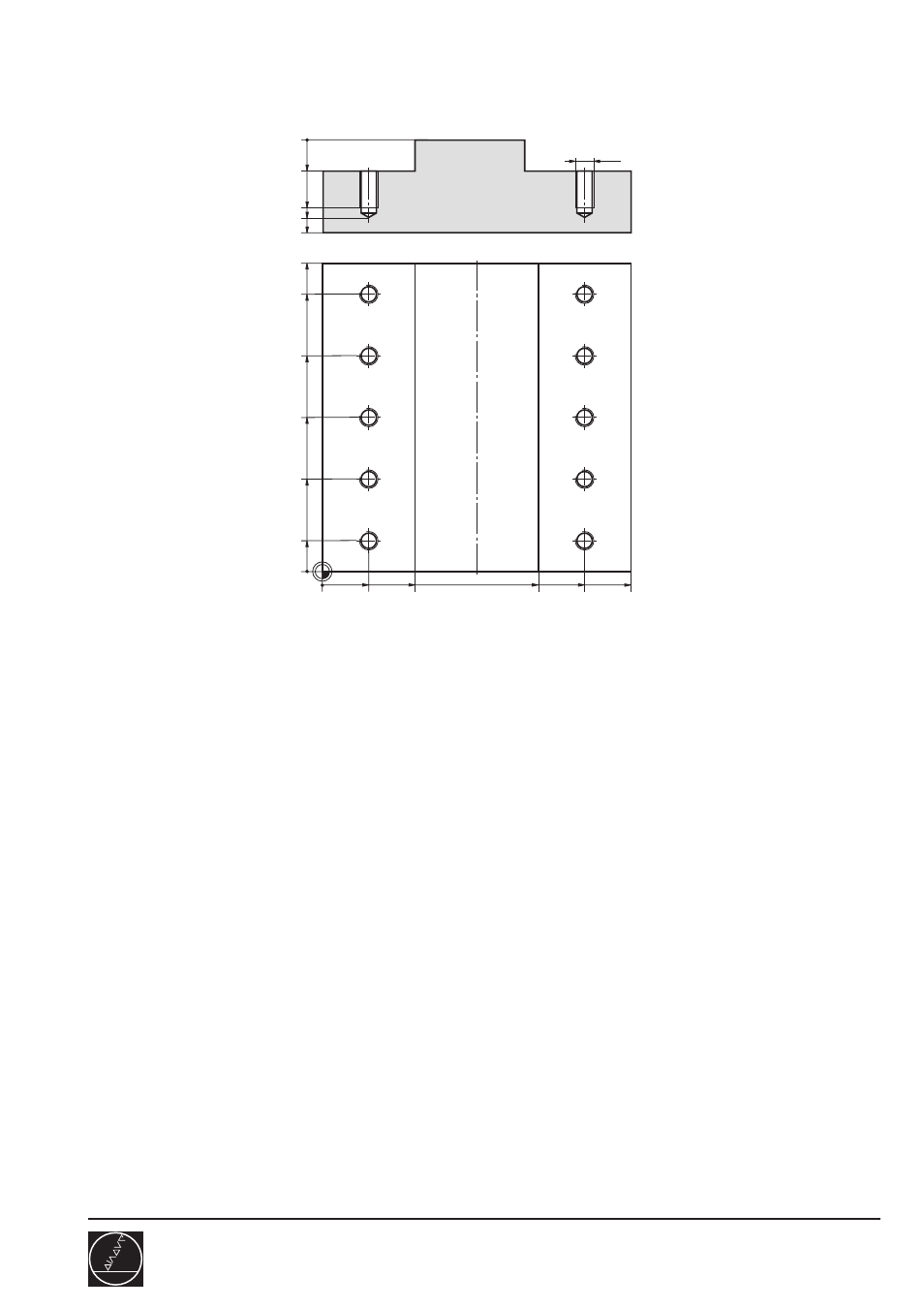

Guide plate
261/2
D02
100
100
0
15
0
30
0
-30
70
90
10
50
85 30 70
-10
-22
-25
M6
0 BEGIN PGM 261 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-30
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 13 Z S500 ............................................. R20
4 L Z+100 R0 F9999
5 L X-50 Y-50
6 L Z+2 M3
7 L Z-10 F200
8 APPR LCT X+30 Y+0 R2 RL
9 L Y+100
10 DEP LCT X+0 Y+150 R2
11 L X+100 F MAX
12 APPR LCT X+70 Y+100 R2 RL
13 L Y+0
14 DEP LCT X+100 Y-50 R2
15 L Z+100 R0 F9999 M6
16 TOOL CALL 4 Z S2000 ............................................. R2,5
17 CYCL DEF 200 DRILLING
Q200=2 ..................................................................... SET UP CLEARANCE
Q201=-3,5 ................................................................. DEPTH
Q206=250 ................................................................. FEED RATE FOR PLUNGING
Q202=3,5 .................................................................. PLUNGING DEPTH
Q210=0 ..................................................................... DWELL TIME AT TOP
Q203=-10 .................................................................. SURFACE COORDINATE
Q204=20 ................................................................... 2ND SET UP CLEARANCE
18 L Z+5 M3
19 CALL LBL 1
20 L Z+100 M6
Main program
