Basic course G3/Upgrade course

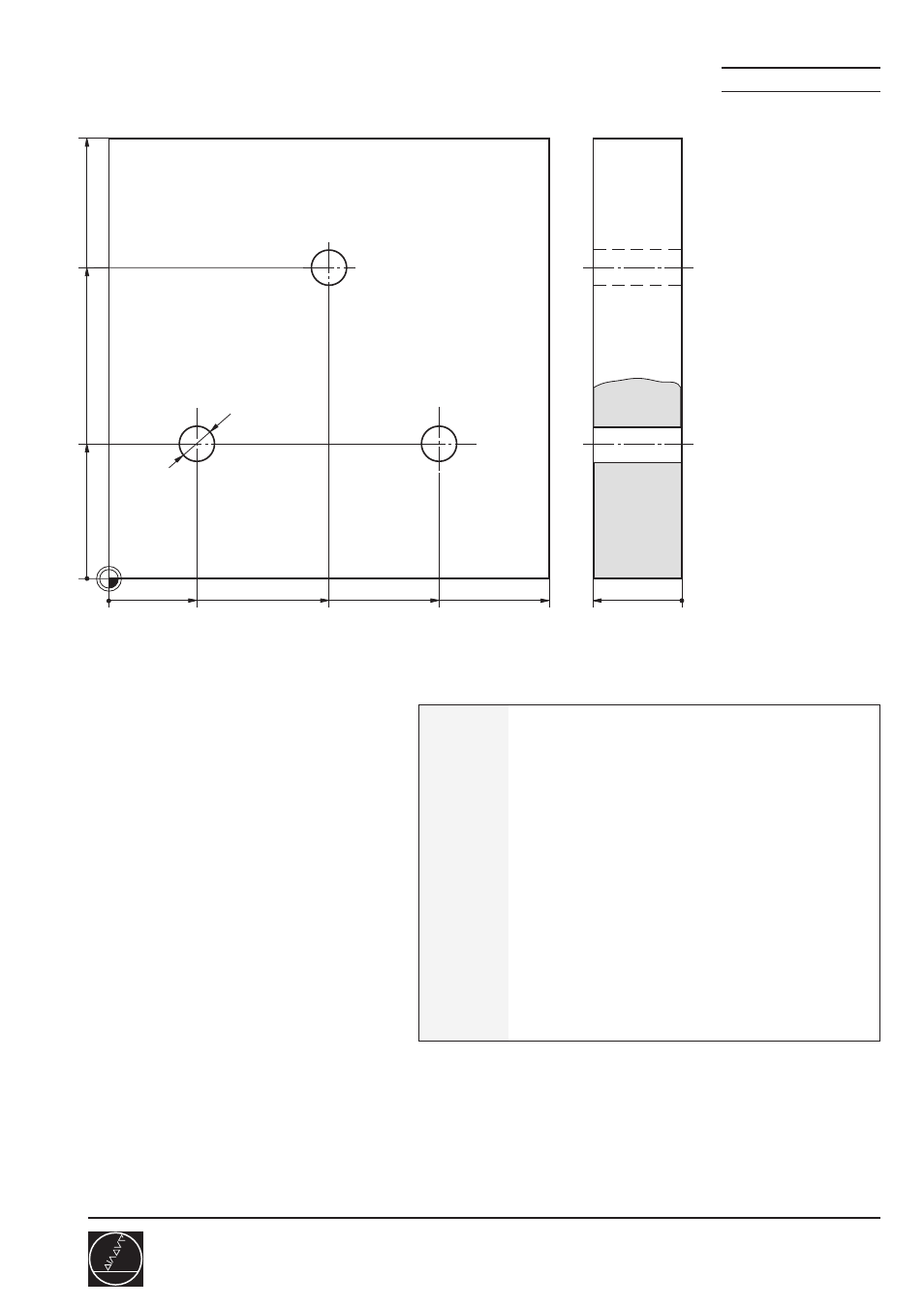

Task: Program(s): Drilling cycle
C01
201/1
Begin program
Define workpiece blank
Call tool data
Define cycle
Move to clearance height
Starting point first hole / call
cycle
Second hole / call cycle
Third hole / call cycle
Retract tool, PGM end
BEGIN PGM . . . MM
BLK-FORM 0.1 . . . X . . . Y . . . Z . . .
BLK-FORM 0.2 X . . . Y . . . Z . . .
TOOL CALL . . . . . . S . . .
CYCL DEF . . .
L Z+ . . .
L X . . . Y . . . M99
L X . . . Y . . . M99
L X . . . Y . . . M99
. . .
100
20
0
100
0
50
0
70
30
20 75
8
