Solution:
Basic course G3/Upgrade course
Hexagon

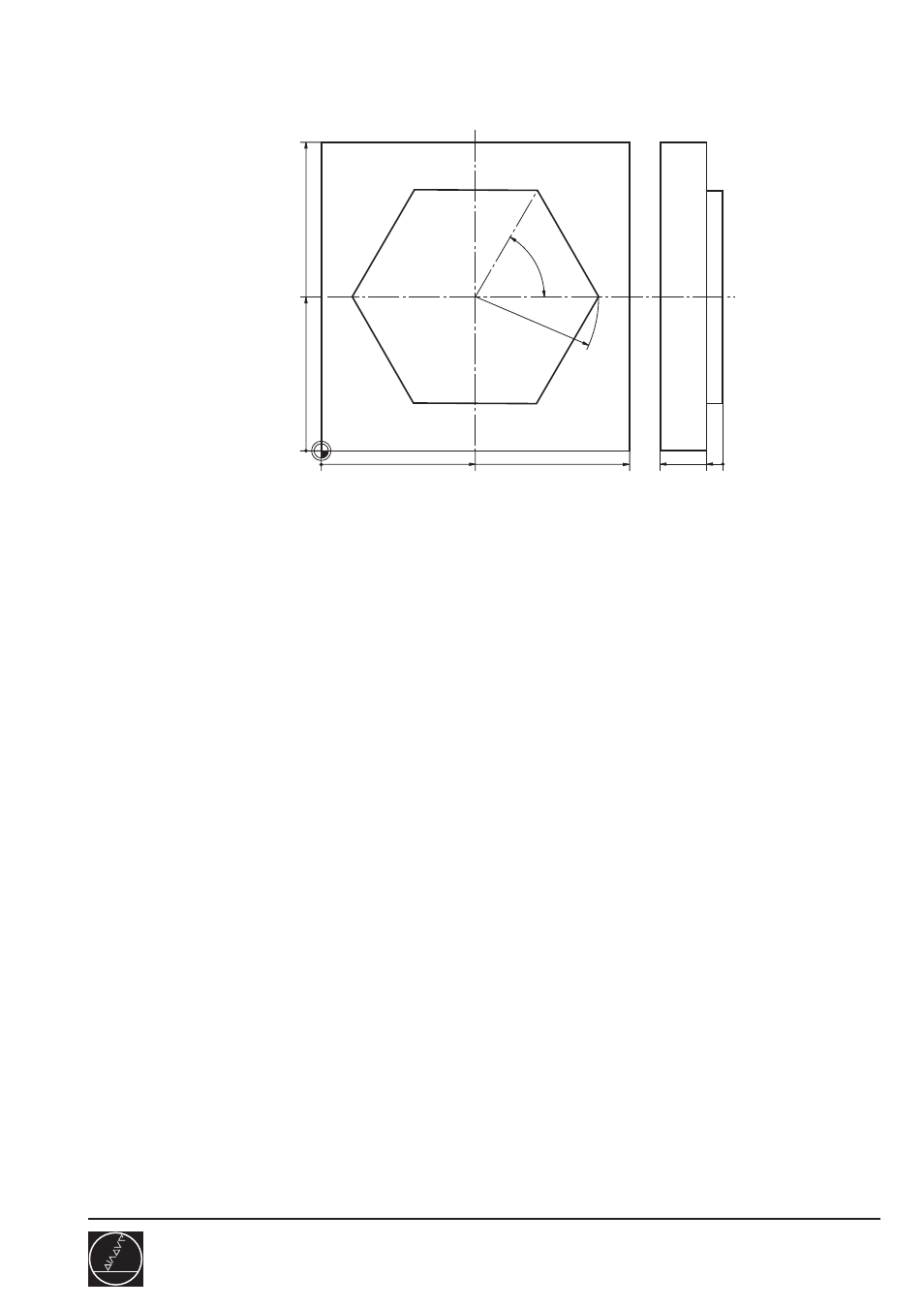

Complete program
268/2
D02
100
100
0
50
0
50
20
0 5
60°
R40
1
2
6 5
3
4
0 BEGIN PGM 268 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 12 Z S500 ............................................. R15
4 L Z+100 R0 F9999
5 CC X+50 Y+50 .......................................................... POLE
6 LP PR+80 PA+0 R0 ................................................... AUXILIARY POINT
7 L Z-5 M3
8 APPR PLCT PR+40 PA+0 R2 RL F100 ...................... STARTING POINT
9 LBL 1 ........................................................................ DEFINE LABEL
10 LP PR+40 IPA-60
11 CALL LBL 1 REP 5/5 ................................................. CALL LABEL WITH REPEATS
12 DEP PLCT PR+80 PA+0 R2 F200 .............................. AUXILIARY POINT
13 L Z+100 R0 F MAX M2
14 END PGM 268 MM
