Basic course G3/Upgrade course

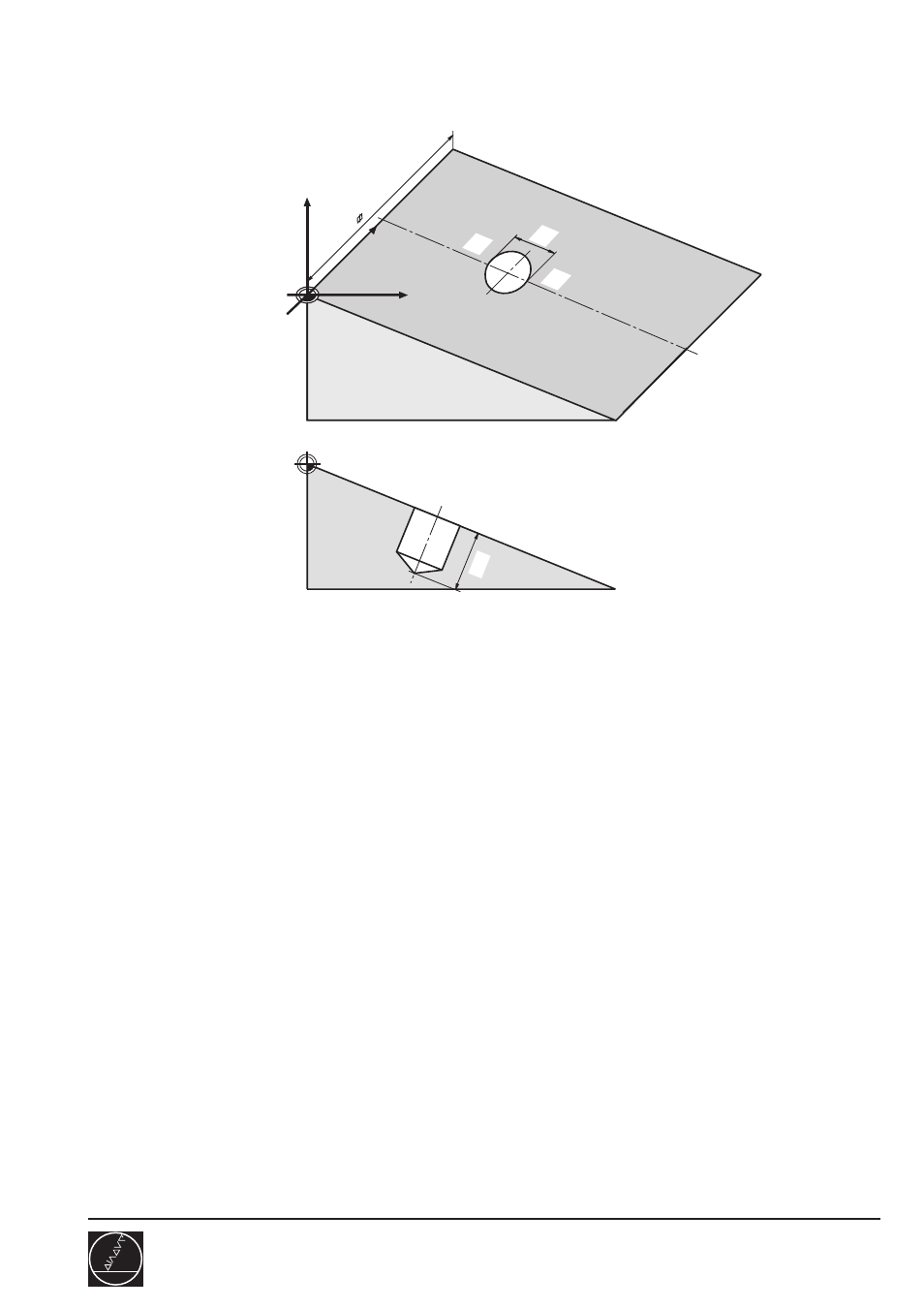

Solution: Tilt working plane
S285/2
C03
Complete program
0 BEGIN PGM 285 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-40
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 19 Z S4000 ........................................... CALL TOOL DATA, L ABSOLUTE
IN TOOL TABLE!
4 CYCL DEF 1.0 PECKING .......................................... DEFINE CYCLE
5 CYCL DEF 1.1 SET UP +2
6 CYCL DEF 1.2 DEPTH -20
7 CYCL DEF 1.3 PECKG-5
8 CYCL DEF 1.4 DWELL 0
9 CYCL DEF 1.5 F400
10 L Z+100 R0 F MAX ................................................... RETRACT TOOL AXIS
11 L X+100 Y+50 R0 F MAX ......................................... PRE-POSITIONING
12 L B+27 R0 F MAX .................................................... TILT HEAD (MOVE)
13 CYCL DEF 19.0 WORKING PLANE
14 CYCL DEF 19.1 B+27 ................................................ TILT HEAD (CALCULATE)
15 L X+50 Y+50 R0 F MAX M3 ..................................... MOVE TO DRILLING POSITION
16 L Z+2 R0 F MAX M99 .............................................. Z-CLEARANCE, CALL CYCLE 1
17 CYCL DEF 19.0 WORKING PLANE
18 CYCL DEF 19.1 B+0 .................................................. TILT RESET
19 L Z+100 R0 F MAX M5 ............................................ RETRACT TOOL
20 L B+0 R0 F MAX M30 .............................................. TILT HEAD BACK
21 END PGM 285 MM
+X
+Z 100
+Y
20
16
A
B
